Project Brief Introduction:

1.Product:Dried Rice Husk Pellet Line

2.Capacity:9-10.5 Ton /Hour

3.TONY Brand 9-10.5  Ton /Hour Dried Rice Husk Pellet Line Project Process

4.Main Machine: TONY Pellet Machine TYJ860-Ⅲ-220KW,Pellets Cooler,Packing Machine And Belt Conveyors

5.Total Power: About 710 kw

6.Need Area: About  ㎡  L: M  W: M  H: M

Project Layout For Customer:

3D图3

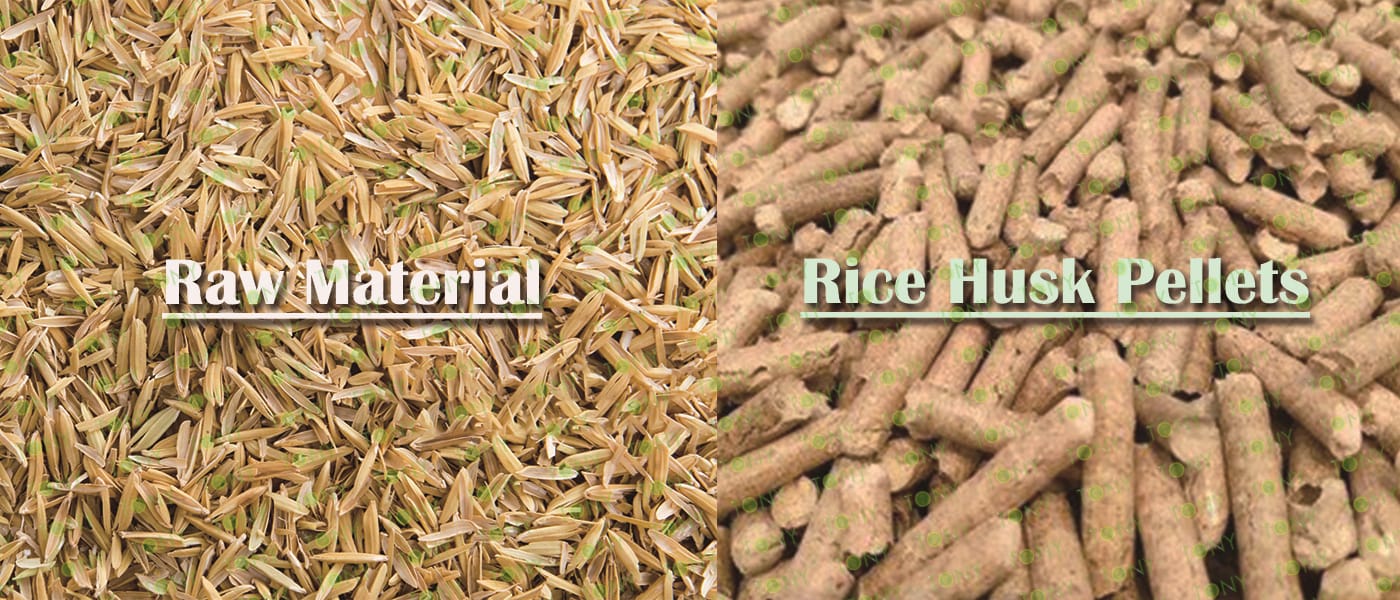

原材料图+颗粒机图片

1. The working principle of dried rice husk biomass pellet processing equipment

The material is shaped by the interaction of extrusion pressure and die friction between the mold and the pressure roller. Dry wood chip processing equipment requires no additives or binders during processing, and it strengthens cell walls and binds cellulose. Lignin is mainly distributed insoluble in any solvent at room temperature, has no melting point, but has a softening point. When the temperature reaches a certain level, lignin softens, increasing its binding force, and under certain pressure, it shapes the material.

2. Characteristics of dried rice husk biomass pellet processing equipment

Dry rice husk pellet processing equipment also boasts numerous energy-saving features. Firstly, it employs highly efficient motors and transmission systems to improve energy utilization efficiency. For example, selecting energy-saving motors with high power factors and low efficiency losses effectively reduces energy consumption. Secondly, by optimizing the process, it achieves energy recycling, reducing energy waste and lowering production costs.

3. Application scenarios of dried rice husk biomass pellet processing equipment

(1) Fossil Fuel Alternative: Processed rice husk pellets have a high calorific value (approximately 3000-4000 kcal/kg) and relatively clean and stable combustion, making them a high-quality biomass solid fuel.

(2) Industrial Boilers: Providing steam or heat to textile mills, food factories, chemical plants, paper mills, etc., replacing coal or natural gas, reducing carbon emissions and energy costs.

(3) Biomass Power Plants: Directly burning biomass as fuel to generate electricity, an important component of renewable energy.

District Heating: Providing fuel for centralized heating facilities in schools, hospitals, and communities.

(4) Residential Heating: Suitable for household biomass pellet stoves, providing clean heating for rural or urban families (especially in rice-producing areas). (5) Biomass Gasification/Liquefaction Feedstock: Rice husk pellets can serve as a high-quality feedstock for more advanced biomass gasification (producing combustible gases) or pyrolysis liquefaction (producing bio-oil), further converting them into clean energy.

2.图片

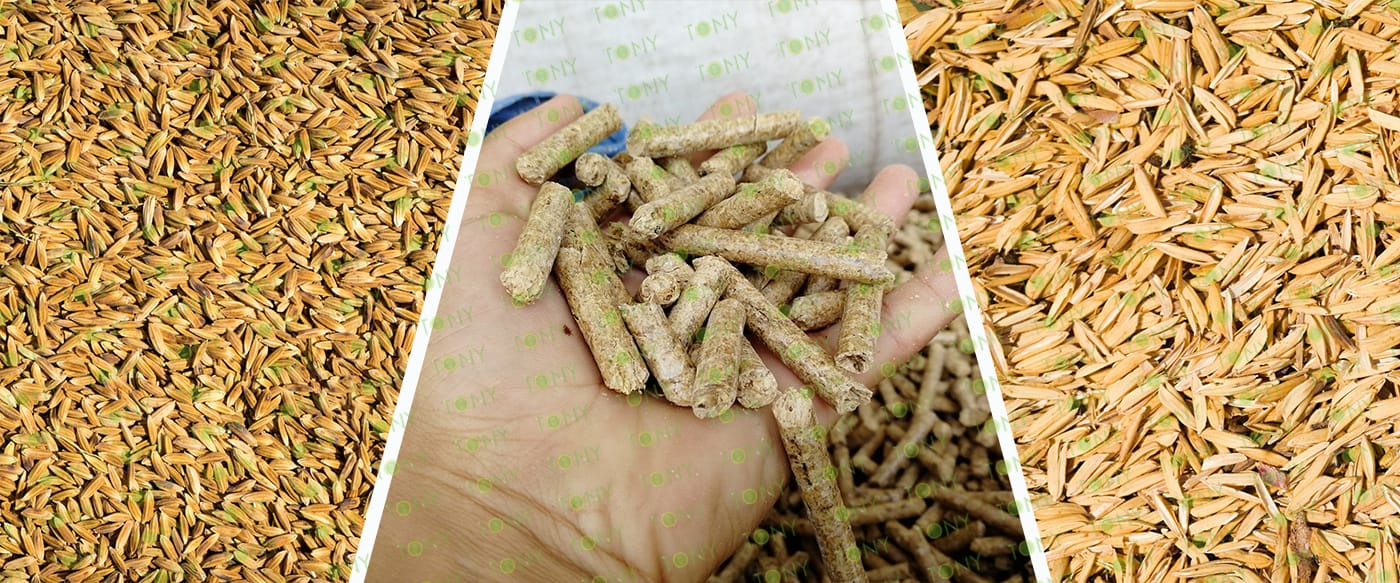

TONY Brand 9-10.5 TPH Dried Rice Husk Pellet Line can process dried rice husk and various biomass materials into biomass pellets. The core of the rice husk biomass pellet production line is to take advantage of the characteristics of rice husks—lightweight, high in silicon, and low in agglomeration—and transform agricultural waste rice husks into standardized biomass fuel through customized pretreatment and pelleting processes. This fuel is widely applicable to rice-growing areas and energy demand scenarios.The core significance of the rice husk biomass pellet production line is to realize the resource utilization, reduction and low-carbon utilization of rice husk waste, which not only solves the problem of agricultural solid waste pollution, but also provides a clean option for energy structure transformation, and has economic, environmental and social value.

1. Capacity: 9-10.5 Ton/Hour

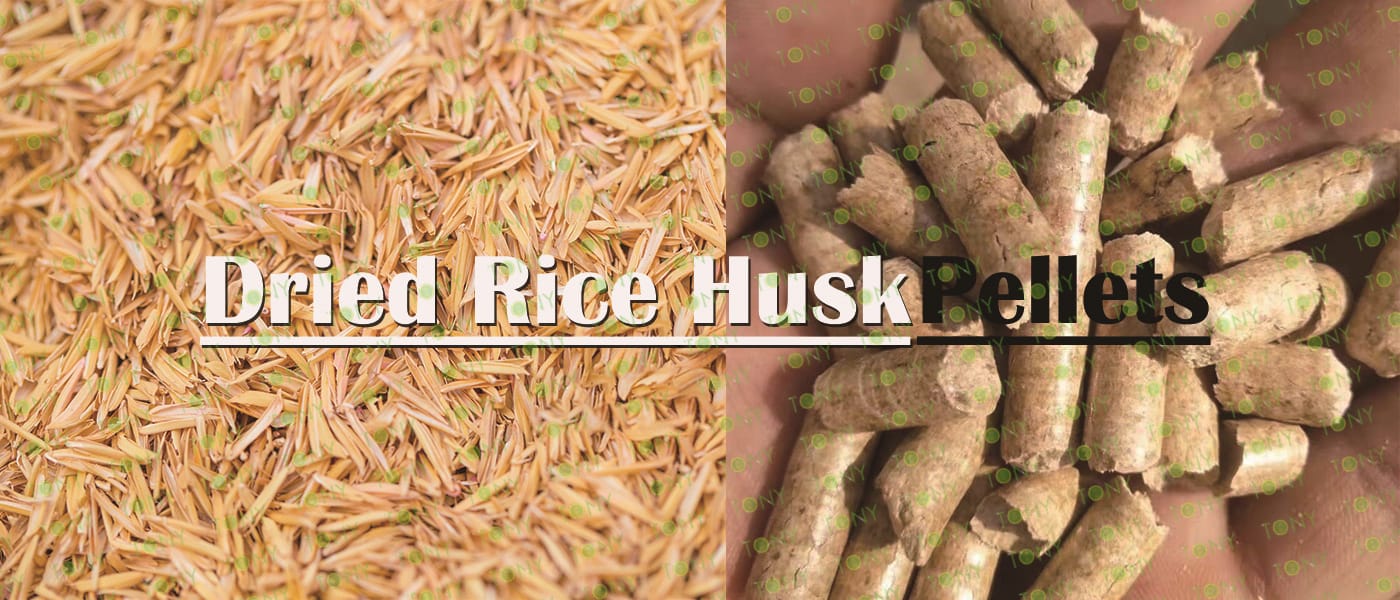

2. Raw materials: Dried rice husk

3. Moisture: About 10-15%

4. Application: All kinds of  biomass materials suitable for pellet production.

Suitable customers: Green energy companies, large farms, private growers and other customers with advantages in  raw materials.

5. Finished Pellets Markets: Large power plants, domestic heating, industrial heating, combustion heat, heating heating, boiler room, school canteen, foundry heat source.

3.图片


1. Project Name: Dried Rice Husk Pellet Production Line

2. Raw Material: Dried rice husk

3. Moisture Content of Raw Material:10-15%

4. Capacity: 9-10.5 TPH

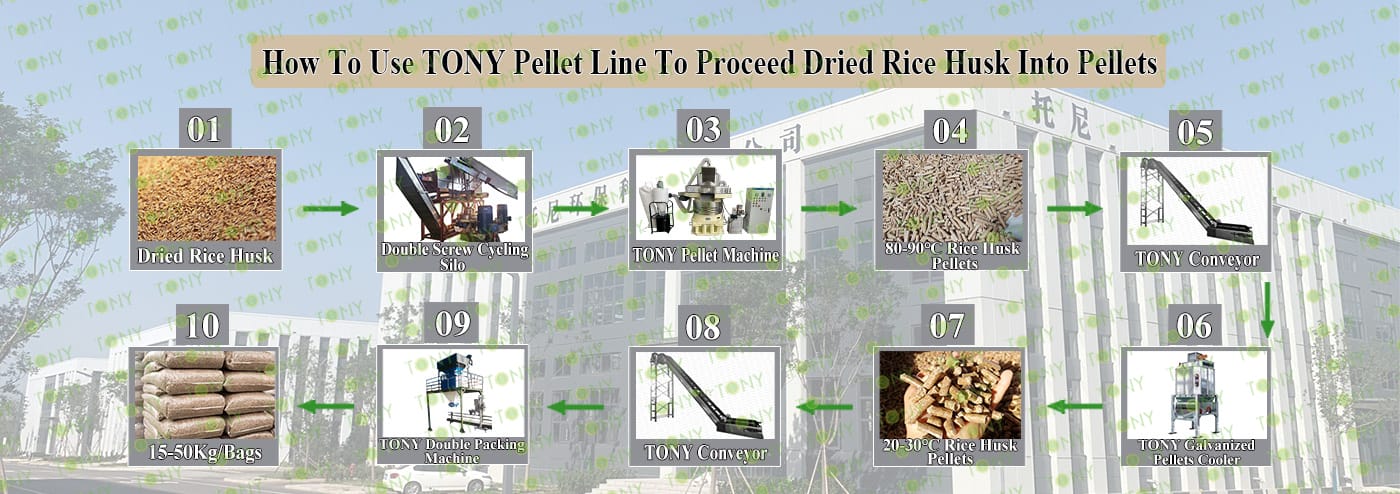

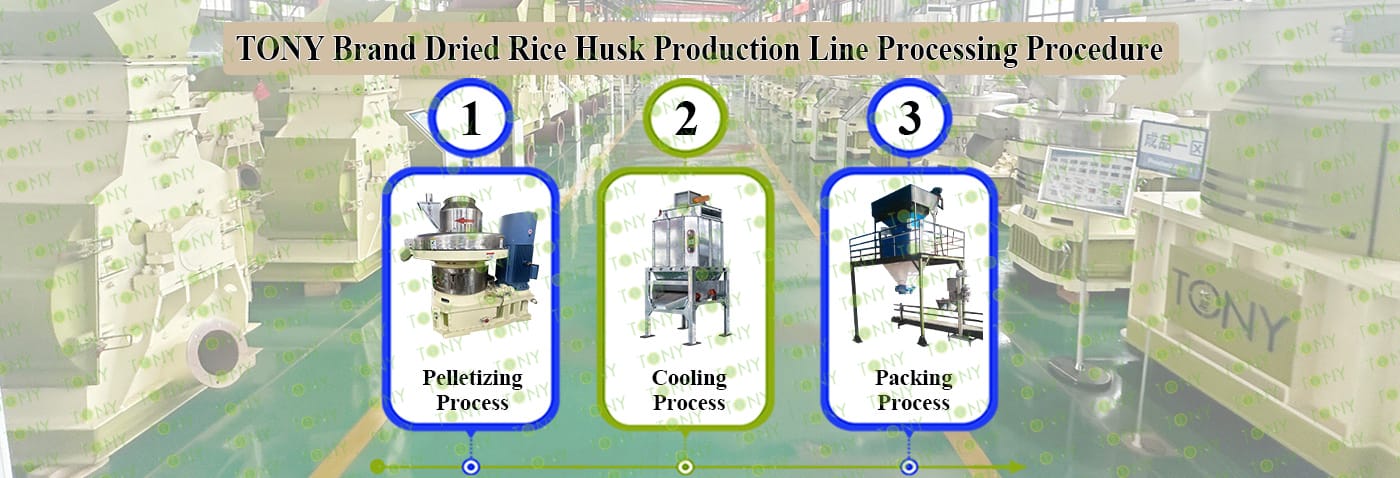

5. Process: Pelletizing Process - Cooling Process - Packing Process

6. Main Equipment: TONY Pellet Machine-TYJ860-III-220kw, Galvanized Pellets Cooler, Double Packing Machine and Belt Conveyors

4.图片

4.图片


5.图片



3D图 图1-长宽

3D图  图2-高

3D图  图3

5.1图片

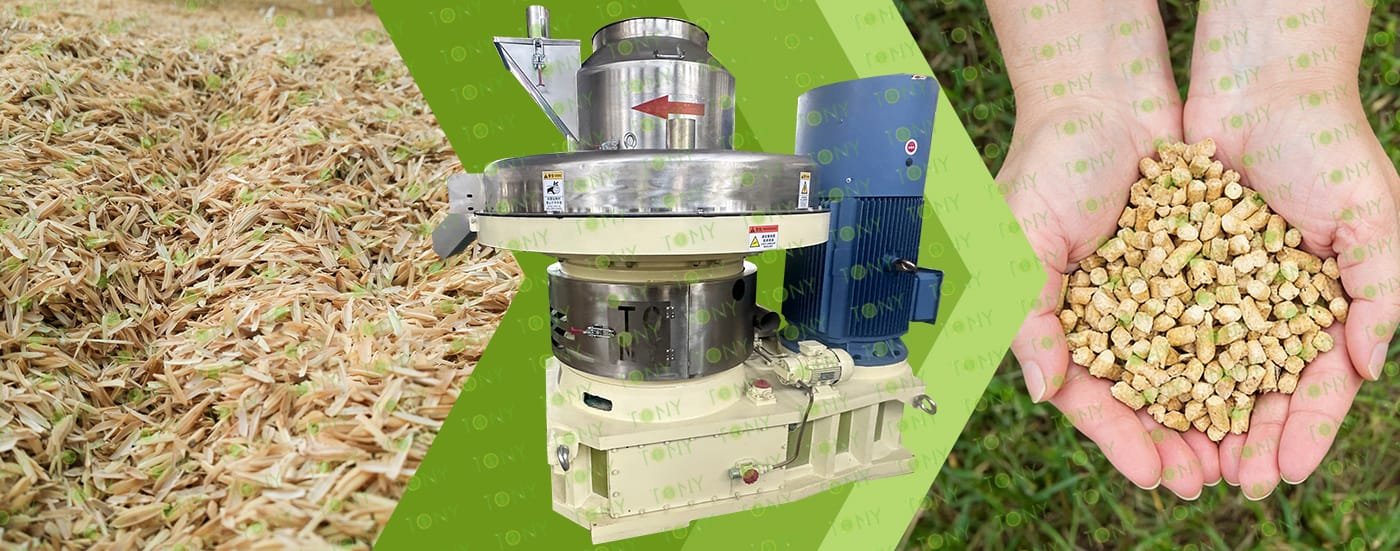

1.Pelletizing Process:

A.This process is mainly used to products pellets with φ6-8mm.

B.TONY brand vertical ring die pellet machine TYJ860-Ⅲ-220kw *3sets

C.Capacity:9-10.5 tons/hour.

D.Double Screw Cycling Silo is added above the pellet machine, which has the advantages of saving space, saving labor, intelligently controlling the feeding speed, not easy to block the material, and improving production efficiency.

Main Parts:

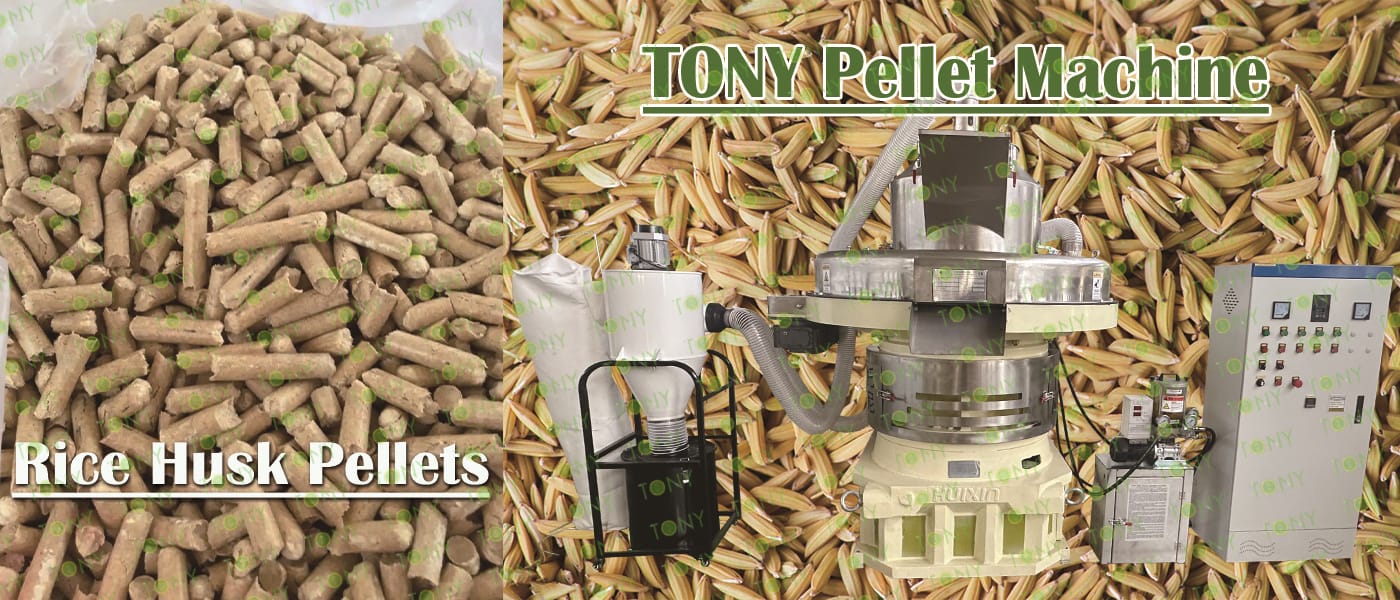

(1)TONY New Vertical Ring Die Pellet Machine.

(2)Cyclone And Bags Dust Collectors.

(3)Bearings Automatic Lubrication System.

(4)Electrical Cabinets.

For more equipment details and information, you can contact TONY

5.2图片


2.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.TONY brand galvanized pellets cooler*1set

C.Capacity:9-10.5 tons/hour.

Main Parts:

(1)TONY's New Galvanized Pellets Cooler Separator With Vibrating Screen.

(2)Cyclone and bags dust collectors.

(3)Fan Blower.

(4)Connect Pipes.

5.3图片


3. Packing Process:

A.This process is mainly used to pack pellets into 15-50KG/Bags.

B.TONY brand double packing machine*1 set.

C.Capacity:9-10.5 tons/hour.

Main Parts:

(1)TONY's New Double Packing Machine .

(2)Sew Machine, buyer Can Also Chose Hot Seal Machine For Chosen,To Confirm With TONY For The Price Difference.

(3)Bags Transportation Conveyors.

(4)Feeding Inlet Silo.

(5)Electrical Cabinets.

6.图片


7.图片


Against the backdrop of the dual-carbon strategy and the deepening of the rural revitalization strategy, the resource utilization of agricultural and forestry waste has become a new entrepreneurial opportunity. The dried rice husk biomass pellet project uses rice husks, commonly found in rural areas, as raw material. Through physical processing, it produces clean solid fuel, offering economic, social, and environmental benefits. Rice husks are a natural byproduct of rice processing, and their supply is abundant in my country's major rice-producing areas (such as the Northeast Plain and the middle and lower reaches of the Yangtze River Plain). Their recycling cost is extremely low, typically only a few tens of yuan per ton, and in some producing areas, they can even be obtained for free. Furthermore, the raw material transportation radius is short (ideally within 50 kilometers), effectively reducing logistics costs. Simultaneously, rice husks are convenient to store, do not easily mold when dry, and can be stockpiled in bulk to ensure production continuity, locking in cost advantages from the source. Biomass pellets made from dried rice husks are sulfur- and phosphorus-free, and do not produce sulfur dioxide or phosphorus pentoxide during combustion, effectively avoiding acid rain pollution and meeting national environmental standards. The product has a stable calorific value (which can reach 3000-3500 kcal/kg after processing), high density, and is easy to store. It can replace traditional energy sources such as coal and natural gas and is widely used in industrial boilers, biomass power plants, agricultural greenhouse heating, and residential heating. The market demand is rigid and diversified.

8.图片


1. Industrial Energy Substitution: Suitable for industries requiring medium- and low-temperature steam, such as textiles and food processing. Boiler modification is simple (only ash removal system required), and fuel costs are 40% lower than natural gas.

2. Regional Distributed Energy: Establishing small pellet plants in rice-dense areas (such as Southeast Asia and southern China) can solve power and heating problems in remote areas and reduce energy transportation costs.

3. Co-firing Technology Compatibility: Can be co-fired with pulverized coal at a ratio of 20-30%, directly reducing carbon emissions from power plants and complying with biomass co-firing policies in various countries.

4. Carbon Trading Revenue: Inclusion in CCER (China) or international carbon markets can generate $5-15 in revenue per ton of emission reduction.

5. Subsidy Support: Many countries offer equipment purchase subsidies (such as China's 30% subsidy) and electricity price subsidies (above 0.75 RMB/kWh) for biomass fuel projects.

6. Supply Chain Synergy: Promotes the integration of agriculture and the energy industry, creating jobs in collection, processing, and transportation.
