Project Brief Introduction:

1.Product:Dried Rice Husk Pellet Line

2.Capacity:3-4 Ton /Hour

3.TONY Brand 3-4 Ton /Hour Dried Rice Husk Pellet Line Project Process

4.Main Machine: TONY Pellet Machine TYJ551-Ⅲ-110KW,Pellets Cooler,Packing Machine And Belt Conveyors

5.Total Power: About 255 kw

6.Need Area: About  ㎡  L: M  W: M  H: M

Project Layout For Customer:

3D图3

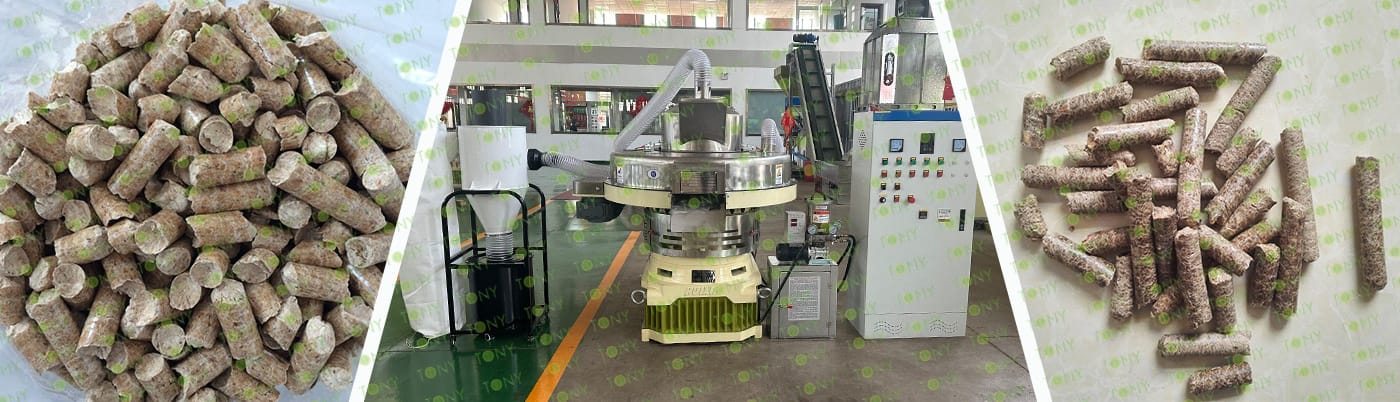

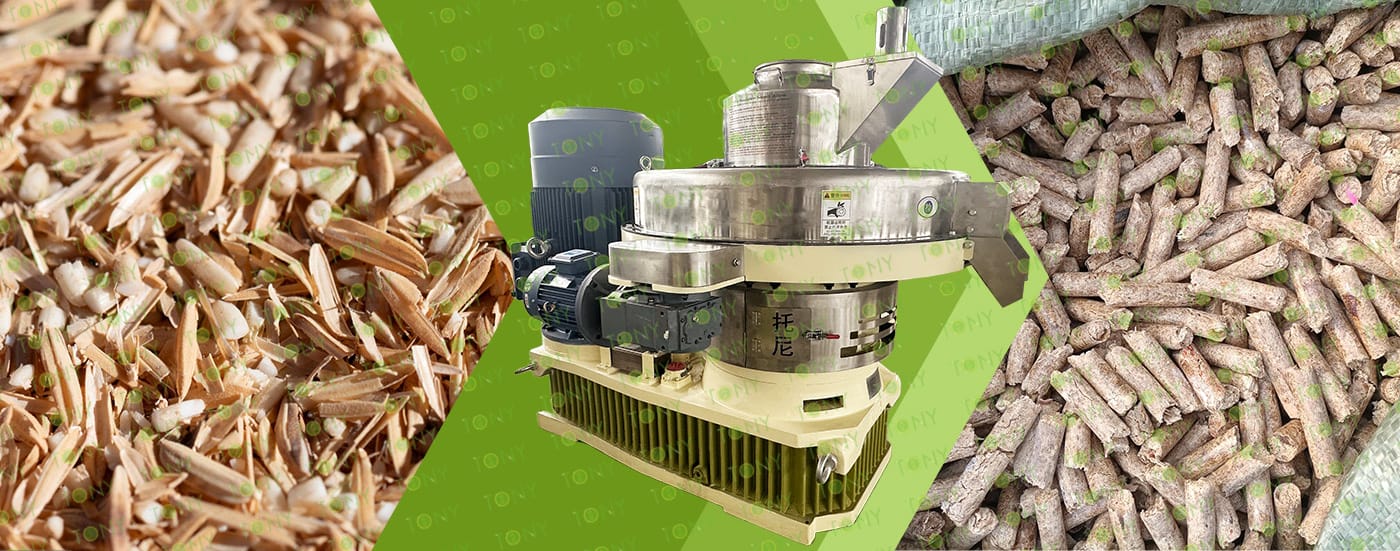

原材料图+颗粒机图片

1. The working principle of dried rice husk biomass pellet processing equipment

The key to rice husk pelleting lies in the combination of its own composition and external processing conditions, which can be divided into two points:

(1) The binding effect of lignin: Rice husks contain approximately 15%-20% lignin. During processing, the temperature inside the pellet mill mold rises to 160-220℃, causing the lignin to soften into a sticky colloidal state, tightly binding and binding the cellulose, hemicellulose, and other particles in the rice husk.

(2) High-pressure densification: The pellet mill's pressure rollers apply a high pressure of 50-100 MPa to the rice husks. Under this high pressure, the air between the rice husk particles is squeezed out, significantly reducing the volume and increasing the density from 0.1-0.2 g/cm³ to 1.1-1.3 g/cm³, ultimately forming cylindrical particles of a fixed diameter through the mold holes.

2. Characteristics of dried rice husk biomass pellet processing equipment

(1) Excellent Environmental Friendliness: No wastewater discharge throughout the entire process. The production process is equipped with dust removal devices (pulse bag filter, dust removal efficiency ≥99%), resulting in low dust emission concentrations that meet environmental standards. The production process is odorless and low-noise, suitable for both indoor and outdoor installation.

(2) High Raw Material Adaptability and High Added Value: In addition to pure rice husks, 5%-10% of rice straw, sawdust, and other raw materials can be mixed in without affecting the molding quality. Agricultural waste (rice husks) is converted into high-density biomass pellets (calorific value approximately 4000-4500 kcal/kg), achieving "turning waste into treasure" and increasing added value by 3-5 times.

(3) Stable Operation and Optional Automation: Small and medium-sized production lines can achieve semi-automatic control, while large production lines can be equipped with a PLC control system to achieve full-process automation (integrated raw material conveying, processing, and finished product packaging), reducing labor costs and minimizing failure rates.

3. Application scenarios of dried rice husk biomass pellet processing equipment

(1) Rice processing plant supporting processing lines: Large rice processing plants generate a large amount of rice husks (0.2 tons of husks per ton of rice processed). To avoid pollution from husk accumulation, they directly install pelleting equipment. The processed pellets have two main uses: first, as boiler fuel for the rice processing plant itself, providing steam for rice drying and processing, replacing coal or natural gas and reducing energy costs by 30%-50%; second, as an industrial by-product sold to other energy-consuming enterprises.

(2) Energy-consuming enterprises such as food and chemical plants: Some food factories (such as biscuit factories and wineries) and chemical plants require low-pressure steam or hot water and will purchase rice husk pellets as fuel for biomass boilers. Compared to coal, rice husk pellets produce no sulfur emissions when burned, meeting environmental protection requirements; compared to natural gas, the cost is lower, making it suitable for enterprises sensitive to environmental protection and costs.

(3) Industrial auxiliary materials such as paper and board: A few paper mills will crush rice husk particles and use them as filler materials for pulp to improve the strength of paper; some artificial board factories will mix rice husk particles with resin to press low-cost fiberboard, and use the hardness and stability of rice husk to improve the performance of the board.

2.图片

TONY Brand 3-4 TPH Dried Rice Husk Pellet Line can process dried rice husk and various biomass materials into biomass pellets. The core of the rice husk biomass pellet production line is to take advantage of the characteristics of rice husks—lightweight, high in silicon, and low in agglomeration—and transform agricultural waste rice husks into standardized biomass fuel through customized pretreatment and pelleting processes. This fuel is widely applicable to rice-growing areas and energy demand scenarios.The core significance of the rice husk biomass pellet production line is to realize the resource utilization, reduction and low-carbon utilization of rice husk waste, which not only solves the problem of agricultural solid waste pollution, but also provides a clean option for energy structure transformation, and has economic, environmental and social value.

1. Capacity: 3-4 Ton/Hour

2. Raw materials: Dried rice husk

3. Moisture: About 10-15%

4. Application: All kinds of  biomass materials suitable for pellet production.

Suitable customers: Green energy companies, large farms, private growers and other customers with advantages in  raw materials.

5. Finished Pellets Markets: Large power plants, domestic heating, industrial heating, combustion heat, heating heating, boiler room, school canteen, foundry heat source.

3.图片

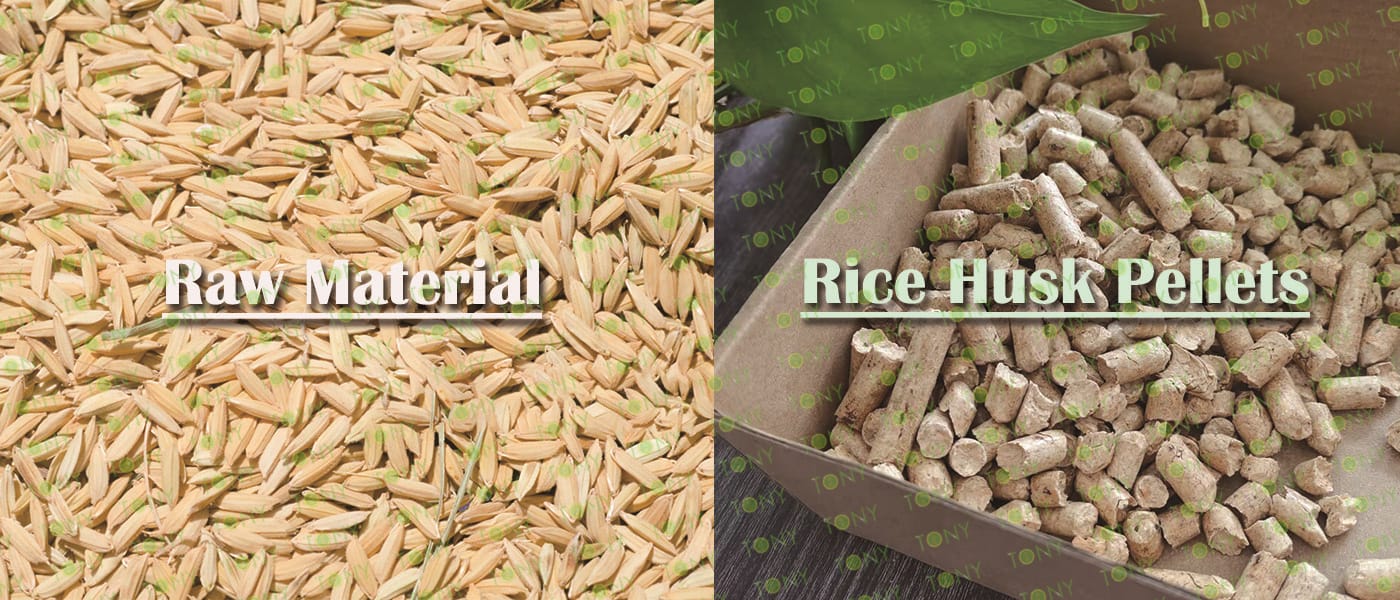

原材料--成品图

1. Project Name: Dried Rice Husk Pellet Production Line

2. Raw Material: Dried rice husk

3. Moisture Content of Raw Material:10-15%

4. Capacity: 3-4 TPH

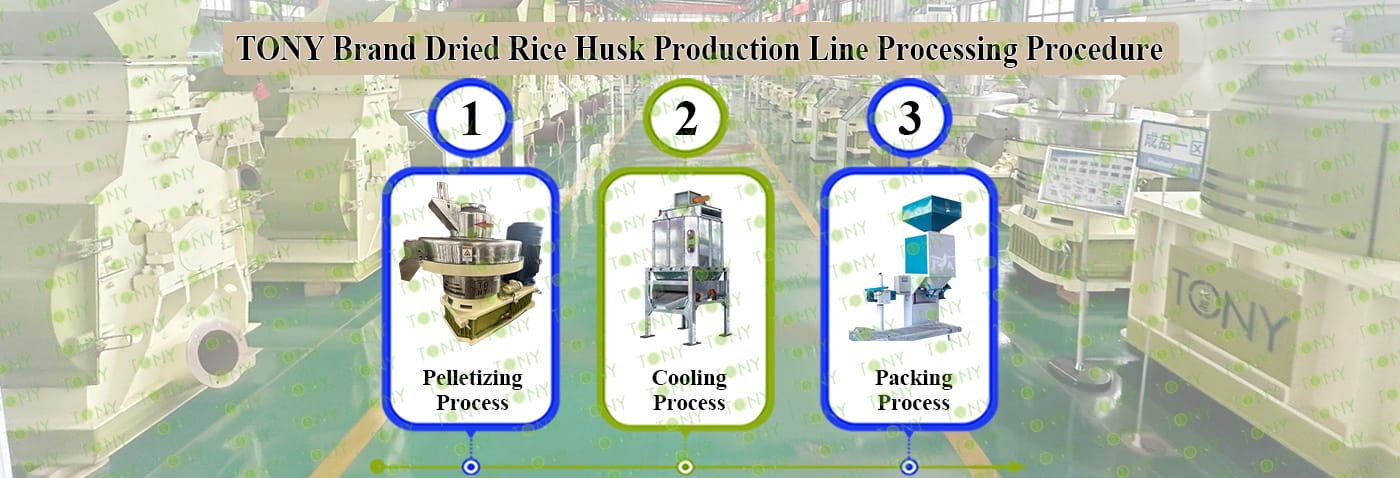

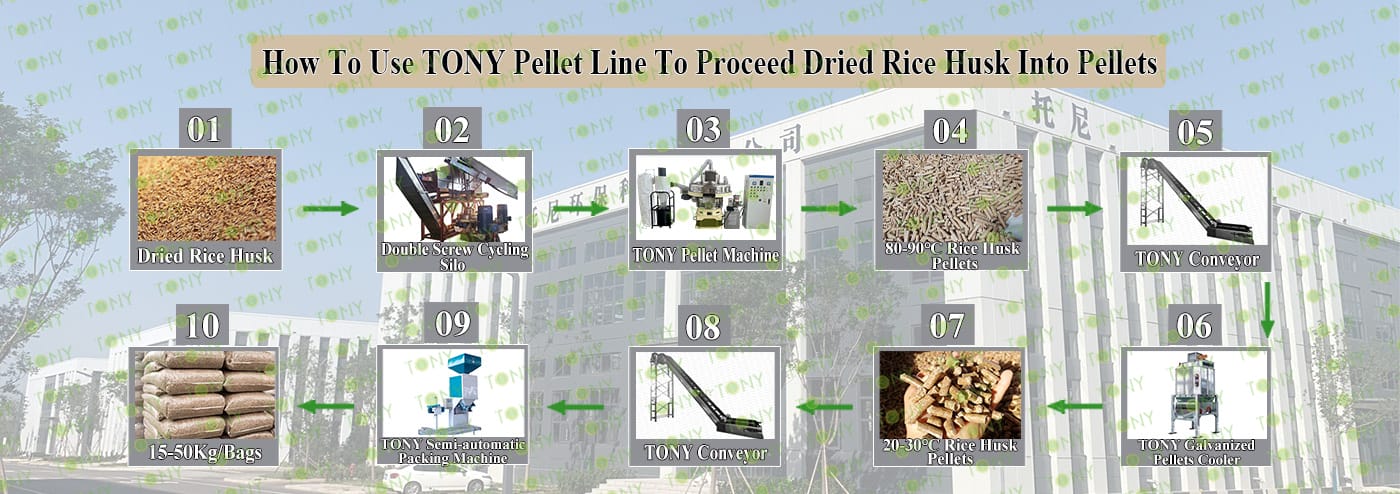

5. Process: Pelletizing Process - Cooling Process - Packing Process

6. Main Equipment: TONY Pellet Machine-TYJ551-III-110kw, Galvanized Pellets Cooler, Semi-automatic Packing Machine and Belt Conveyors

4.图片

流程图1

流程图2

5.图片

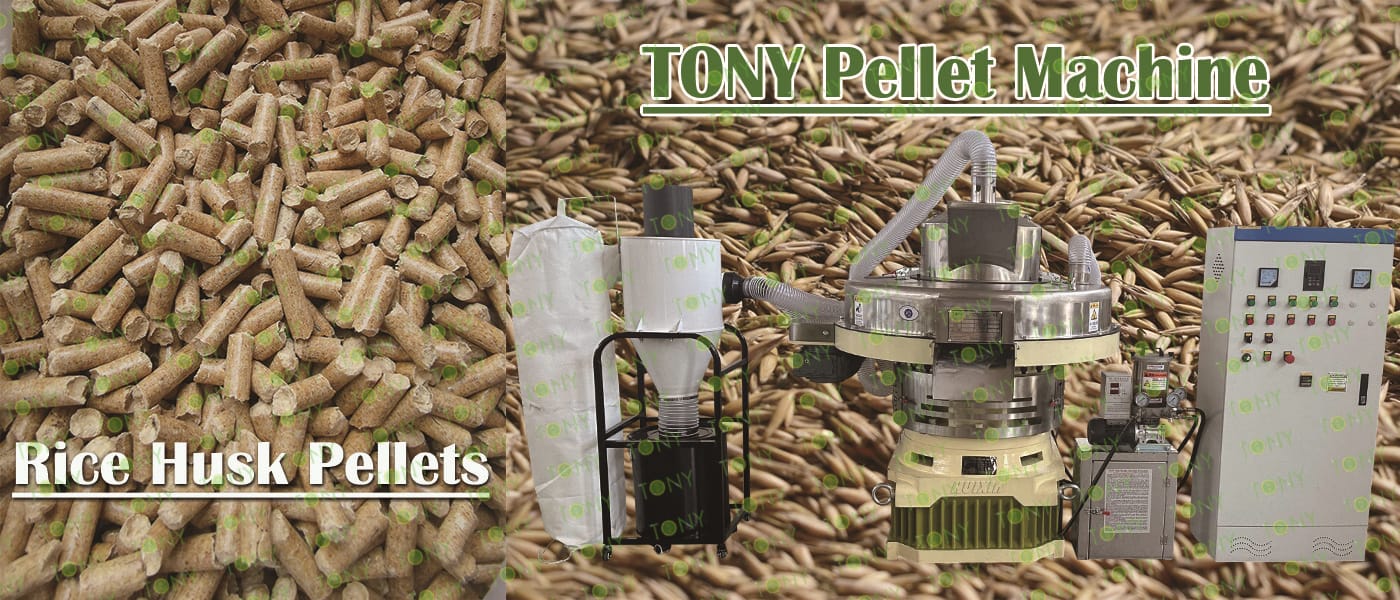

原材料+颗粒图

颗粒+机器图

3D图 图1-长宽

3D图  图2-高

3D图  图3

5.1图片

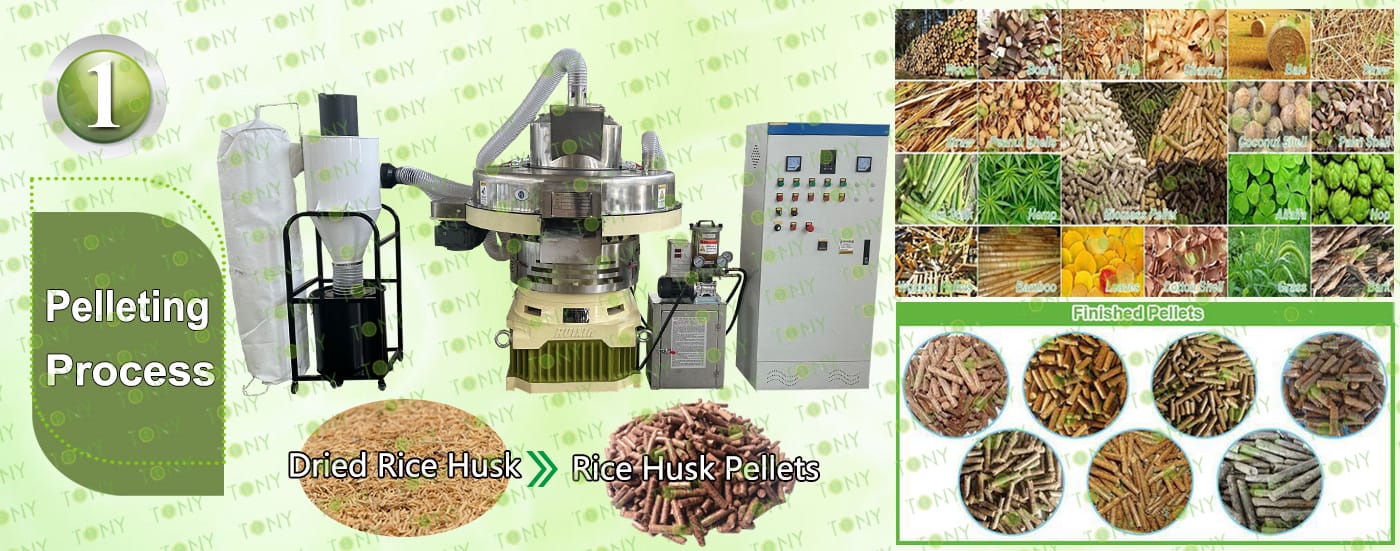

颗粒机四件套带 原材料，颗粒图

1.Pelletizing Process:

A.This process is mainly used to products pellets with φ6-8mm.

B.TONY brand vertical ring die pellet machine TYJ551-Ⅲ-110kw *2sets

C.Capacity:3-4 tons/hour.

D.Double Screw Cycling Silo is added above the pellet machine, which has the advantages of saving space, saving labor, intelligently controlling the feeding speed, not easy to block the material, and improving production efficiency.

Main Parts:

(1)TONY New Vertical Ring Die Pellet Machine.

(2)Cyclone And Bags Dust Collectors.

(3)Bearings Automatic Lubrication System.

(4)Electrical Cabinets.

For more equipment details and information, you can contact TONY

5.2图片

镀锌冷却机+颗粒图

2.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.TONY brand galvanized pellets cooler*1set

C.Capacity:3-4 tons/hour.

Main Parts:

(1)TONY's New Galvanized Pellets Cooler Separator With Vibrating Screen.

(2)Cyclone and bags dust collectors.

(3)Fan Blower.

(4)Connect Pipes.

5.3图片

半自动包装机

3. Packing Process:

A.This process is mainly used to pack pellets into 15-50KG/Bags.

B.TONY brand semi-automatic packing machine* 1set.

C.Capacity:3-4 tons/hour.

Main Parts:

(1)TONY's New Semi-Automatic Packing Machine.

(2)Sew Machine, buyer Can Also Chose Hot Seal Machine For Chosen,To Confirm With TONY For The Price Difference.

(3)Bags Transportation Conveyors.

(4)Feeding Inlet Silo.

(5)Electrical Cabinets.

6.图片

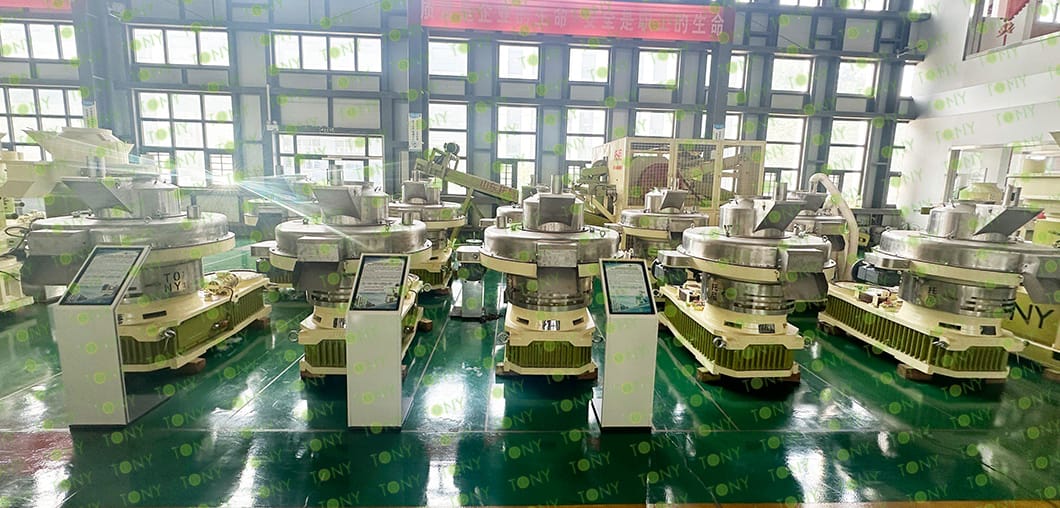

客户生产案例图

7.图片

图 稻壳+颗粒 颗粒机

Before launching the project, potential risks must be mitigated to ensure stable operation. The main risks and corresponding countermeasures are as follows:

1. Raw Material Supply Risk

Risk: Rice harvesting is seasonal (double-cropping rice in the south, single-cropping rice in the north), which may lead to raw material shortages during the off-season.

Countermeasure: Sign long-term supply agreements (at least 1 year) with rice processing plants. During the off-season, rice husks can be stored (must be moisture-proof, storage period not exceeding 3 months), or 5%-10% rice straw and sawdust can be mixed in to supplement raw materials.

2. Environmental Policy Risk

Risk: Some regions have strict requirements for dust and noise emissions; failure to meet standards may result in production shutdowns.

Countermeasure: Obtain environmental impact assessment procedures in advance, select low-noise equipment, and regularly maintain the dust removal system to ensure emissions meet standards.

3. Market Price Fluctuation Risk

Risk: The price of biomass pellets is affected by the prices of alternative energy sources such as coal and natural gas, which may lead to price declines.

Solutions: Expand diversified sales channels (e.g., sign long-term supply contracts with biomass power plants and food factories), develop high value-added products (e.g., export-grade pellets and molded fuel rods), and reduce dependence on a single market.

4. Equipment Failure Risk

Risk: Rice husks have a high silicon content (approximately 15%-20%), which easily wears down molds and pressure rollers, leading to equipment downtime.

Solutions: Select wear-resistant materials for vulnerable parts (e.g., alloy steel molds), stock 1-2 sets of spare vulnerable parts, conduct regular (quarterly) equipment maintenance, and purchase high-quality pellet mill equipment from manufacturers such as TONY.

8.图片

稻壳图加颗粒图

Rice husk pellets meet the environmental requirements of the "dual carbon" policy, with pollution emissions throughout their life cycle far lower than those of fossil fuels.

1. Extremely Low Pollutant Emissions:

Combustion produces almost no black smoke; sulfur dioxide emissions are <50mg/m³ (only 1/10-1/5 of coal), nitrogen oxide emissions are <200mg/m³, and dust emissions can be controlled below 30mg/m³. No complex exhaust gas treatment equipment is needed to meet national environmental standards, making it particularly suitable for industrial enterprises and residential applications with strict emission requirements.

2. Zero Net Emissions in the Carbon Cycle:

 Rice husks are agricultural waste. The carbon dioxide absorbed during their growth is essentially balanced with the carbon dioxide released during combustion, making them a "carbon-neutral" fuel. This helps users achieve carbon reduction targets and contributes to addressing the pressures of the "dual carbon" policy.

3. Ash residue can be utilized as a resource:

The ash residue after combustion is rich in elements such as silicon and potassium, which can be directly used as organic fertilizer to return to the field (to improve soil permeability), or processed into silicon fertilizer and potassium fertilizer, realizing the recycling of "fuel-ash residue-fertilizer" without waste pollution.
