Project Brief Introduction:

1.Product:Dried Rice Husk Pellet Line

2.Capacity:2.8-3.2 Ton /Hour

3.TONY Brand 2.8-3.2 Ton /Hour Dried Rice Husk Pellet Line Project Process

4.Main Machine: TONY Pellet Machine TYJ760-Ⅲ-185KW,Pellets Cooler,Packing Machine And Belt Conveyors

5.Total Power: About 210 kw

6.Need Area: About  ㎡  L: M  W: M  H: M

Project Layout For Customer:

3D图3

原材料图+颗粒机图片

1. The working principle of dried rice husk biomass pellet processing equipment

Dry rice husk pellet processing equipment mainly involves pelleting, cooling, and packaging processes to convert biomass raw materials such as dry rice husks into high-density pellet fuel. Among these processes, pelleting is the core, requiring mechanical extrusion to shape the raw materials under high temperature and pressure without the need for any chemical binders, thus conforming to environmental protection principles.

2. Characteristics of dried rice husk biomass pellet processing equipment

(1)Direct connection between the motor shaft and gear shaft results in stronger power transmission, greater torque resistance, higher stability, and lower maintenance rate.

(2)Improved bearing housing, changed sealing method, and use of forged tempered wear-resistant material to prevent dust from entering the bearing housing.

(3)Larger gearbox body and gears result in higher output power and lower power consumption.

(4)Uses genuine heavy-duty Harbin bearings, resulting in longer bearing life and lower overall machine maintenance rate.

(5)The ring die adopts a vertical double-layer structure, with both layers usable, improving utilization, reducing costs, and increasing efficiency.

(6)Rotating pressure rollers centrifuge the material, resulting in uniform material distribution.

(7)High efficiency and energy saving, automatic timed oil lubrication ensures sufficient bearing lubrication and safer, more reliable operation.

(8)High-pressure filtration and a clean, smooth independent frequency converter guarantee particle output.

3. Application scenarios of dried rice husk biomass pellet processing equipment

(1)Industrial Boiler Fuel: Directly used in coal-fired boilers, replacing coal. Biomass pellet combustion produces less pollution, with CO₂ emissions approaching carbon balance, meeting environmental protection requirements.

(2)Power Generation Fuel: Used as a raw material for thermal power generation or gasification power generation, especially in areas with high environmental protection requirements.

(3)Agriculture: Feed and fertilizer

(4)Feed Processing: Rice husk pellets can be used as a feed carrier for livestock. After mixing with nutrients, they can be pressed into pellet feed, reducing waste and facilitating storage.

(5) Organic Fertilizer: Processed with other agricultural wastes to produce organic pellet fertilizer, improving soil structure.

(6) Chemical Raw Material: The rice ash from burning rice husk pellets is rich in silica and can be used to produce cementing materials, pozzolanic cement, etc.

(7)Building Material Production: After being mixed with clay and burned, it can be made into refractory and heat-insulating bricks, or processed into lightweight rice husk boards for building decoration. Refractory Brick Wholesale Refractory Brick Production Technology.

2.图片

TONY Brand 2.8-3.2 TPH Dried Rice Husk Pellet Line can process dried rice husk and various biomass materials into biomass pellets. The core of the rice husk biomass pellet production line is to take advantage of the characteristics of rice husks—lightweight, high in silicon, and low in agglomeration—and transform agricultural waste rice husks into standardized biomass fuel through customized pretreatment and pelleting processes. This fuel is widely applicable to rice-growing areas and energy demand scenarios.The core significance of the rice husk biomass pellet production line is to realize the resource utilization, reduction and low-carbon utilization of rice husk waste, which not only solves the problem of agricultural solid waste pollution, but also provides a clean option for energy structure transformation, and has economic, environmental and social value.

1. Capacity: 2.8-3.2Ton/Hour

2. Raw materials: Dried rice husk

3. Moisture: About 10-15%

4. Application: All kinds of  biomass materials suitable for pellet production.

Suitable customers: Green energy companies, large farms, private growers and other customers with advantages in  raw materials.

5. Finished Pellets Markets: Large power plants, domestic heating, industrial heating, combustion heat, heating heating, boiler room, school canteen, foundry heat source.

3.图片

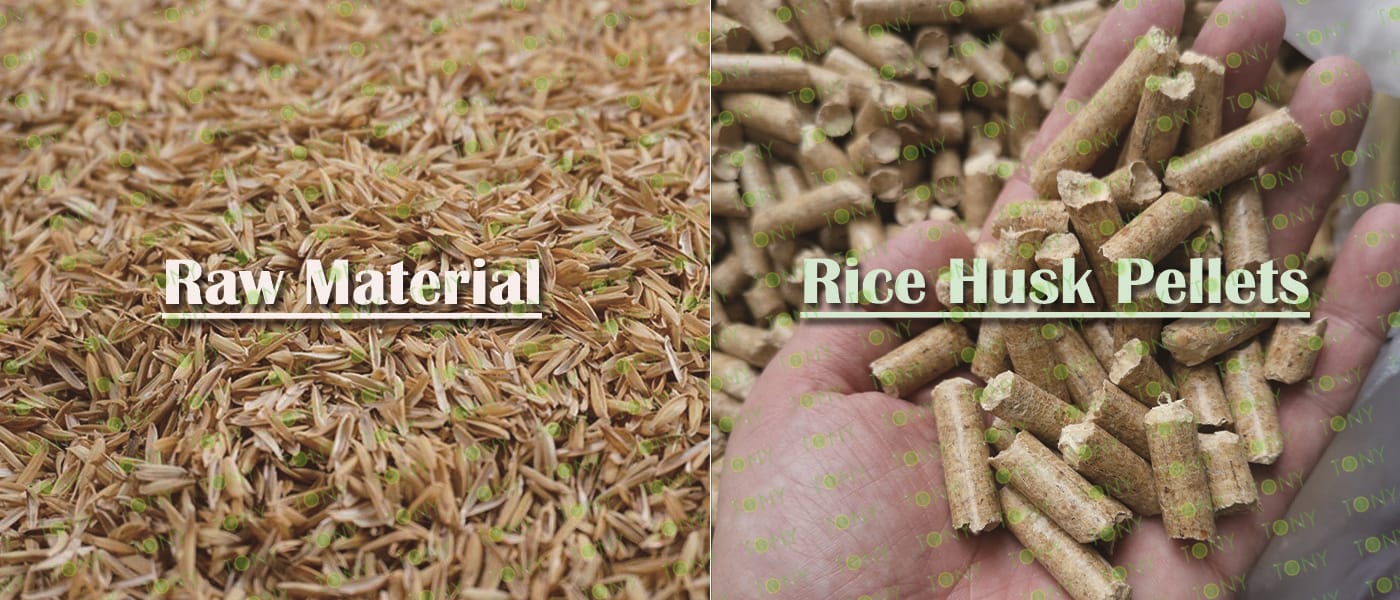

原材料--成品图

1. Project Name: Dried Rice Husk Pellet Production Line

2. Raw Material: Dried rice husk

3. Moisture Content of Raw Material:10-15%

4. Capacity: 2.8-3.2 TPH

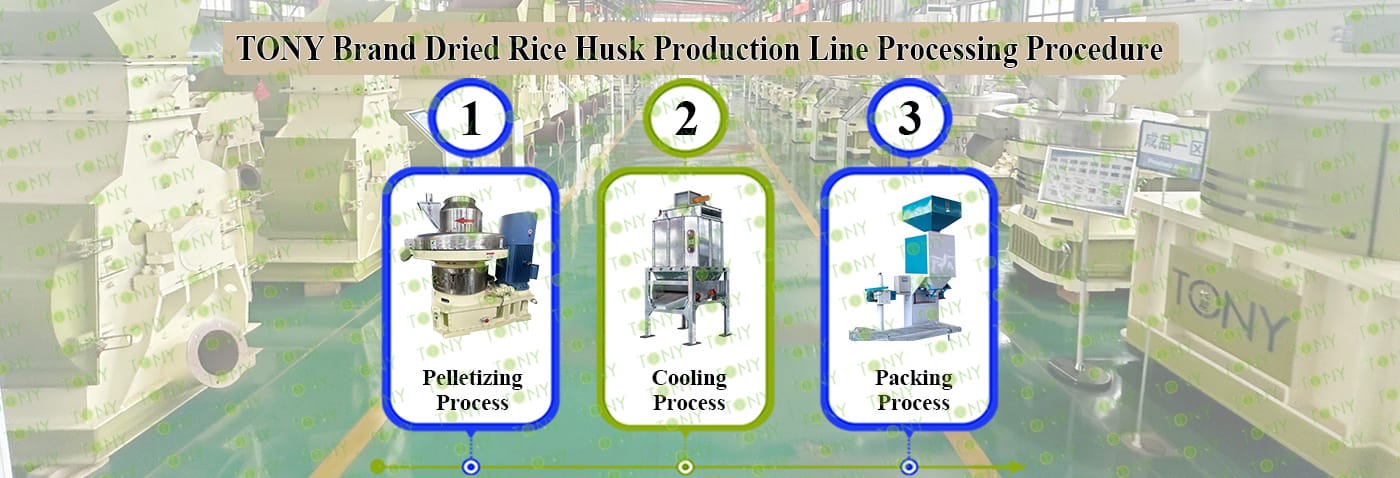

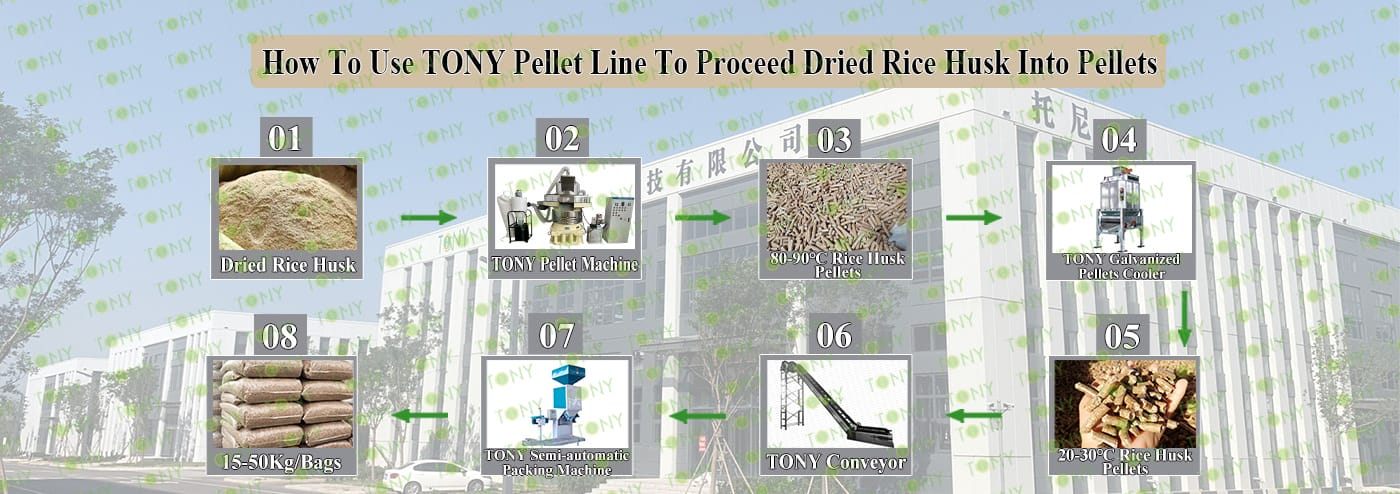

5. Process: Pelletizing Process - Cooling Process - Packing Process

6. Main Equipment: TONY Pellet Machine-TYJ760-III-185kw, Galvanized Pellets Cooler, Semi-automatic Packing Machine and Belt Conveyors

4.图片

流程图1

流程图2

5.图片

原材料+颗粒图

颗粒+机器图

3D图 图1-长宽

3D图  图2-高

3D图  图3

5.1图片

颗粒机四件套带 原材料，颗粒图

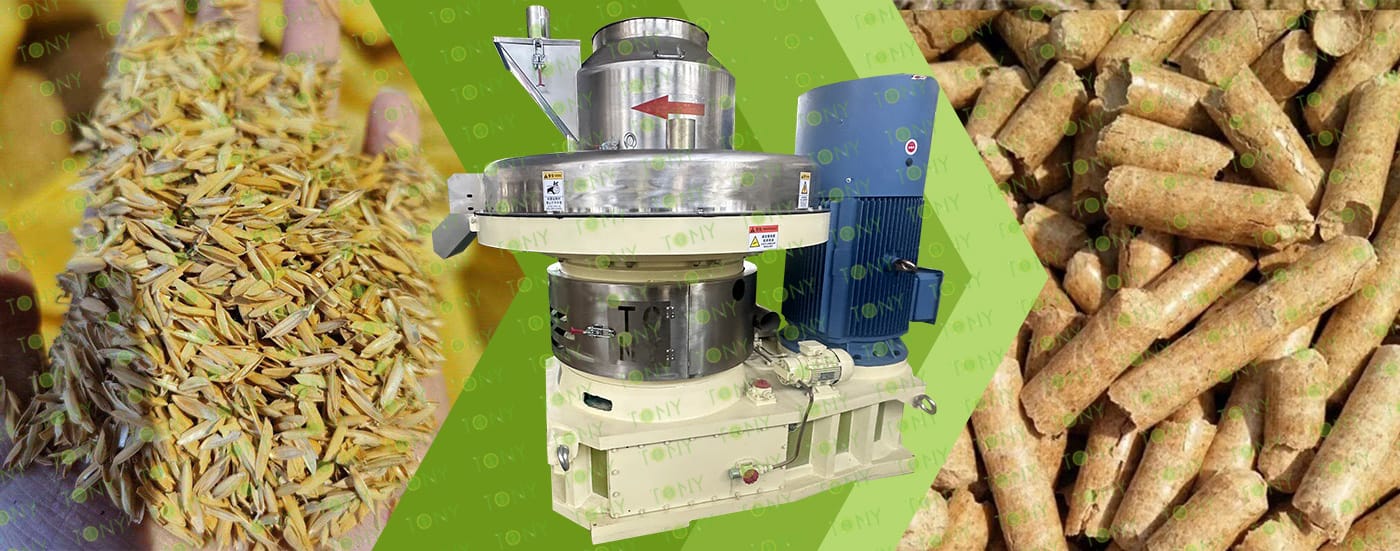

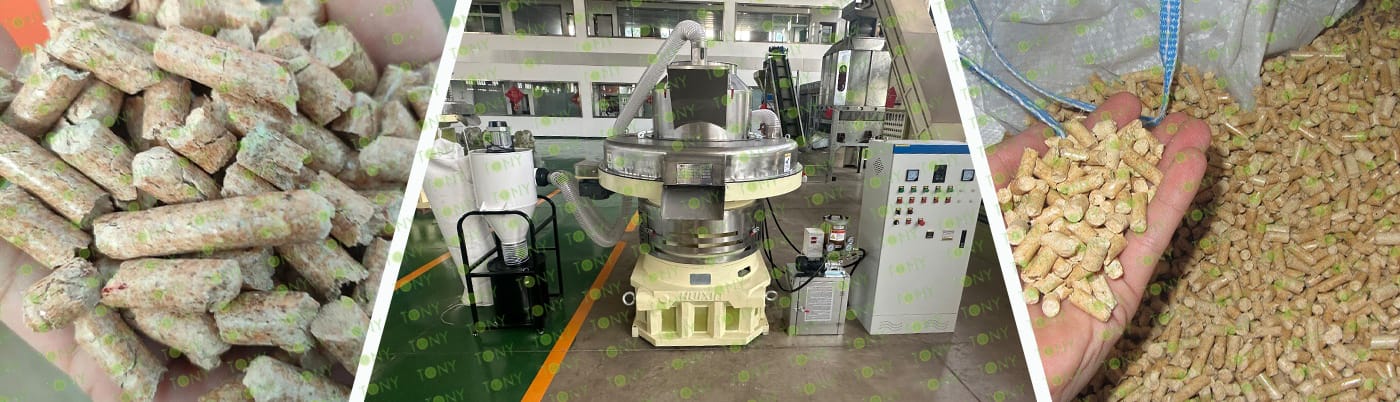

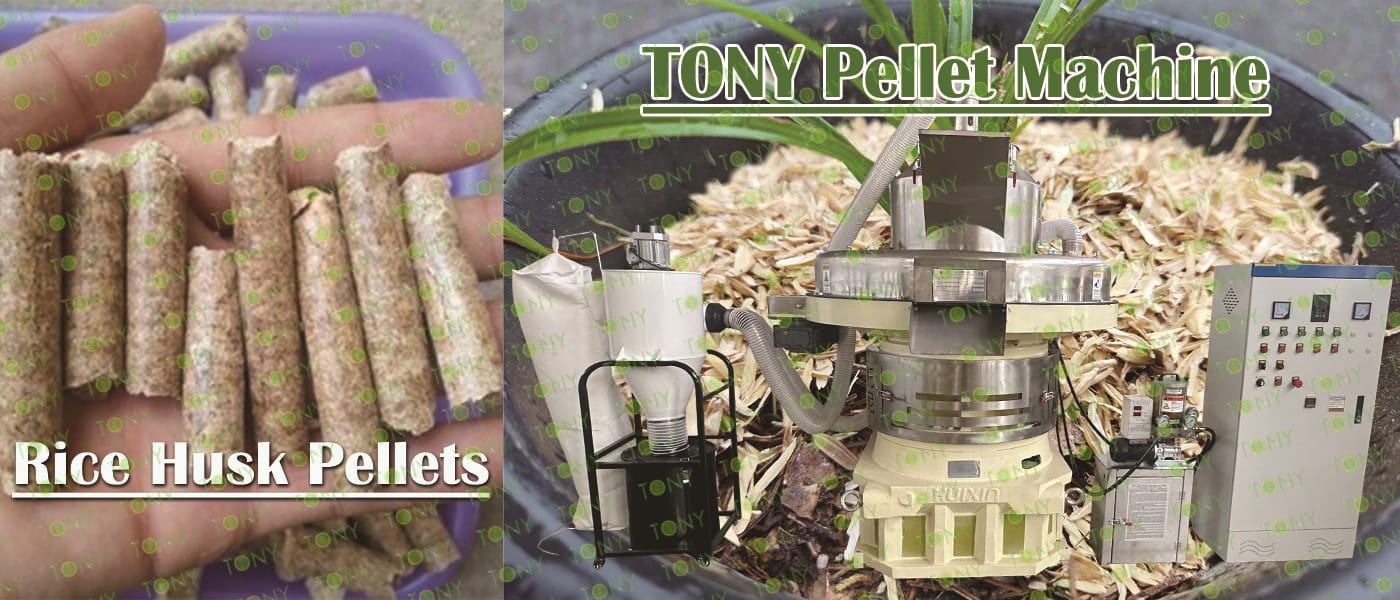

1.Pelletizing Process:

A.This process is mainly used to products pellets with φ6-8mm.

B.TONY brand vertical ring die pellet machine TYJ760-Ⅲ-185kw *1set

C.Capacity: 2.8-3.2 tons/hour.

Main Parts:

(1)TONY New Vertical Ring Die Pellet Machine.

(2)Cyclone And Bags Dust Collectors.

(3)Bearings Automatic Lubrication System.

(4)Electrical Cabinets.

For more equipment details and information, you can contact TONY

5.2图片

镀锌冷却机+颗粒图

2.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.TONY brand galvanized pellets cooler*1set

C.Capacity:2.8-3.2 tons/hour.

Main Parts:

(1)TONY's New Galvanized Pellets Cooler Separator With Vibrating Screen.

(2)Cyclone and bags dust collectors.

(3)Fan Blower.

(4)Connect Pipes.

5.3图片

半自动包装机

3. Packing Process:

A.This process is mainly used to pack pellets into 15-50KG/Bags.

B.TONY brand semi-automatic packing machine* 1set.

C.Capacity:2.8-3.2 tons/hour.

Main Parts:

(1)TONY's New Semi-Automatic Packing Machine.

(2)Sew Machine, buyer Can Also Chose Hot Seal Machine For Chosen,To Confirm With TONY For The Price Difference.

(3)Bags Transportation Conveyors.

(4)Feeding Inlet Silo.

(5)Electrical Cabinets.

6.图片

客户生产案例图

7.图片

图 稻壳+颗粒 颗粒机

Rice husks are a byproduct of rice processing, with a global annual production exceeding 150 million tons (China accounts for approximately 30%). Traditional disposal methods (incineration/landfill) cause pollution. This project acquires rice husks at near-zero cost, achieving resource regeneration. Biomass energy enjoys VAT exemptions and local government subsidies. Biomass pellets have a calorific value of 3500-4000 kcal/kg, which can replace coal in industrial boilers (such as steam supply for textile and food factories). The European energy crisis is driving demand, with EU biomass pellet imports expected to exceed 30 million tons in 2024, and Southeast Asian pellet FOB prices around $130-160/ton. No binders are needed; rice husk lignin self-bonds above 70℃. It meets environmental requirements, reconstructing the energy value chain from agricultural waste, with high technological maturity and policy certainty. Initially, the challenge of large-scale raw material collection needs to be overcome. It is recommended to establish a grid-based collection and storage system in conjunction with local cooperatives, and simultaneously apply for special funds for "Agricultural and Rural Emission Reduction and Carbon Sequestration Projects," which can reduce start-up costs by 30%.

8.图片

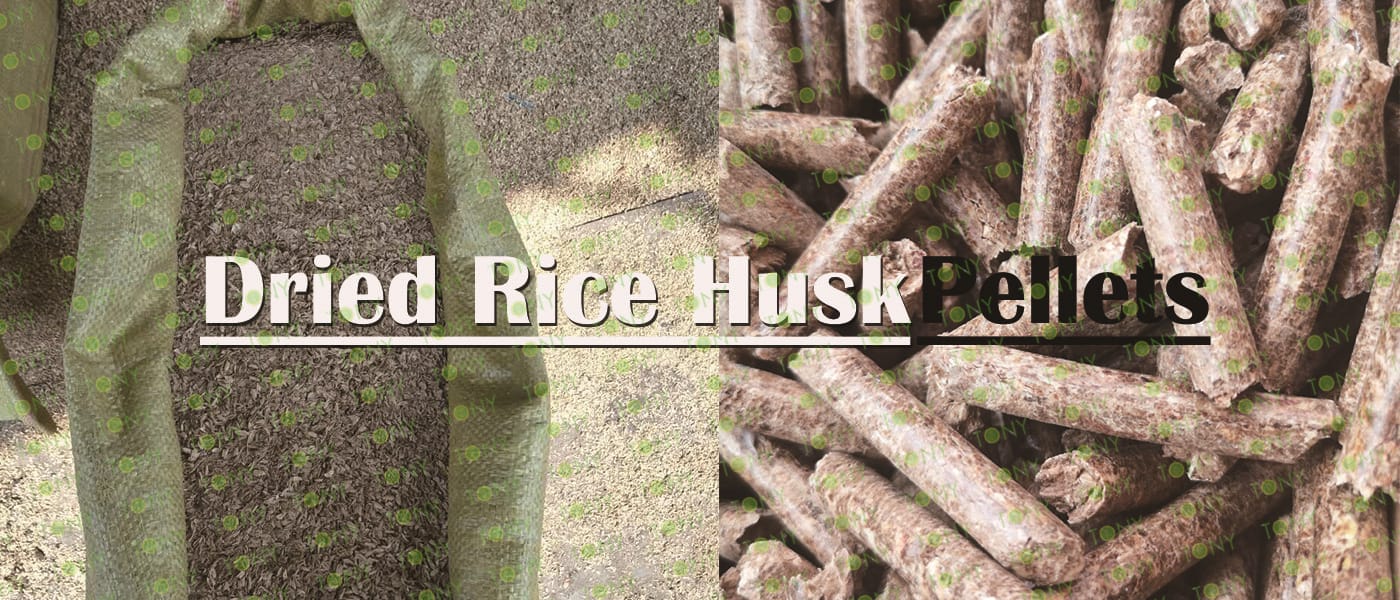

稻壳图加颗粒图

Biomass pellet fuel is a natural biomass pellet fuel that can replace city gas. It has a low moisture content, easily adjustable combustion air, and high combustion thermal efficiency. Furthermore, the main components of biomass pellet fuel are C-H organic matter, with no particulate C or SO₂ in the flue gas; it mainly consists of C-H volatile gases, and its SO₂ and CO emissions are close to zero. The smoke color during combustion is less than Ringelmann 1, significantly reducing air pollution and carbon dioxide emissions. Biomass pellet fuel is internationally renowned as a clean fuel. Through high-temperature compression, dry rice husk biomass pellets greatly save storage space, facilitating storage and transportation. Biomass pellet fuel can significantly improve the combustion performance of wood-based materials, increasing thermal efficiency by over 80%. One ton of biomass pellet fuel produces the equivalent heat of 0.8 tons of coal. Because biomass pellet fuel is derived from naturally occurring bio-fertilizer or wood shavings, it does not contain easily fissile or explosive chemicals, thus preventing accidents such as poisoning, explosions, and leaks. The ash from biomass pellet fuel combustion can be used as fertilizer to promote new plant growth, enter a new cycle, and ensure the sustainable use of biological resources.
