TONY specializes in selling Bamboo pellet machines online. TONY pellet machines have all the advantages of vertical ring die pellet machines.

It can process all kinds of Bamboo raw materials, such as Various Bamboo scraps, Bamboo strips and Bamboo chips.

TONY brand pellet machines are widely used in various industries and recommended by experts. Bamboo pellet machines can be used in fertilizers, Bamboo processing, electricity, biomass energy fuel and chemical plants. For low investment and high profits, TONY brand pellet machines will be your best choice for biomass pellet processing.

TONY brand pellet machines are sturdy and durable. Their unique design, after research for a long trouble-free service life, is constantly developing to become more and more versatile and tailor-made: different models, versions and options can meet the needs of different customers, the needs of all production areas and the requirements of process automation.

The working principle of the TONY brand 304 Stainless Steel Pellet Machine is mainly to rely on the pressure and friction between the template and the mold to gradually shape the raw materials and finally cut them into pellet products. The specific process is as follows:

1. Feeding: The biomass raw materials are fed through the feeder, and after pre-treatment such as crushing and mixing, they are sent to the hopper of the 304 Stainless Steel Pellet Machine.

2. Extrusion: The raw materials are subjected to the force between the high-speed rotating template and the stationary mold in the hopper, gradually forming pellet materials.

3. Cutting: After extrusion, the pellet materials are pushed to the inside of the mold to form a ring, and the blade inside the mold cuts the pellets to produce pellet products of the same length.

4. Discharging: The granular products are fed into the discharge port to produce the products of the 304 Stainless Steel Pellet Machine.

TONY Pellet Machine On Show

TONY Pellet Machine On Clinets Site

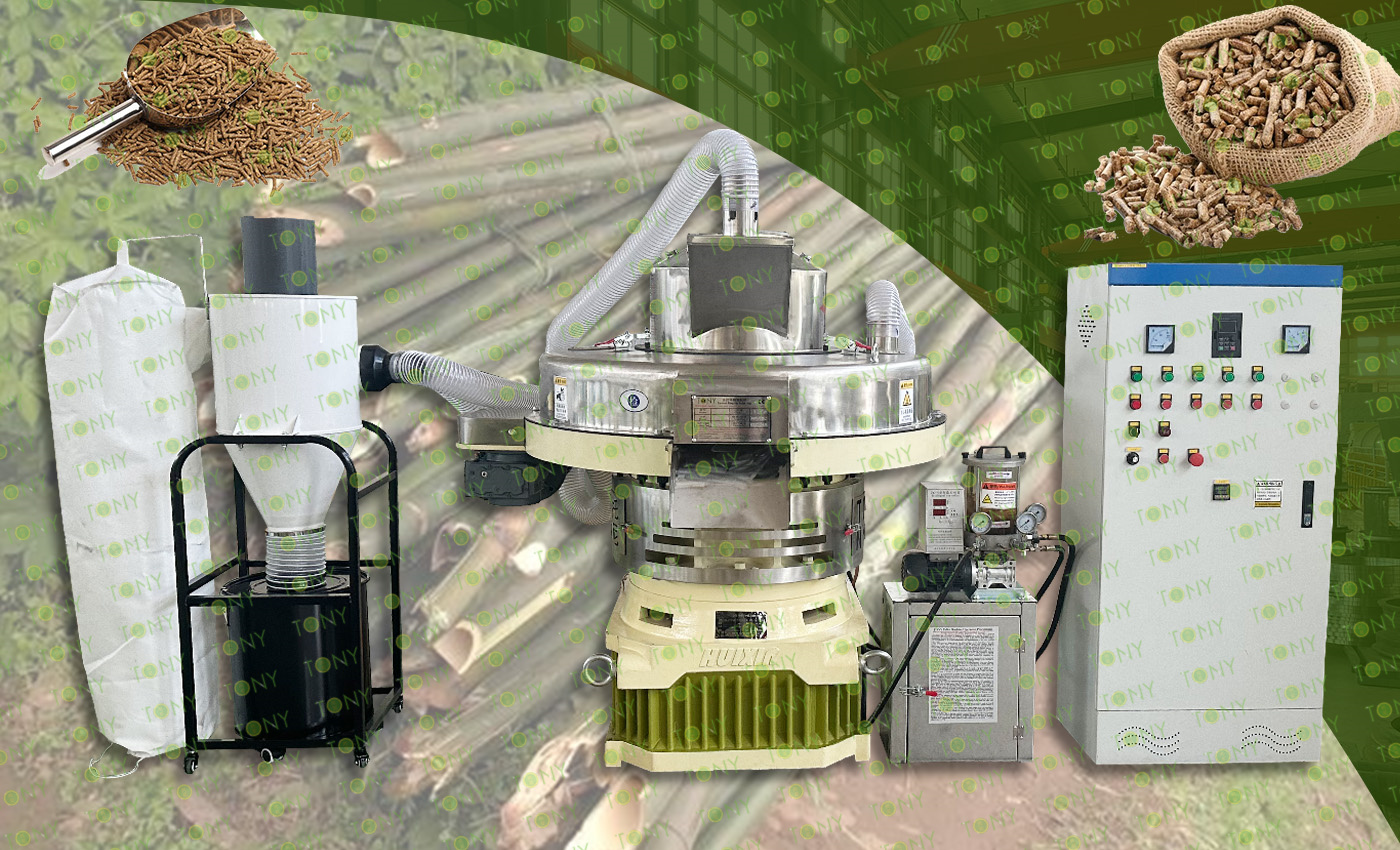

TONY's new 304 stainless steel Bamboo pellet machine mainly composed of 4 parts:

1. TONY new 304 stainless steel vertical ring die pellet machine

2. The rollers automatic lubrication system contains galvanized grease storage barrel.

3. New cyclone and dust bag collect system, including fan and pipe and dust collection bucket.

4. Electrical control system for all the above equipment.

TONY Bamboo Pellet Machine Model
Main Parts: 1.TONY new 304 stainless steel bamboo pellet machine 2.The rollers automatic lubrication system with galvanized grease storage barrel. 3.New cyclone and dust bag collect system, including fan and pipe. 4.Electrical control system for all the above equipment.
NO	Model	Power	Capacity	Weight	Machine Size	Remarks
1	TYJ450-II	55KW	0.8-1.2TPH	4T	19009001600MM	Big gearbox produced by TONY
2	TYJ551-II	90KW	1-1.5TPH	5.2T	236415501705MM	Same Model For Huixin Brand Gearbox Everthing the same,just motor different
3	TYJ551-II	110KW	1.5-2TPH	5.3T	236415501705MM
4	TYJ551-III	132KW	2-2.5TPH	5.5T	236415501705MM
5	TYJ760-I	160KW	2.5-3TPH	9T	246417502150MM	Huixin Brand Gearbox
6	TYJ760-II	185KW	2.8-3.3TPH	9.2T	256418502150MM	Bigger Model Huixin Brand Gearbox
7	TYJ760-III	200KW	3-3.5TPH	9.3T	256418502150MM	Bigger Model Huixin Brand Gearbox
8	TYJ860-I	220KW	3-4TPH	11T	266419502150MM	Huixin Brand Gearbox
9	TYJ860-II	250KW	3.5-4.5TPH	12T	286421502150MM	Bigger Model for Huixin Brand Gearbox
10	TYJ860-III	280KW	4-5TPH	13T	286421502150MM	Bigger Model for Huixin Brand Gearbox

1. TONY pellet machine motor shaft is directly connected to the gear shaft, which provides stronger power transmission, greater torque resistance, greater stability and lower maintenance rate.

2. TONY Bamboo pellet machine bearing chamber has been modified, the sealing method has been changed, and the forged and tempered wear-resistant materials have been used to prevent dust from falling into the bearing chamber.

3. TONY gearbox body is larger, the gears are larger, the output is higher, and the power consumption is lower.

4.TONY Pellet machine bearings are made of genuine heavy-duty Ha shafts, which have a longer bearing life and a lower maintenance rate for the entire machine.

5.TONY Pellet machine rhe ring die is vertical and double layered, with dual use of upper and lower layers, improving utilization, reducing costs, and increasing efficiency.

6. The pressure wheel rotates, the material is centrifuged, and the surrounding material is evenly distributed.

7. Efficient and energy-saving, automatic timed oil lubrication, ensuring sufficient lubrication of bearings and safer and more reliable operation.

8. High pressure filtration, clean and smooth independent frequency conversion device, ensuring the yield of pellets.

TONY pellet machine has a variety of models, according to the customer production of different models, pellet machine factory price from USD20000-USD70000.

You get what you pay for. The price always depends on the value. Because the pellet machine market is currently more chaotic, customers must be careful to buy!

To make a purchase decision after a comprehensive inspection of a number of comprehensive indicators such as product quality, manufacturer scale strength, pre-sales and after-sales service ability, research and development design ability, rather than just looking at the price!

Please note: If your purchase cost is very low, the later use cost will be very high! Because the purchase of very low cost equipment is likely to cause you to face endless maintenance later, continuous downtime and maintenance will delay your production and make you pay more money.

Shandong TONY Environmental Protection Technology Co., Ltd. adopts a gearbox customized with HUIXIN specifically for TONY particle machines. The advantages are as following:

1. Compared to ordinary counterparts, the gearbox is one size larger in both the box and internal gears to ensure sufficient stable transmission power for the operation of the particle machine.

2. The integrated power base is made of high-strength gray cast iron-HT250; All are high-precision hard tooth surface gear transmissions - the carburized tooth surface hardness of low-carbon alloy steel reaches HRC59-64, with an accuracy level of 5-6.

3. The high-speed bearings of the gearbox are imported from NSK brand in Japan.

1. The sealing element adopts Taiwan NAK high-temperature resistant fluororubber oil seal.

2. Equipped with a forced lubrication pump on the integrated reducer, it provides a thin oil lubrication system for the rolling shaft system above the bearing chamber to improve the impact of impurities and high temperature on the service life of the rolling shaft system.

3. The gearbox of Shandong TONY Environmental Protection Technology Co., Ltd. only uses plate heat exchangers (oil cooling devices). Compared to traditional tube heat exchangers (oil cooling devices) only used by some manufacturers, they have more advantages.

(1) Higher Heat Transfer Coefficient

Due to the fact that different corrugated plates are in the opposite direction, forming complex channels, the fluid between the corrugated plates flows in a three-dimensional rotating flow. Turbulence can occur at lower Reynolds numbers (generally Re=50-200), resulting in a higher heat transfer coefficient. Generally, it is considered that the red color is 3-5 times that of the shell and tube type.

(2) Large Logarithmic Mean Temperature Difference, Small End Temperature Difference

The hot surface and no bypass of the plate heat exchanger (oil cooling device) result in a small temperature difference at the end of the plate heat exchanger, and the heat transfer to water can be less than 1 ℃, while the shell and tube heat exchanger can only reach 5 ℃, which is not conducive to low-temperature heat dissipation and oil cooling.

(3) Larger Heat Exchange Area

The plate heat exchanger has a compact structure, and the heat transfer area per unit volume is 2-5 times that of a tube heat exchanger. Unlike shell and tube heat exchangers, it does not require a reserved maintenance position for the extraction of tube bundles. Therefore, in order to achieve the same heat transfer capacity, the plate heat exchanger occupies an area of approximately 1/5 to 1/8 of the shell and tube heat exchanger.

(4) Easy To Change Heat Exchange Area Or Process Combination

Plate heat exchangers (oil cooled devices) can achieve the required process combination by changing the layout of plate types or replacing multiple plate types, making the heat exchange area of shell and tube heat exchangers adapt to new heat exchange conditions, resulting in more obvious heat dissipation and more prominent oil cooling. The heat exchange area of a tubular heat exchanger is fixed and cannot be increased.

(5) Easy To Clean

As long as the pressure bolt is loosened, the plate heat exchanger tube bundle can be loosened, and the plate heat exchanger can be removed for mechanical cleaning. Once the tube heat exchanger (oil cooling device) is disassembled, if there is no professional manufacturer to repair it, customers cannot assemble it themselves and cannot reuse it. They can only purchase a new one.


Gear box adopts HUIXIN brand TONY custom made to increase the heavy duty. Gear box is engraved with HUIXIN brand and TONY custom LOGO. Compared with the ordinary HUIXIN model, the internal gear is enlarged and thickened, and the gear shaft is strengthened and thickened, which is more durable and stable.	The feed port, discharge shell, discharge port, dust collection cover, lifting knife and internal cutting knife of the pellet machine are made of 304 stainless steel to avoid steam corrosion and rust during the formation of particles and increase the durability of the equipment.	The upper discharge shell is made of 304 stainless steel, which avoids the shortcomings of poor compression resistance and easy cracking caused by welding. Arc profile appearance, to avoid operator injury, and arc profile tensile strength is stronger, not easy to damage.	The rotary support is installed under the discharge housing to avoid the traditional return support is easy to be corroded by steam at the top of the pellet machine, the internal steel ball is easy to rust corrosion shortcomings.

Gear reducer is installed under the discharge housing, the power is stronger, and the gear reducer is not easy to damage. And adopt HUIXIN brand hard tooth surface reducer, torque resistance is stronger.	TONY new pellet machine uses the 304 stainless steel dust cover, steam resistance, corrosion resistance is stronger, and in this way ,it is hard to be damaged.	Internal lifting knife is made of thickened stainless steel, which can effectively avoid high temperature and steam corrosion, increase the durability of the lifting knife, and the lifting effect is better.	Adjustable internal particle cutter, can be adjusted according to customer needs to adjust length of cutter in order to adjust the length of the discharge particle, simple and convenient adjustment.

1. TONY pellet machine can press a variety of biomass raw materials, different raw materials only need to replace the ring die.

2. Each raw material corresponds to a ring die with a compression ratio. If you have a variety of raw materials later, it is recommended to buy ring dies with different compression ratios from TONY.

3. The compression ratio of ring die is set by TONY according to his experience for many years. If the customer changes the raw materials, the ring die must be replaced.

4. The ring die of TONY brand is vertical and double-layer ring die. Each time the particles are pressed, only the lower layer of ring die can press the particles. When the life of the lower layer of ring die ends, the mold can be turned to use the other ring die.

5. The life of TONY ring die is generally 1000-1500 hours, and the service life of ring die is different according to the different raw materials of customers.

6. The material of TONY ring die is alloy steel-bearing steel. After quenching heat treatment, the hardness is higher, the wear resistance is greater, and the service life is longer.

7. Contact TONY to obtain the ring die compression ratio of different raw materials.

Main Pellet Machine 1. It is of SS304 type, which is known for its durability and resistance to corrosion. This material ensures a long service life and reliable performance of the pellet machine. 2.The capacity of the main pellet machine can be customized according to the specific capacity requirements of the customer. This flexibility allows the machine to meet the diverse production needs of different clients. Whether it's a small-scale operation or a large industrial production, the pellet machine can be adjusted to deliver the desired output. 3. The power of the main pellet machine is also determined according to its capacity. As the capacity varies, the power requirements change accordingly. This ensures that the machine operates efficiently and effectively, without excessive energy consumption or underpowered performance. A proper balance between capacity and power is maintained to optimize the production process.
	Automatic Lubrication System For Rollers Bearings. 1.This advanced system features an Automatic Grease lubrication mechanism specifically designed for rollers bearings as well as main shaft bearings. It is engineered with precision to ensure that the right amount of grease is delivered at the appropriate intervals. The automated process not only saves time and labor but also significantly reduces the risk of human error in lubrication. By precisely targeting these critical bearing components, it minimizes friction and wear, thereby prolonging the lifespan of the bearings and enhancing the overall performance and reliability of the equipment. 2.One of the remarkable capabilities of this automatic lubrication system is that it can effectively keep the pellet machine in a well-maintained state for an extended period of up to 20 hours. During this time frame, the consistent and proper lubrication provided by the system allows the pellet machine to operate smoothly without interruptions due to insufficient lubrication. This means fewer stoppages for maintenance, increased productivity, and ultimately, greater profitability for the users. It offers a reliable solution for continuous and efficient pellet production operations.
Cyclone And Dust Collecter 1.This highly efficient device is mainly utilized to collect the dust that emerges from the pellet machine during the crucial process of producing the pellets. As the pellet production gets underway, a significant amount of particulate matter is generated, which, if left unmanaged, can not only contaminate the surrounding environment but also potentially interfere with the smooth operation of the machinery. 2.There are three meticulously designed dust removal interfaces, each serving a specific and vital purpose. These interfaces are respectively connected to the pellet machine's two steam outlets and the pellet machine bearing room dust discharge hole. By establishing these direct connections, the system can effectively capture and remove the dust precisely at its source points. 3.The system features a state-of-the-art new cyclone and dust bag collect system, which is a comprehensive and innovative solution for dust management. It incorporates a high-powered fan that generates the necessary suction force to draw in the dust-laden air. The strategically placed pipes then transport the air and dust mixture to the heart of the system, the dust collection bucket.
	Electrical Cabinets 1. We use well-known Chinese brand electrical components, and we can also choose Schneider and Siemens electrical appliances according to customer requirements. Please consult TONY for the price difference. 2. TONY pellet machine has a one-button start function to prevent the machine from being damaged due to incorrect operation by customers who do not know the start-up sequence. 3. The control panel has 3 sound and light buzzers.One is the lubrication fault alarm indicator. When the automatic lubrication system of the roller and the automatic lubrication pump of the gear box are not started or fail during operation or are overloaded during operation, the alarm indicator will light up.One is when the automatic lubrication system of the roller is overpressured, the alarm indicator will light up.One is when the main machine of the pellet machine is overheated, the alarm indicator will light up. 4. If the customer chooses a variable frequency motor, all components in the electric control cabinet need to adopt variable frequency control. Please contact TONY to obtain the price difference of the variable frequency control cabinet.
Motors 1. TONY Motors stands out in the market by utilizing the renowned Qingao SHUOBO Brand. This brand is synonymous with quality and reliability, having been meticulously developed and refined over the years. It provides TONY Motors with a solid foundation in terms of performance and durability. The components and technologies incorporated under the Qingao SHUOBO Brand ensure that TONY Motors can meet the rigorous demands of various applications, whether it's for industrial use, commercial operations, or other specialized fields. 2. One of the remarkable features of TONY Motors is its flexibility to adapt to diverse customer requirements. The motors can be effortlessly customized and changed into a variable frequency motor as per the specific needs of the customers. This transformation allows for enhanced control and energy efficiency, making it suitable for scenarios where precise speed regulation and power optimization are crucial. However, when considering this upgrade, it's advisable to consult TONY directly for detailed information regarding the price difference of the variable frequency motor.
	Galvanized Belt Conveyor 1. This particular device is primarily utilized to transport the sawdust to the pellet machine in an efficient and reliable manner. It offers great flexibility as it is optional according to customer needs. Whether the customer's production setup demands a more automated material transfer process or they have specific spatial and operational considerations, this belt conveyor can be easily incorporated or excluded from the overall workflow. 2. In scenarios where the customer decides to dig a pit, a belt conveyor with a width of 50cm and a length of 10 meters will be required. This specific dimensioning is crucial as it takes into account the depth and layout of the pit, ensuring that the sawdust can be effectively conveyed from the source point. 3. To enhance the overall operational efficiency and synchronization, the belt conveyor equipped with a frequency converter. This advanced addition allows for one-button simultaneous operation with the pellet machine. By doing so, when the pellet machine is started or stopped, the belt conveyor can respond instantaneously, eliminating any manual intervention or potential errors in the startup and shutdown sequences.
