Project Brief Introduction:

1.Product:Wet Hazelnut Husk Pellet Line

2.Capacity:6-7.5 Ton /Hour

3.TONY Brand 6-7.5 Ton /Hour Wet Hazelnut Husk Pellet Line Project Process

4.Main Machine: Rotary Drum Dryer,TONY Pellet Machine TYJ551-Ⅲ-132KW,Pellets Cooler,Packing Machine And Belt Conveyors

5.Total Power: About 515 kw

6.Need Area: About  ㎡  L: M  W: M  H: M

Project Layout For Customer:

3D图3

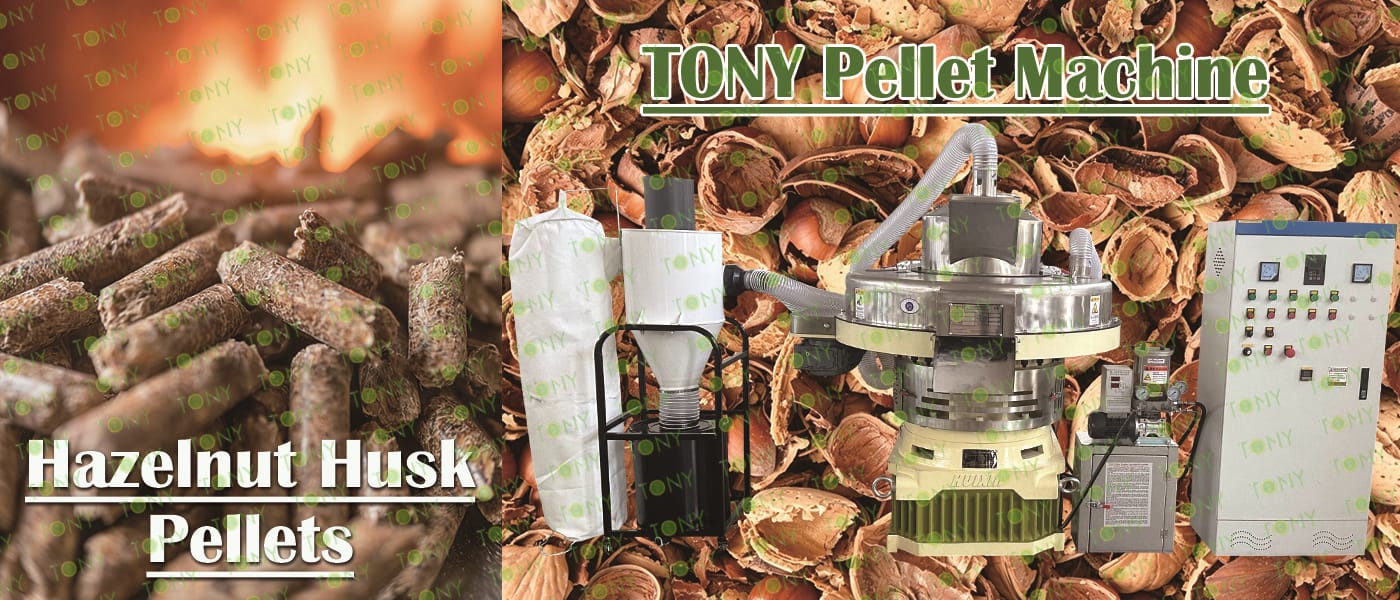

原材料图+颗粒机图片

1. The working principle of wet hazelnut husk biomass pellet processing equipment

The principle of the Wet Hazelnut Husk Pellet processing equipment is to physically extrude Wet Hazelnut Husk into granules. During the granulation process, the Hazelnut Husk raw material falls vertically into the feed port. The rotation of the pressure rollers causes the material to be continuously and evenly distributed on the inner surface of the mold cavity. Under the crushing of the pressure rollers, the powdery material passes through the holes of the mold. During this process, the material is subjected to high pressure and high temperature, which causes physical changes or appropriate chemical changes, causing the powdery material to form an elongated cylindrical solid body. Then, the granules are cut by the cutting blade and discharged from the discharge port. At this point, the granulation process is completed.

2. Characteristics of wet hazelnut husk biomass pellet processing equipment

(1) Highly efficient forming and stable pellet quality: The core equipment, the ring die pellet mill, uses a high-strength alloy ring die and wear-resistant pressure rollers, capable of withstanding the high friction during wet hazelnut husk extrusion, ensuring continuous production.

(2) Strong adaptability to high-moisture raw materials: It can quickly reduce moisture content to the required 10%-15% for pelleting, maintaining stable operation even with significant fluctuations in raw material moisture (such as sawdust collected during the rainy season).

(3) Energy-saving and environmentally friendly, with high resource utilization.

(4)High degree of automation and convenient operation: It can monitor parameters such as raw material moisture, pelleting temperature, and output in real time, automatically adjusting drying time, feeding speed, and pressure roller speed, reducing manual intervention.

3. Application scenarios of wet hazelnut husk biomass pellet processing equipment

After drying and other pretreatment, wet hazelnut husk pellets can be used as biomass fuel. Compared to traditional fossil fuels, they have the advantages of being renewable and having relatively low carbon dioxide emissions. In some district heating systems, the heat generated by burning wet hazelnut husk pellets can be used for residential heating and heating processes in industrial production. For example, in parts of Northern Europe, biomass pellet heating systems are widely used, with wet hazelnut husk pellets serving as one of the raw materials to provide a warm winter living environment for local residents. This is because they have good combustion performance, effectively release heat, are relatively widely available, and have relatively low costs.

2.图片

TONY Brand 6-7.5 Ton/Hour Wet Hazelnut Husk Pellet Manufacturing Plant can  process take wet hazelnut husk and various biomass materials into biomass pellets.Hazelnut husk biomass pellet processing is a typical "waste resource utilization" project. Its core characteristics are readily available raw materials, outstanding environmental attributes, and combustion performance suitable for both civilian and small- to medium-sized industrial applications, making it highly practical. With the increasing global emphasis on and demand for renewable energy, the biomass fuel market is showing a positive development trend, and hazelnut husk biomass pellet processing projects have considerable development prospects.

1. Capacity: 6-7.5 Ton/Hour

2. Raw materials: Wet Hazelnut Husk

3. Moisture: Wet type, about 40-55% .

4. Application: All kinds of  biomass materials suitable for pellet production.

Suitable customers:Entrepreneurs with advantages in raw materials, such as nut processing business owners, cooperatives/brokers in major hazelnut producing areas, agricultural waste recyclers, biomass energy traders, and investors interested in the environmental protection industry, etc.

5. Finished Pellets Markets: Large power plants ,domestic heating, industrial heating, combustion heat, heating systems, boiler rooms, school canteens, foundry heat sources.

3.图片


原材料--成品图

1. Project Name: Wet Hazelnut Husk Pellet Production Line

2. Raw Material: Wet Hazelnut Husk

3. Moisture Content of Raw Material: 40-55%

4. Capacity: 6-7.5 TPH

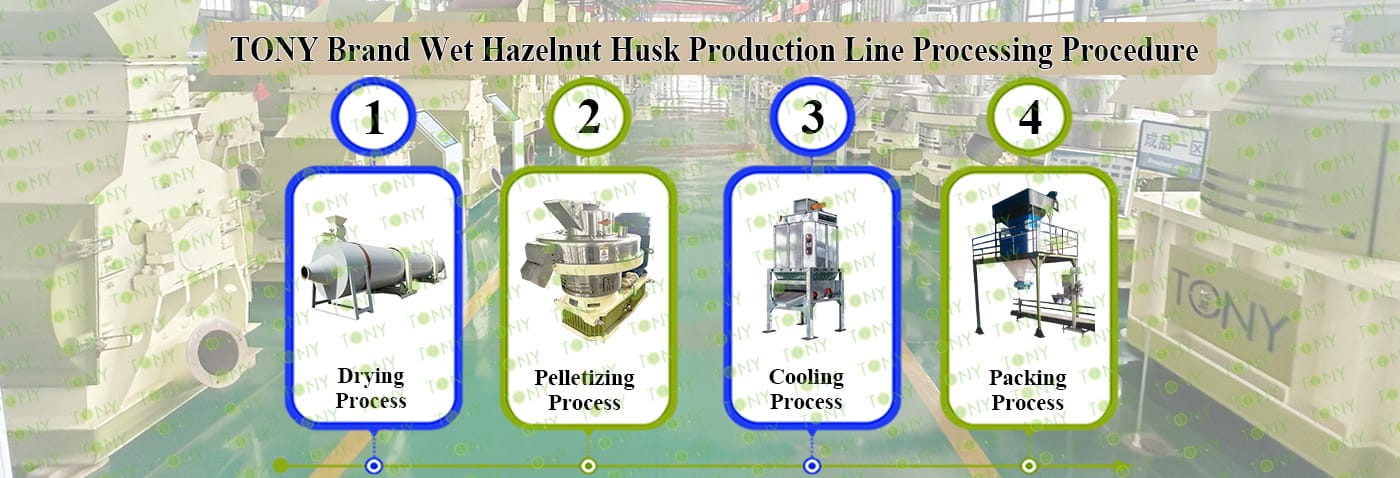

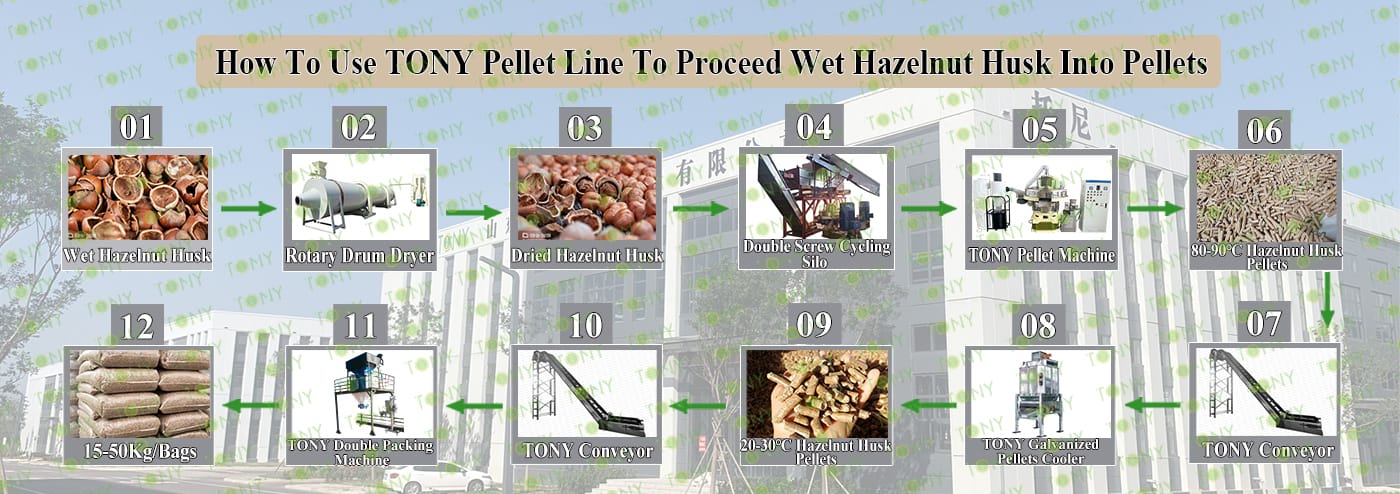

5. Process: Drying Process - Pelletizing Process - Cooling Process - Packing Process

6. Main Equipment:  Rotary Drum Dryer-2.2*24m, TONY Pellet Machine TYJ551-Ⅲ-132kw, Galvanized Pellets Cooler, Double Packing Machine and Belt Conveyors

4.图片

流程图1

流程图.

5.图片

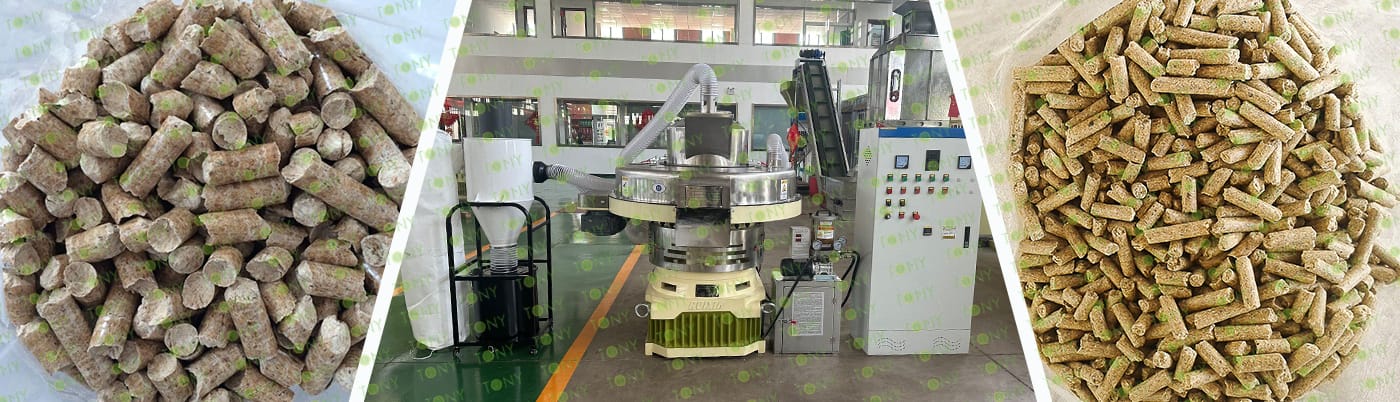

原材料+颗粒图

颗粒+机器图

3D图 图1-长宽

3D图  图2-高

3D图  图3

5.1图片

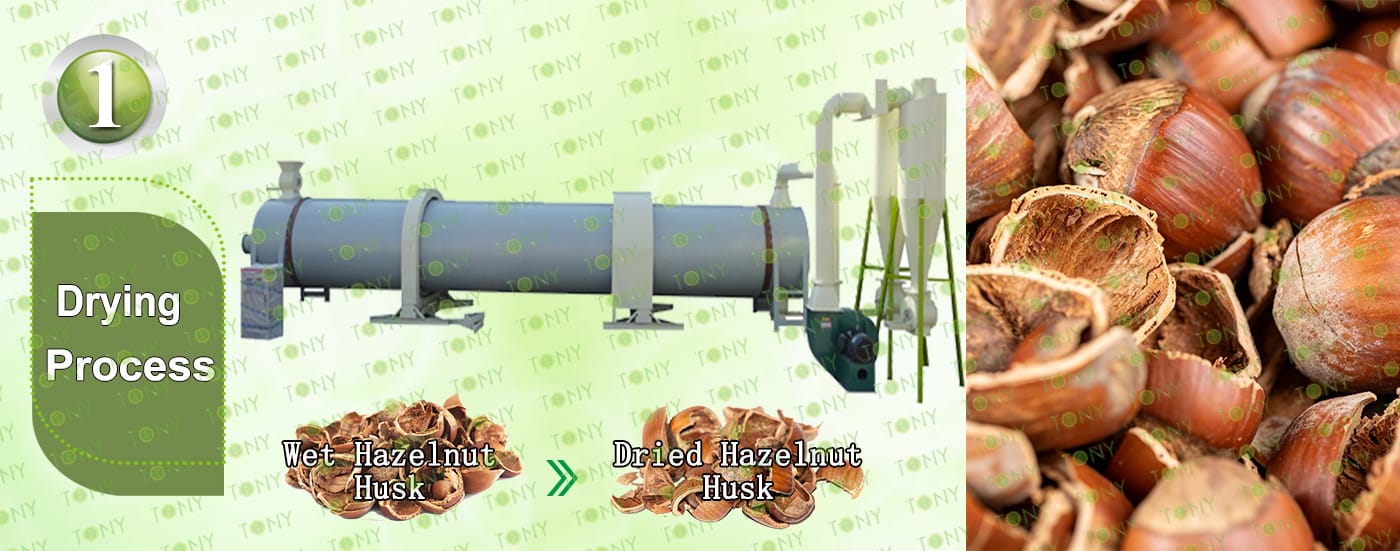

烘干机

带榛子壳图

1.Hazelnut Husk Drying Process:

A.This process is mainly used to dry the hazelnut husk from 40-55% to 10-15%.

B.Capacity:6-7.5 tons/hour.

C.TONY use 1set of 2.2*24m  rotary drum dryer for this process, TONY hot blast stove is made of firebrick pan, shell with H steel plate as the frame.   There are 3 layers of fire blocking device inside, which can effectively prevent the fire from entering the tumble dryer.Customers can choose to use waste wood, biomass pellets, natural gas, etc. as fuel for the hot air furnace

TONY dryer use spiral tube material, and is not easy to deform.

Unlike other manufacturers with iron plate splicing welding, very easy to deformation.

Main Parts:

(1)TONY's Rotary Drum Dryer Main Body.  (Reducers With Motors and Pips.)

(2)TONY's  Hot Stove.

(3)Fan Blower+Cyclone With Airlock.

5.2图片

颗粒机四件套带 原材料，颗粒图

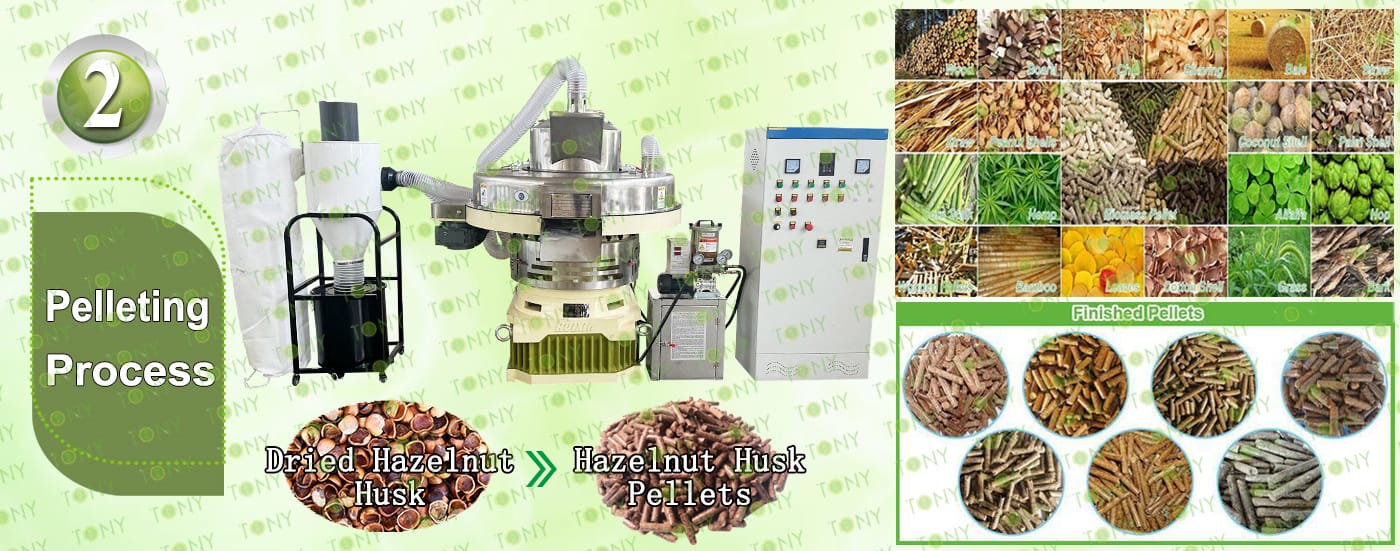

2.Pelletizing Process:

A.This process is mainly used to to product pellets into φ6-8mm.

B.Capacity:6-7.5 tons/hour.

C.TONY brand vertical ring die pellet machine TYJ551-III-132kw*3sets

D.Double Screw Cycling Silo is added above the pellet machine, which has the advantages of saving space, saving labor, intelligently controlling the feeding speed, not easy to block the material, and improving production efficiency.

Main Parts:

(1)TONY's New Vertical Ring Die Pellet Machine.

(2)Cyclone And Bags Dust Collectors.

(3)Automatic Lubrication System.

(4)Electrical Cabinets.

You can chose TONY new type SS304 pellet machine

5.3图片

镀锌冷却仓加颗粒图

3.Cooling Process:

A.This process is mainly used to cool pellets from 80-90℃ to 20-30℃

B.Capacity:6-7.5tons/hour.

C.TONY brand galvanized pellets cooler *1set

Main Parts:

(1)TONY's Galvanized Pellets Cooler With Vibrating Screen.

(2)Cyclone And Bags Dust Collectors.

(3)Fan Blower.

(4)Connect Pipes.

5.4图片

半自动包装机

4.Packing Process:

A.This process is mainly used to pack pellets into 15-50KG/Bags.

B.Capacity:6-7.5tons/hour.

C.TONY double packing machine* 1set

Main Parts:

(1)TONY's  Double Packing Machine.

(2)Sew Machine, Buyer Can Also Choose Hot Seal Machine For Chosen,To Confirm With Tony For The Price Difference.

(3)Bags Transportation Conveyors.

(4)Feeding Inlet Silo.

(5)Electrical Cabinets.

6.图片

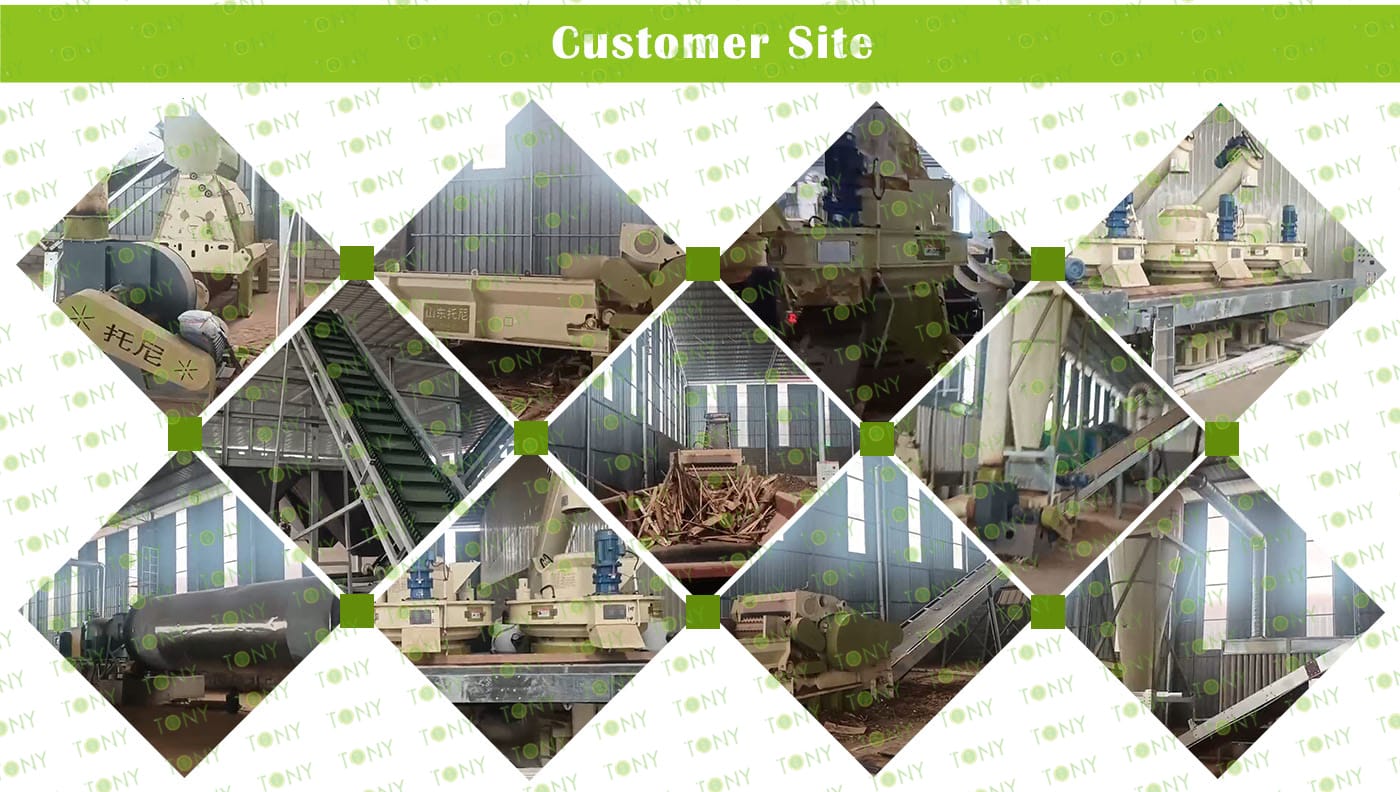

客户生产线案例图

7.图片

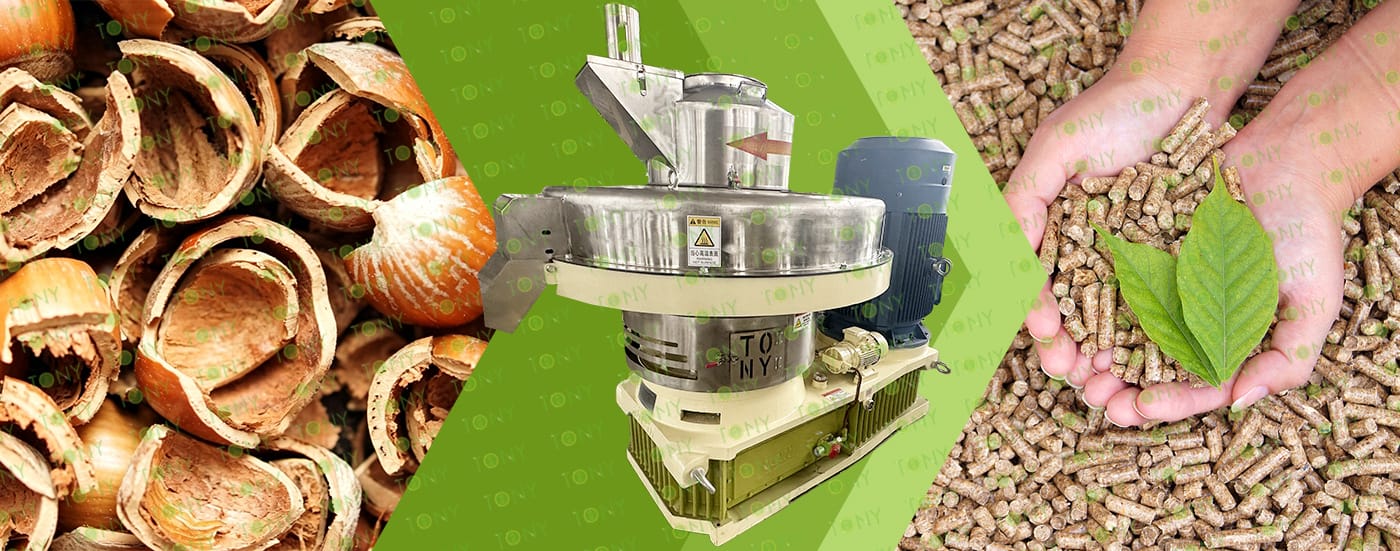

图 湿榛子壳+颗粒 颗粒机

After drying and other pretreatment, wet hazelnut husk pellets can be used as biomass fuel. Compared to traditional fossil fuels, they have the advantages of being renewable and having relatively low carbon dioxide emissions. In some district heating systems, the heat generated by burning wet hazelnut husk pellets can be used for residential heating and heating processes in industrial production. For example, in parts of Northern Europe, biomass pellet heating systems are widely used, with wet hazelnut husk pellets serving as one of the raw materials to provide a warm winter living environment for local residents. This is because they have good combustion performance, effectively release heat, are relatively widely available, and have relatively low costs.

8.图片

榛子壳图 颗粒图

Wet Hazelnut Husk pellets are granular materials made from wet-processed wet hazelnut husks, commonly used in horticulture, agriculture, and biomass energy. They represent a reuse form of waste from wet hazelnut husk processing, offering significant environmental and economic value. Their core advantages lie in sustainability, practicality, and low cost. The advantages of wet hazelnut husk pellets stem from their biomass characteristics (such as porous structure and high fiber content), particularly their water retention and slow-release properties in a wet state. Furthermore, as a biomass energy material, wet hazelnut husk pellets offer multiple advantages, including cleanliness, environmental friendliness, resource recycling, cost-effectiveness, and policy support. Wet hazelnut husk pellets not only solve waste disposal problems but also provide a low-cost, sustainable energy supply option, making them particularly suitable for industries with high environmental requirements and a focus on resource recycling. Their processing and application technologies are mature, combining economic and environmental benefits.

9.图片

绿色地球+原材料+颗粒图
