Comprehensive Chipper_Wood Crushing Equipment_Products

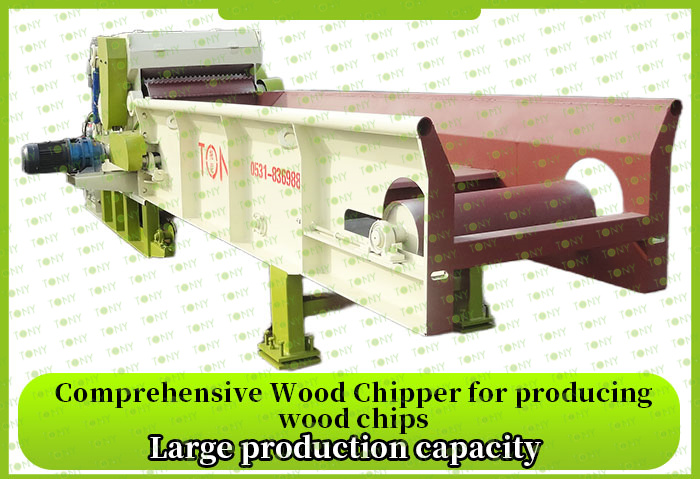

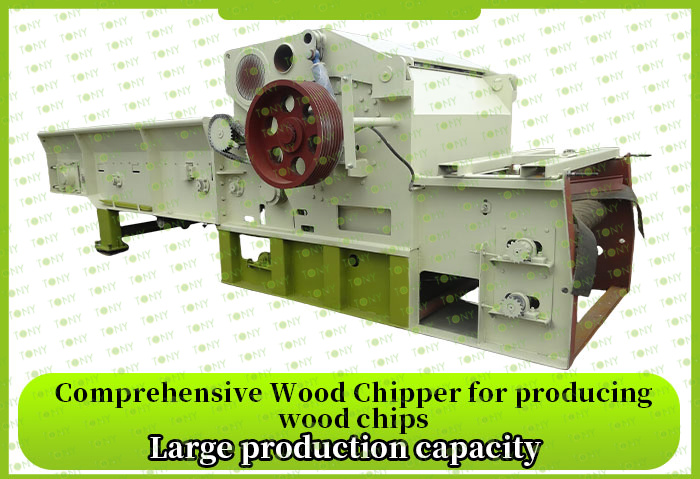

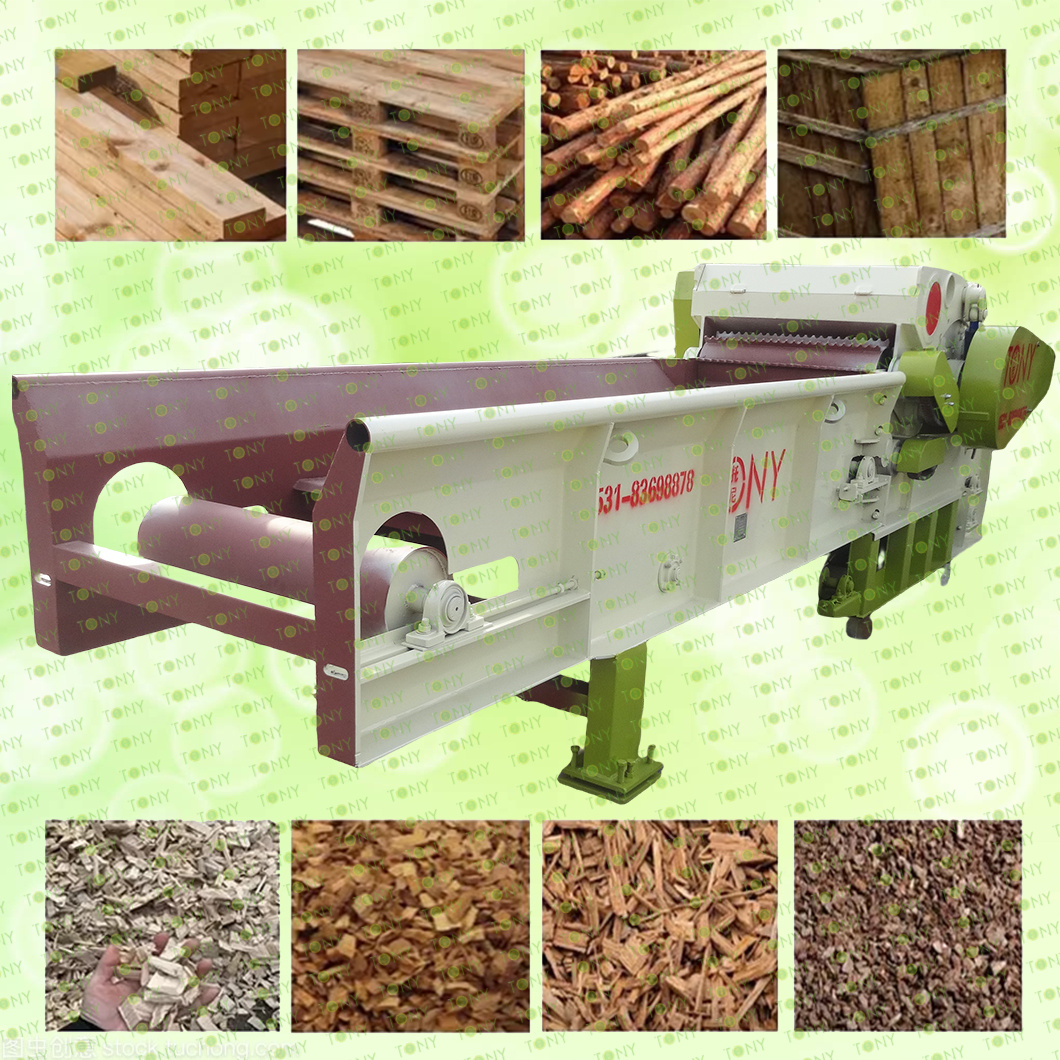

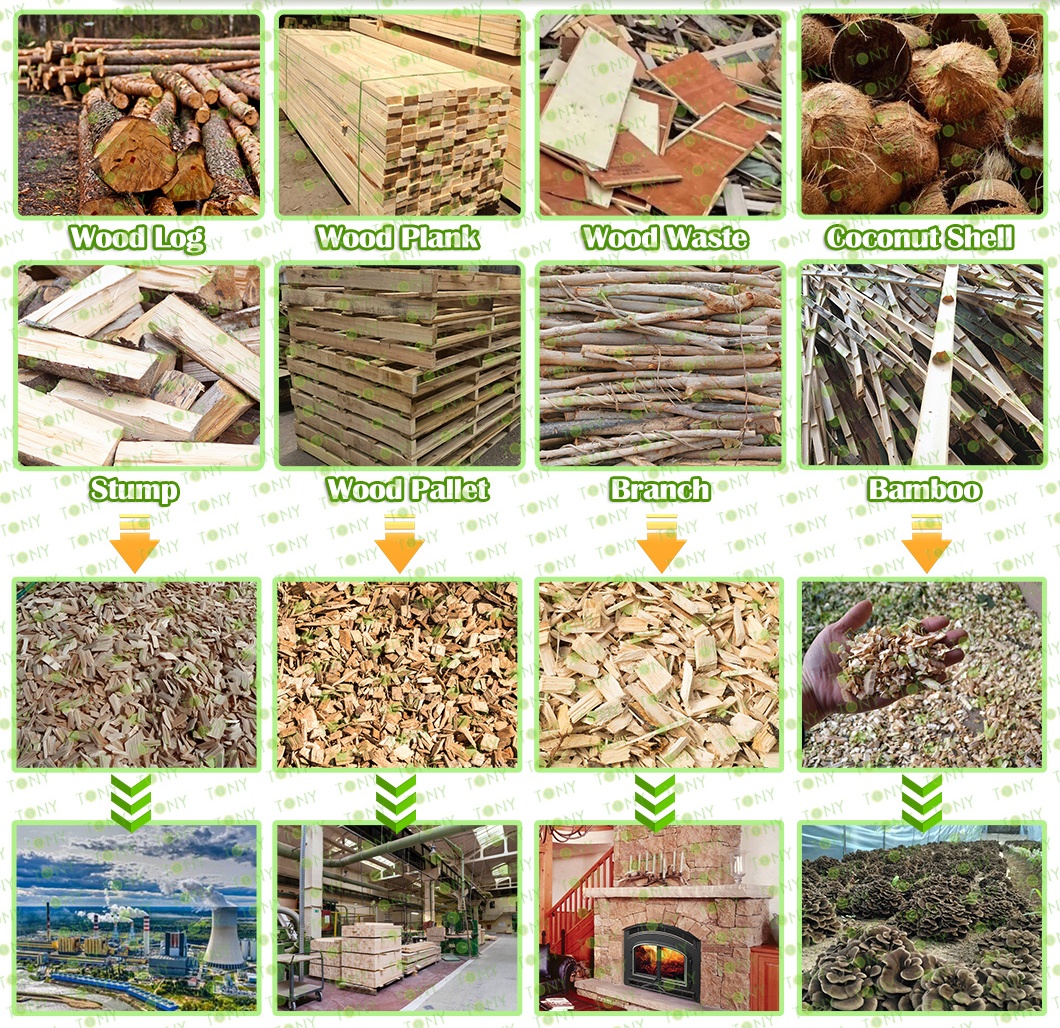

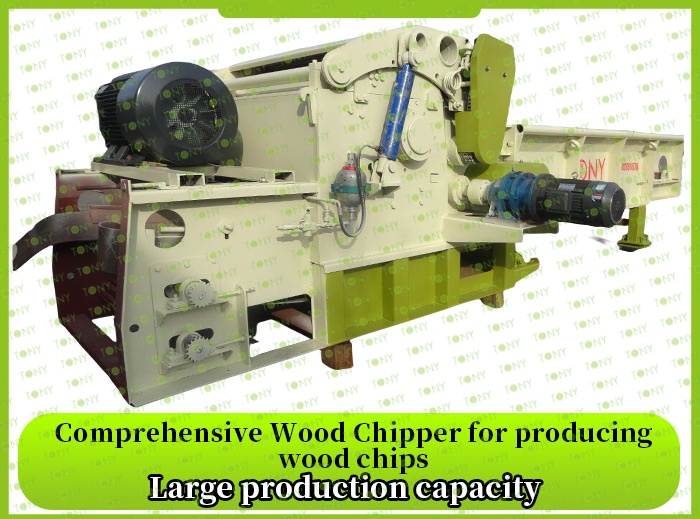

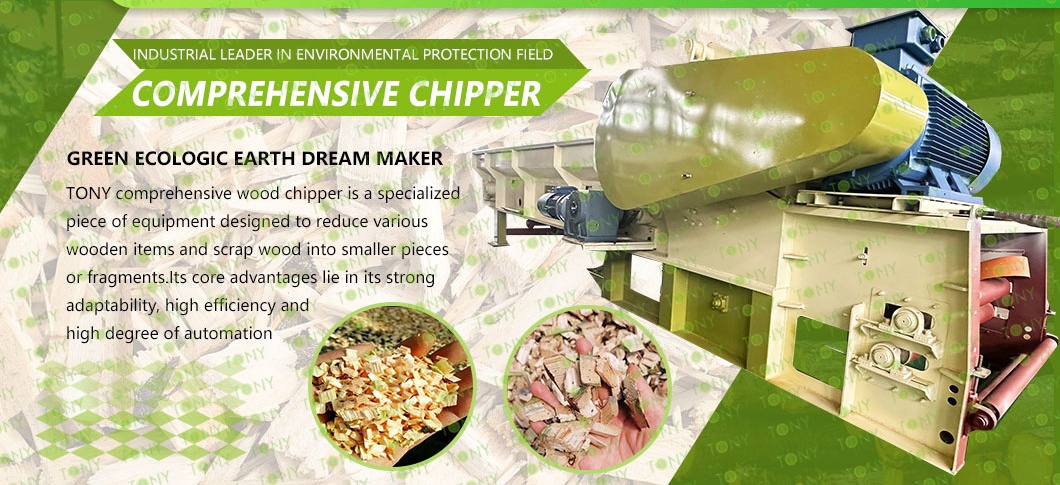

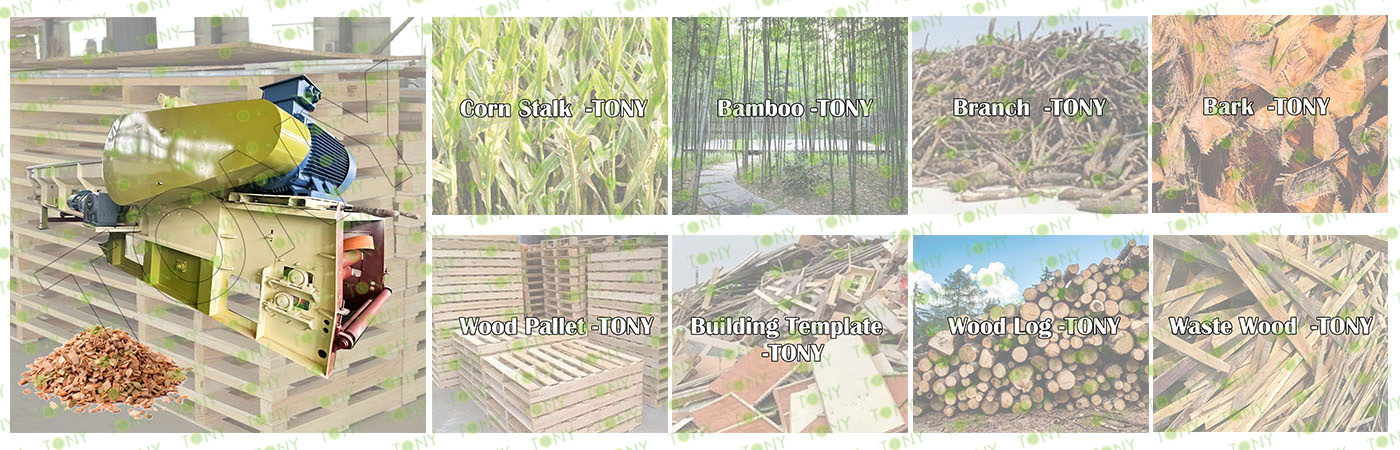

TONY Comprehensive Chipper is a machine for producing wood chips. It applies for various raw material, such as, wood pallet, building template, wood logs, timber, furniture waste etc. TONY Comprehensive Chipper is widely used in power plant, paper plant, wood chip factories, wood pellet plant.

With the chain-type intelligent feeding, the feeding speed can be automatically adjusted according to the main motor load.

TONY Brand Comprehensive Wood Chipper is operated at full load to avoid no-load operation, which makes the feeding smoother and greatly improves the production capacity. It is the ideal equipment for biomass power plants, mainly for nailed wood, wooden pallets, construction site scrap templates wooden brackets and tree piers.

In addition,TONY Comprehensive Wood Chipper can be fed mechanically or manually, but they have everything you need for a fully automated production operation. Thanks to the most advanced data interface, it is very safe to use and easy to maintain.

TONY Comprehensive Chipper operation mode is flexible, need complex installation work, can be used according to different user needs wheel traction type

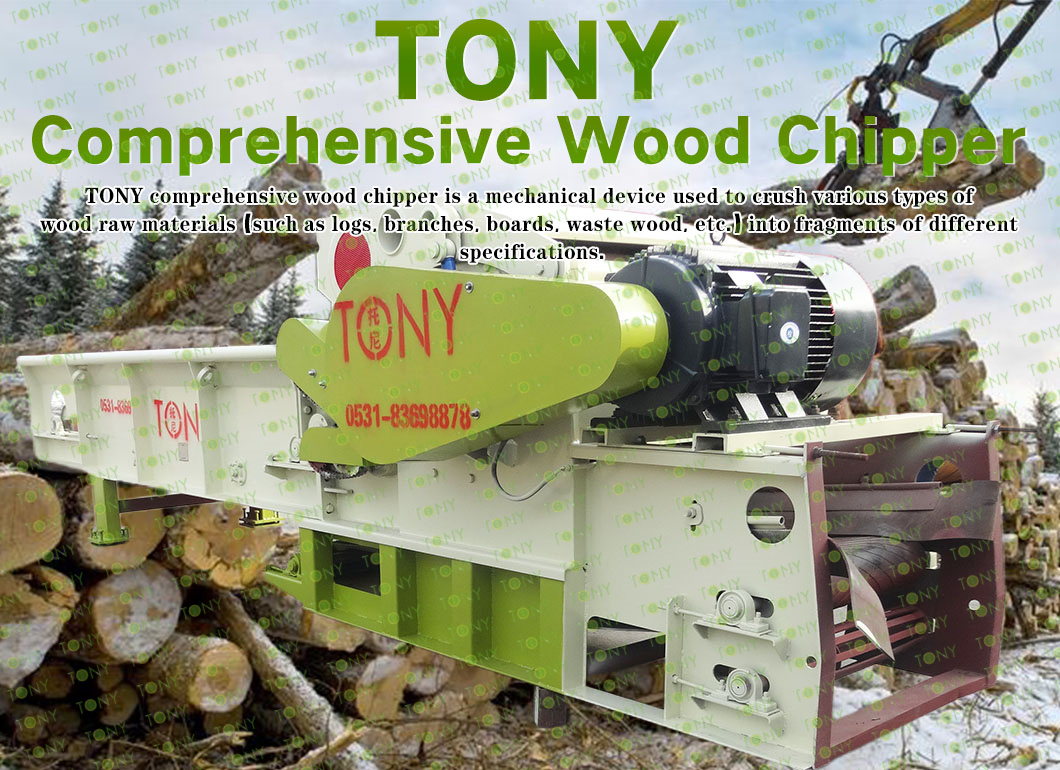

TONY Comprehensive Wood Chipper mainly relies on the impact energy to complete the crushing of wood. TONY Comprehensive Wood Chipper is working, the motor drives the rotor high-speed rotation, wood evenly into comprehensive crusher cavity, high-speed rotary hammer impact, shear timber wood is broken, torn and wood's own gravity to make wood from the high-speed rotating hammer head to the body panel, screen, at the bottom of the rotor and sieve plate, crushing wood smaller than the screen mesh size fraction Through the sieve plate, is greater than the screen hole size of wood resistance continues to hit by the hammer on the sieve plate and grinding.

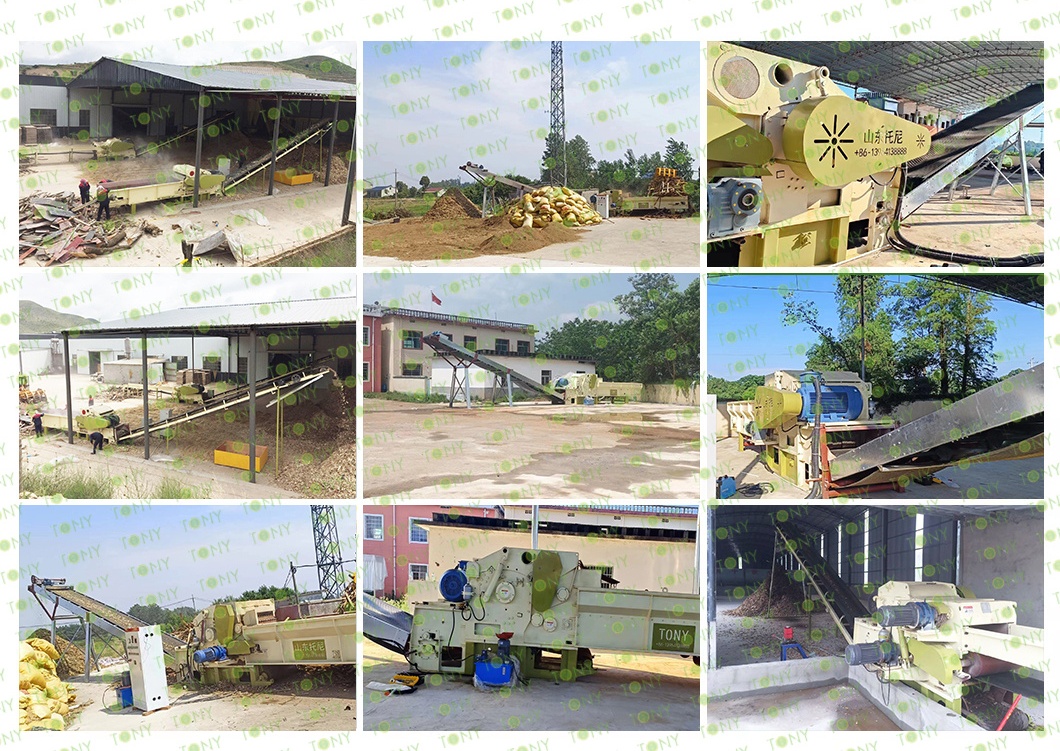

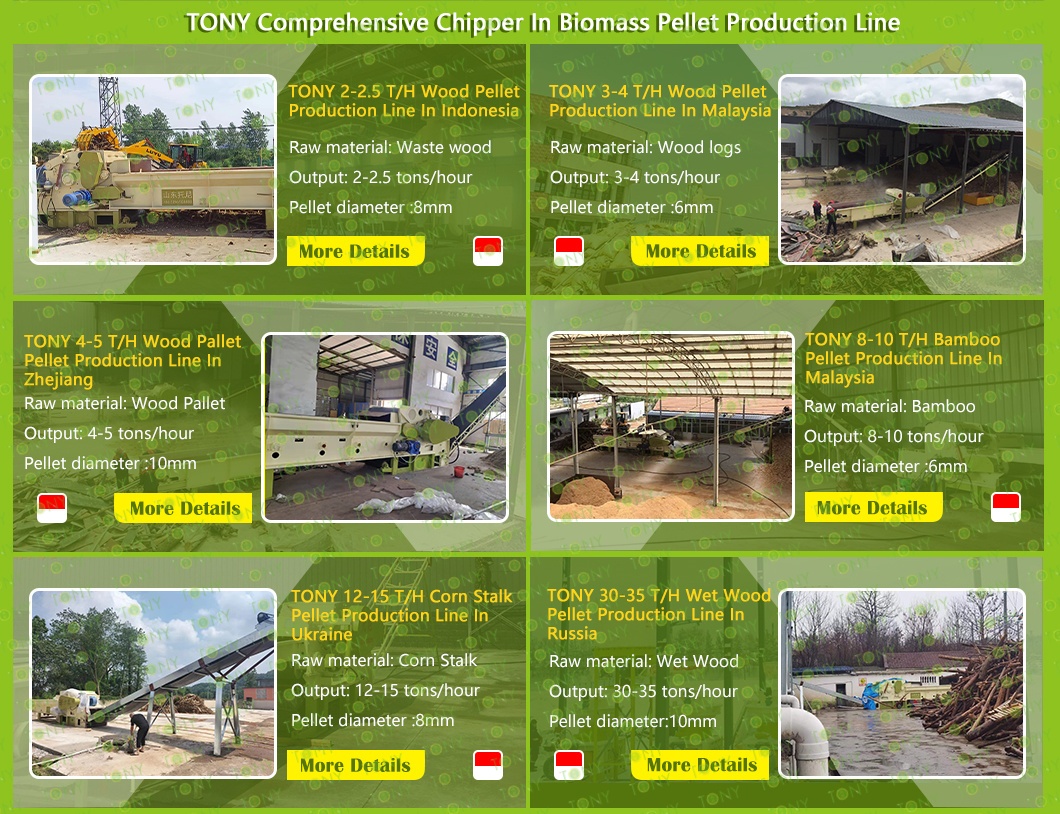

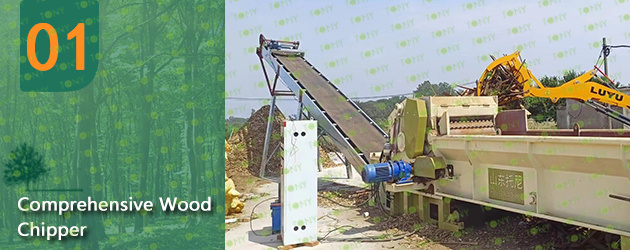

TONY Comprehensive Wood Chipper On Show	TONY Comprehensive Wood Chipper On Clinets Site

Wood Chipper Model-Hammer Head Type
NO	Model	Power	Capacity	Hammer Head QTY	Inlet Size WidthLengthHeight	Max Processing Diamater	Out Chips Size	Weight	Main Machine Machine Size
1	TPC1000	90KW	7-10TPH	16Pieces	1m4.5m45cm	25CM	25-55mm-Adjustable	9.8T	810014002125MM
2	TPC1000	110KW	8-10TPH	16Pieces	1m4.5m45cm	25CM	25-55mm-Adjustable	9.8T	810014002125MM
3	TPC1300-600	132KW	10-15TPH	24Pieces	1.3m4.5m60cm Chain Inlet	30CM	25-55mm-Adjustable	13.8T	910019002220MM
4	TPC1300-600	160KW	12-15TPH	24Pieces	1.3m4.5m60cm Chain Inlet	30CM	25-55mm-Adjustable	13.8T	910019002220MM
5	TPC1400-600	200KW	14-20TPH	24Pieces	1.4m4.5m60cm Chain Inlet	35CM	25-55mm-Adjustable	17.8T	1010024002525MM
6	TPC1400-600	220KW	15-20TPH	24Pieces	1.4m4.5m60cm Chain Inlet	35CM	25-55mm-Adjustable	17.8T	1010024002525MM
7	TPC1400-700	250KW	20-30TPH	24Pieces	1.4m4.5m70cm Chain Inlet	35CM	25-55mm-Adjustable	17.8T	1110024002525MM
8	TPC1600-1000	315KW	25-35TPH	32Pieces	1.6m4.5m1m Chain Inlet	40CM	25-55mm-Adjustable	25.8T	1210024002825MM
9	TPC1850-1000	355KW	30-40TPH	32Pieces	1.8m4.5m1m Chain Inlet	40CM	25-55mm-Adjustable	35.8T	1310025002925MM
10	TONY8000	400KW	35-80TPH	28Pieces	1.8m4.5m1.2m Chain Inlet	55CM	25-55mm-Adjustable	55.8T	1410028003125MM
11	TONY10000	630KW	50-100TPH	32Pieces	1.8m4.5m1.5m Chain Inlet	60CM	25-55mm-Adjustable	65.8T	1510030003225MM

TONY Wood Chipper Model-Blades Type
NO	Model	Power	Capacity	Fly Knives QTY	Inlet Size WidthLengthHeight	Max Processing Diamater	Out Chips Size	Weight	Main Machine Machine Size
1	TPQ216	55KW	4-7TPH	2Pieces	50cm4.5m50cm	20CM	25-55mm-Adjustable	4.8T	580019001200MM
2	TPC1000	90KW	7-10TPH	6Pieces	1m4.5m45cm	20CM	25-55mm-Adjustable	9.8T	810014002125MM
3	TPC1000	110KW	8-10TPH	6Pieces	1.3m4.5m60cm Chain Inlet	25CM	25-55mm-Adjustable	9.8T	810018002225MM
4	TPC1300-600	132KW	10-15TPH	6Pieces	1.3m4.5m60cm Chain Inlet	30CM	25-55mm-Adjustable	13.8T	910019002220MM
5	TPC1300-600	160KW	12-15TPH	6Pieces	1.4m4.5m60cm Chain Inlet	30CM	25-55mm-Adjustable	13.8T	910019002220MM
6	TPC1400-600	200KW	14-20TPH	6Pieces	1.4m4.5m60cm Chain Inlet	35CM	25-55mm-Adjustable	17.8T	1010024002525MM
7	TPC1400-600	220KW	15-20TPH	6Pieces	1.4m4.5m70cm Chain Inlet	35CM	25-55mm-Adjustable	17.8T	1010024002525MM
8	TPC1400-700	250KW	20-30TPH	6Pieces	1.6m4.5m1m Chain Inlet	35CM	25-55mm-Adjustable	17.8T	1110024002525MM
9	TPC1600-1000	315KW	25-35TPH	6Pieces	1.8m4.5m1m Chain Inlet	40CM	25-55mm-Adjustable	25.8T	1210024002825MM
10	TPC1850-1000	355KW	30-40TPH	6Pieces	1.8m4.5m1.2m Chain Inlet	40CM	25-55mm-Adjustable	35.8T	1310025002925MM
11	TONY8000	400KW	35-80TPH	6Pieces	1.8m4.5m1.5m Chain Inlet	55CM	25-55mm-Adjustable	55.8T	1410028003125MM
12	TPQ81138	560KW	40-50TPH	6Pieces	1.3m*4.5m Belt Inlet	40CM	25-45mm-Adjustable	32.8t	1510025701933MM
13	TONY10000	630KW	50-100TPH	6Pieces	1.8m4.5m1.5m Chain Inlet	60CM	25-55mm-Adjustable	65.8T	1510030003225MM

1. Feeding Chain Plate: All models adopt feeding chain plate, chain plate is Q345 steel plate.

2. The Main Machine Includes: Main machine box, upper and lower feeding structure, spindle cutter roller, motor, etc.

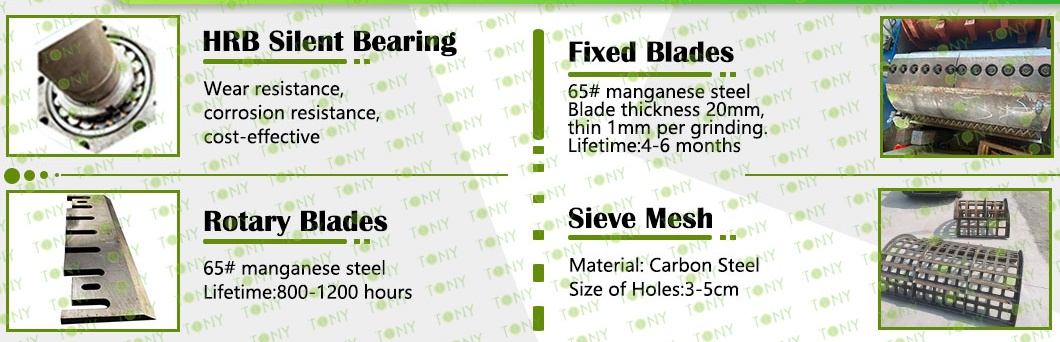

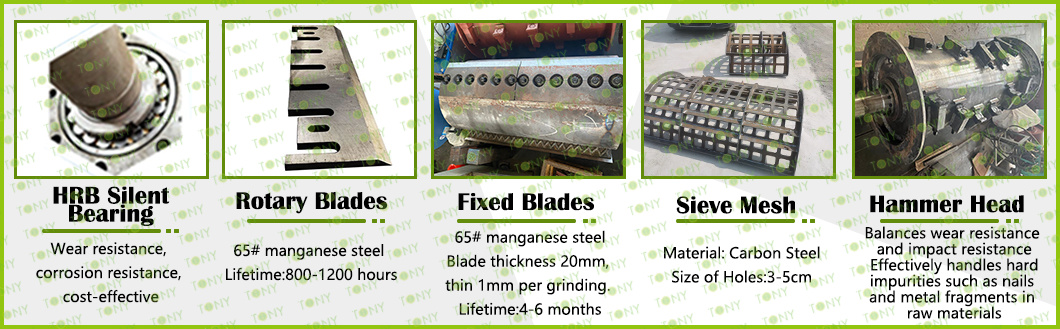

3. Wearing Parts: Flying blade, fixed blade, bearing, triangle belt,etc.

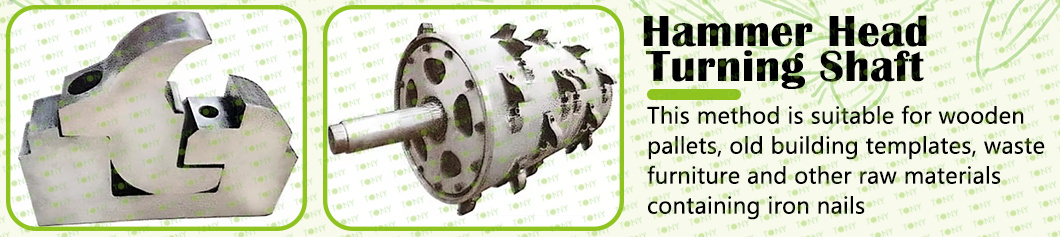

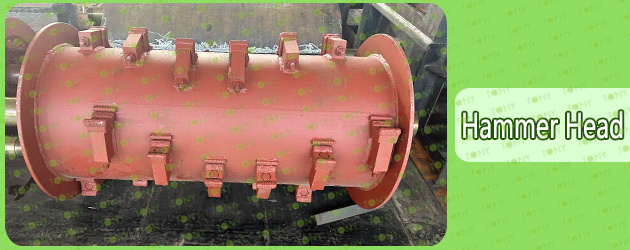

4. The Blade Material Is H13 Steel:The hammer head is made of high manganese steel Mn13Cr2 or Mn13, and the surface is surfacing with YG8 carbide particles.

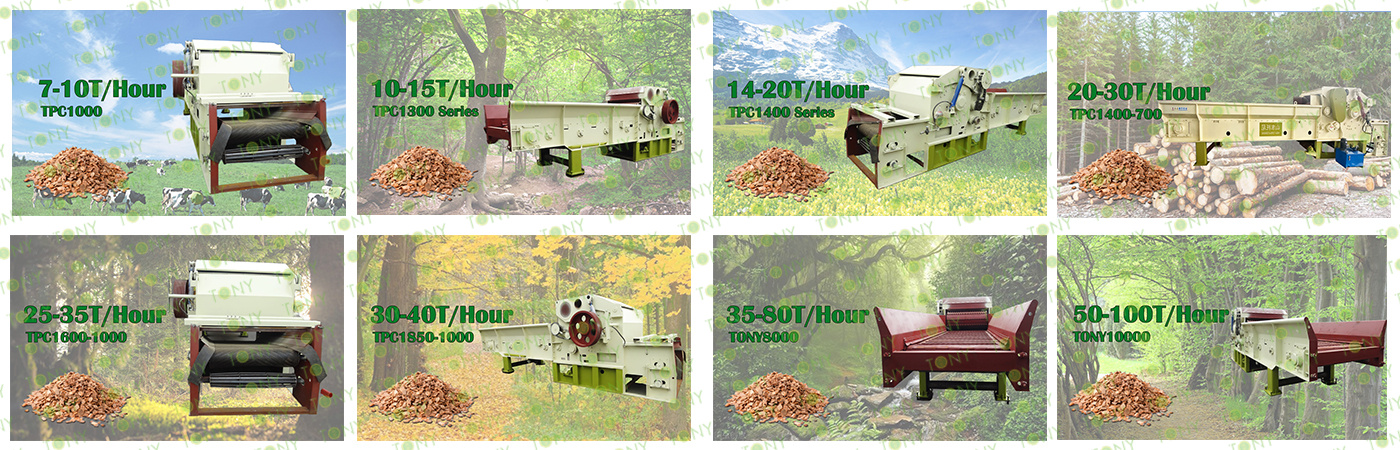

TONY Comprehensive Wood Chipper has a variety of models, according to the customer production of different models, with different output.

You get what you pay for. The price always depends on the value. Because the Comprehensive Wood Chipper market is currently more chaotic, customers must be careful to buy!

To make a purchase decision after a comprehensive inspection of a number of comprehensive indicators such as product quality, manufacturer scale strength, pre-sales and after-sales service ability, research and development design ability, rather than just looking at the price!

Please note: if your purchase cost is very low, the later use cost will be very high! Because the purchase of very low cost equipment is likely to cause you to face endless maintenance later, continuous downtime and maintenance will delay your production and make you pay more money.

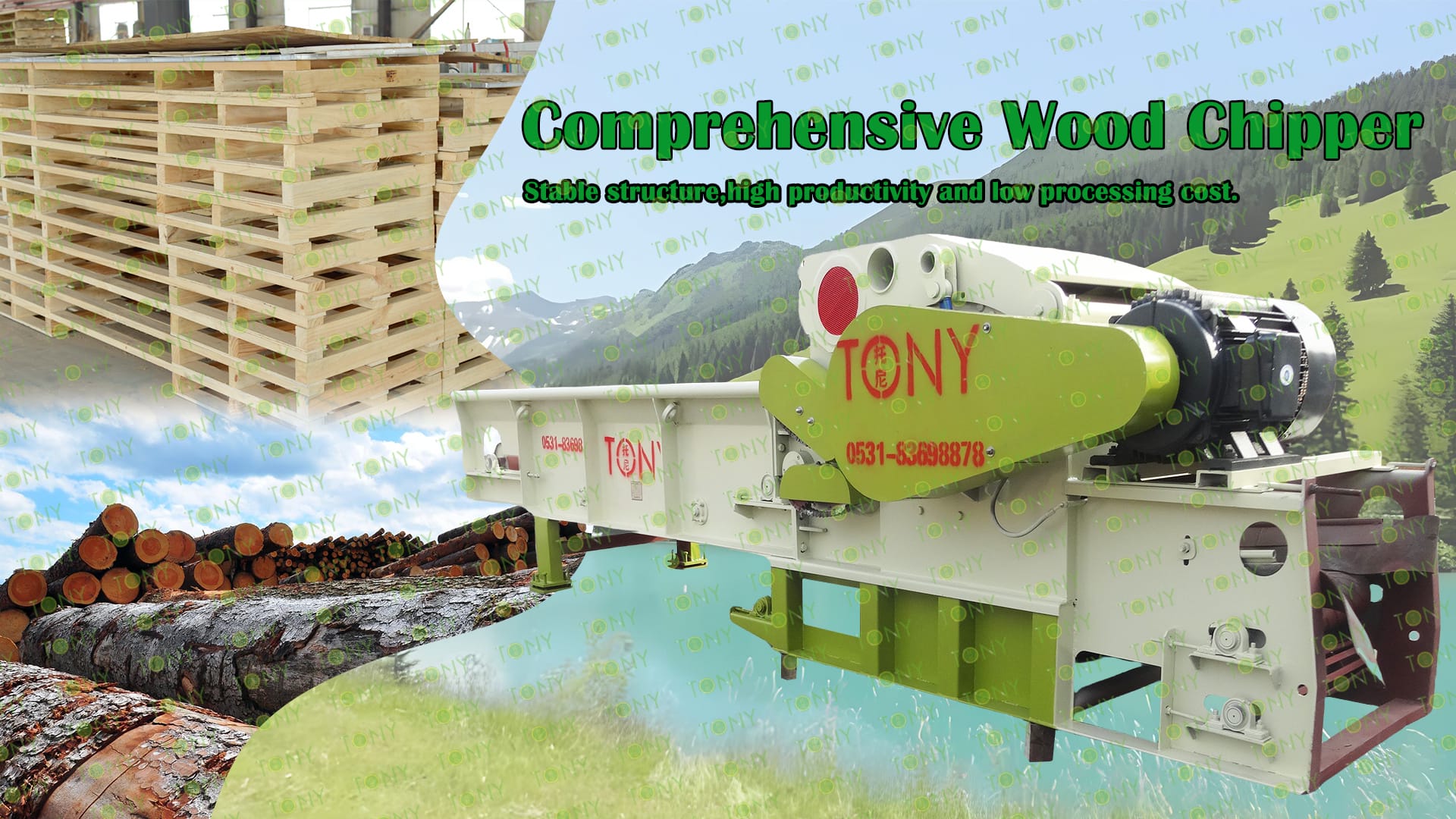

1.Stable structure,high productivity and low processing cost.

2.The size of the feed port is large,which facilitates the entry of materials and in increase the production capacity.

3.The number of rotor blades is adjustable,the material is even after crushing.

4.The material adapts to a wide range,not subject to moisture restrictions.

5.Optimize the electrical system, adopt automatic control and remote control operation, if the upper rotating part of the machine encounters resistance, it will automatically reverse rotation, so as to protect the main motor from high load operation.

6.The frame of the whole machine is made of square tube manganese steel, which is widened and lengthened to ensure the stable operation of the machine.

Factors such as the use of renewable energy such as biomass due to the consumption of traditional energy are driving the wood chip market.

In addition, the demand of the pulp industry is increasing, in which wood chips are used as raw material for pulp production, which also expands the wood chips market.

Furthermore, wood chips have been used for power plants and heat generation.

	1. TONY Comprehensive Wood Chipper is remotely controlled for automatic feeding, with convenient and fast operation and high production efficiency. 2. TONY Comprehensive Wood Chipper operates smoothly, with multiple rolling blade rotors capable of continuous crushing and undergoing dynamic balancing treatment. 3. TONY Comprehensive Wood Chipper is durable and uses steel structural components, with solid and reliable material selection, high-power self-aligning bearings, and a long service life. 4. TONY Comprehensive Wood Chipper has low operating cost and low power; The material selection of the cutting blade is excellent, and the blade and hammer head can be changed freely according to the raw materials, truly achieving one machine with multiple uses. 5. TONY Comprehensive Wood Chipper is easy to move and can produce trailer mobile crushers according to customer requirements, making it convenient for field production. 6. For wood with large volume and nails, it can be fed and crushed in one go, truly achieving no jamming, high output, and no fear of nails. 7.Strong structure ensure wood chipper run steadily without ground foundation. and the blade material is H13, anti-wearing, prolonging service life, which can cut hard wood. 8.Large inlet size, applied to a variety of materials. feeding method adopts feeding chain plate(Q345 steel plate material), feeding material smoothly and evenly.

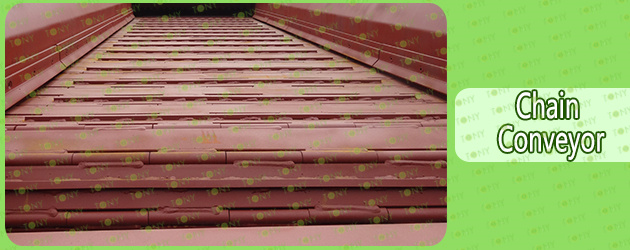

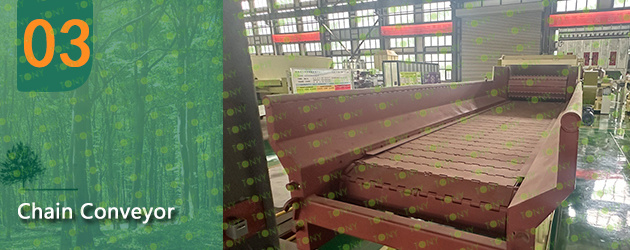

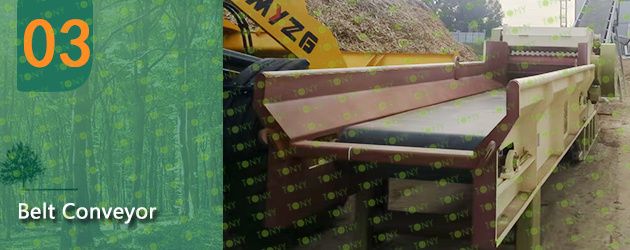

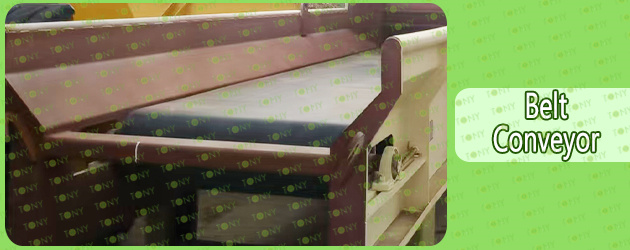

Feeding System---Chain Conveyor 1.Normally, TONY Machinery adopts two Feeding System: feeding blet conveyor or feeding chain conveyor (according to different material). 2.For large capacity TONY Comprehensive Wood Chipper, it usually adopts chain conveyor, for small model wood chipper, it usually adopts belt conveyor. 3. Compared with belt conveyor, chain plate conveyor has higher wear resistance and is not afraid of nails

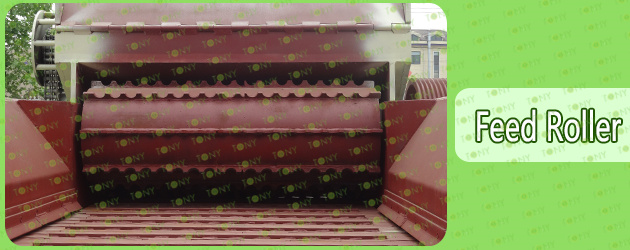

	TONY Comprehensive Wood Chipper--- Feed Roller 1. Feed roller adopts 45# Mn steel, with strong abrasion and precise bite force, the strength and performance higher than welded 2. Reasonable design and structure, good crushing effect, uniform effect 3. Hydraulic control feeding, raw material thickness can be adapted, a multi-purpose machine, a wider range of application

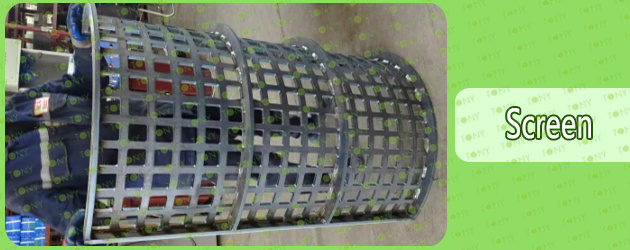

TONY Comprehensive Wood chipper--- Screen 1.The size of the wood chips is controlled by the size of the mesh holes. Generally, the size of the broken wood chips is 25-55mm 2.we can also customize it according to customer requirements. 3. Screens are made of high-quality materials, long service life, high wear resistance, not easy to damage, reduce enterprise costs

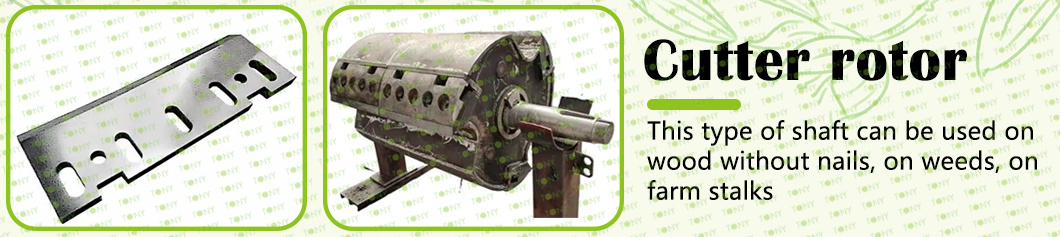

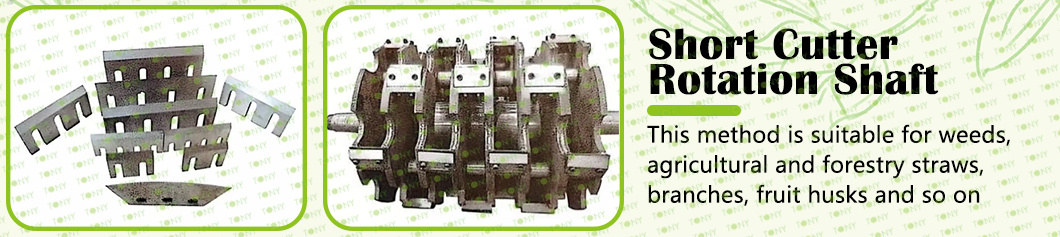

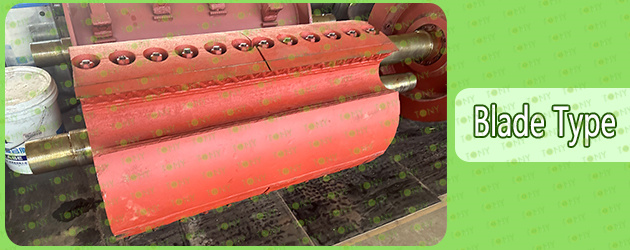

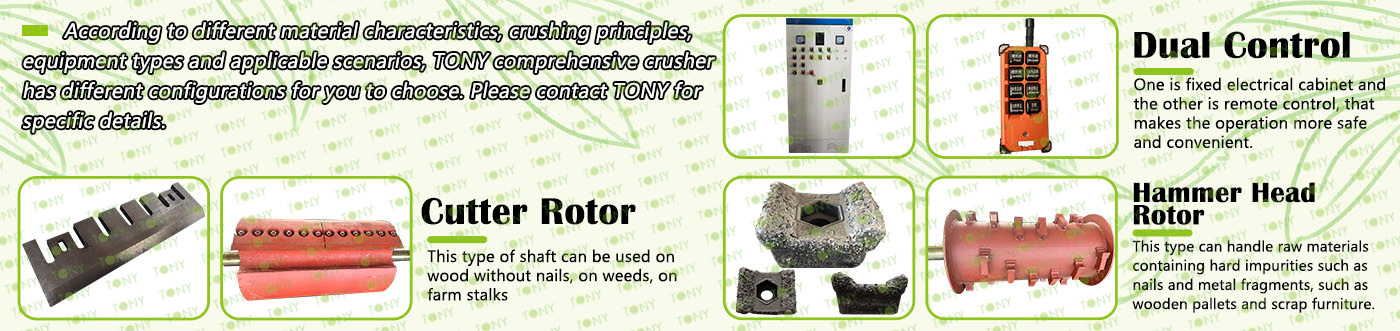

Option 1 :Blade Type 65# manganese steel, anti-wearing, prolonging service life, which can cut hard wood. It can crush the wood log, timber, furniture waste etc..	Option 2 :Hummer Type For our heavy duty wood crusher, there is hammer rotor for your raw material. It can crush the construction waste, pallet with nails etc..

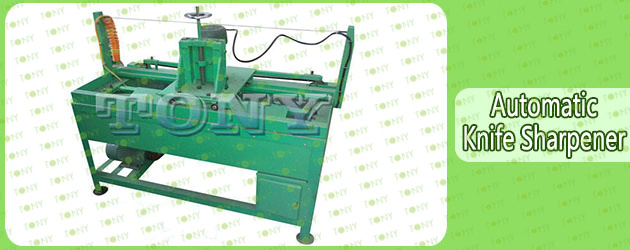

Automatic Knife Grinder 1. Automatic Knife Grinder is used to maintain and improve the cutting efficiency of the chipper blade. 2. It grinds the blade in an automated way to keep the blade sharp and good cutting performance. 3.High degree of automation, reduce labor, reduce labor intensity 4. High safety performance to ensure safety and reliability

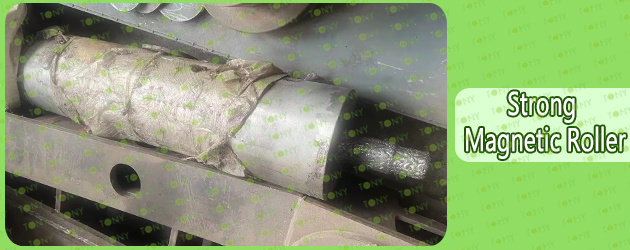

	Strong Magnetic Roller: 1.To remove iron ect. 2. Prevent nails and other debris from entering the crusher and damaging the blade or hammer of the crusher 3. Effectively improve the service life of the crusher 4. General customers will choose strong magnetic roller, practicality is relatively high

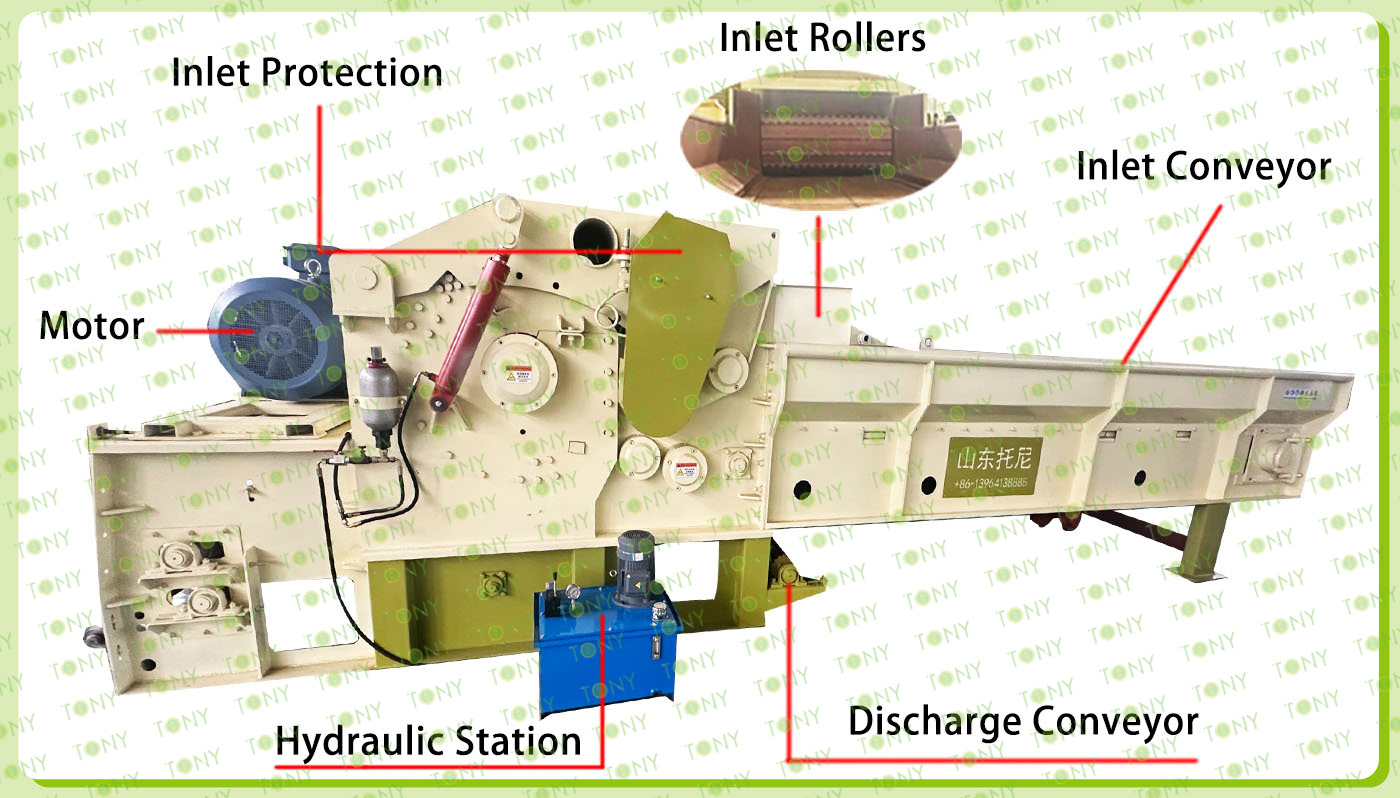

Main Comprehensive Wood Chipper 1.Model:TPC1000 2.Capacity:7-10T/hour (lt depends on client sawmaterials) 3.Power.90kw (Stripping Material Motors) 4.Hammer Head QTY 16pieces 5.Out Chips Size 25-55mm-Adjustable

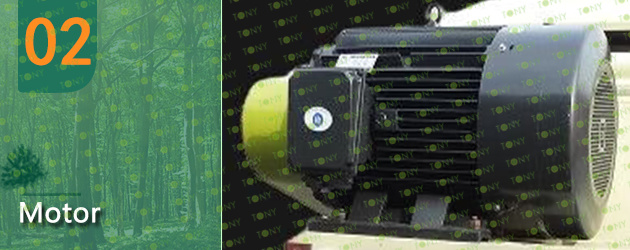

	Main Motor： 1. Using pure copper core national standard motor 2. High efficiency and energy saving: The pure copper core motor has good electrical conductivity and little heat loss after the current passes through, which can significantly improve the efficiency of the motor, thereby reducing energy consumption and saving electricity bills. 3. Strong durability, well-known brand, reliable quality
Chain Feed Conveyor： 1.The feeding chain conveyor is made of high manganese steel with the thickness 10mm, which is a typical anti-wear steel, cast organization is austenite and carbide. 2.Via the water toughening treatment, the surface would be rapidly hardening and that make its internal remains the good toughness and deformability under the condition of strong impact and extrusion and the hardening layer with good wear resistance.

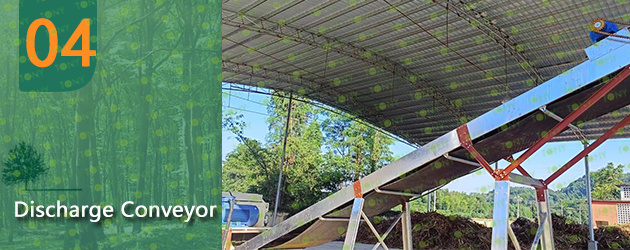

	Discharge Conveyor: 1. Optional galvanized material, higher strength, wear resistance and corrosion resistance. 2. Can be customized, according to the actual production needs to adjust the length and specifications

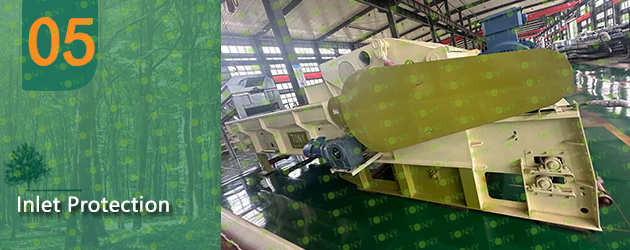

Inlet Protection: 1. The air inlet protection material is made of thickened steel plate, which is strong and durable 2. Strong protection, long service life, reduce maintenance rate 3. Tony brand high-quality raw materials processing, reliable quality, guaranteed
	Inlet Rollers: 1. Large size feeding pressure roller 2. The clearance can be adjusted as needed to achieve different particle size crushing requirements 3. Good crushing effect, uniform size 4. Reasonable design and structure, not easy to slip 5. Powerful processing capacity, high crushing efficiency

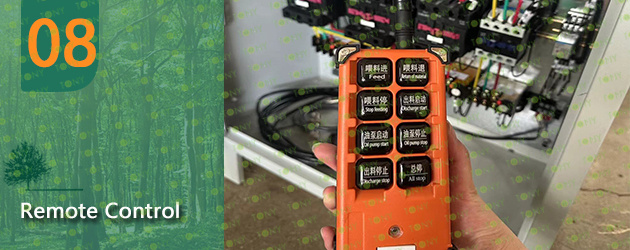

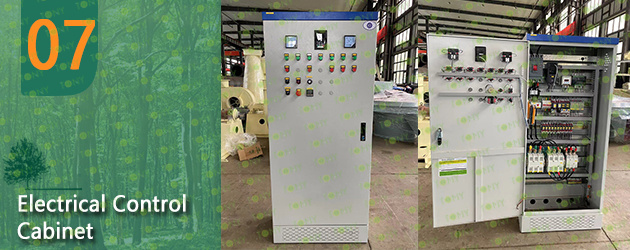

Dual control, One is fixed electrical cabinet and the other is remote control, that makes the operation more safe and convenient.

1.Feeding Hopper Size

What is the diameter of your raw material? This point is very important. As each wood chipper has certain maximum size.

2.Capacity

Different models of wood chipper are with different capacity, please let us know your capacity requirement, we can help you choose suitable model.

3.Hammer/Blade Quality

The hammer/Blade quality determines service life. Choose the material with anti-wearing.

4.Engine

We have electric and diesel engine type. If you use your wod chipper in the factory, you can choose electric type. If you want to use the wood chipper outside or in the forestry, diesel engine wood chipper is suitable for you.

1 Check the parts and fasteners before each use.

2 Replace the screen, wash the crusher should pay attention to avoid water rushing into the motor and control box and bearing, so as not to affect the service life, always pay attention to maintain the cleanliness of the crusher.

3 In order to extend the service life of the bearing, lubricating oil should be added regularly.

4 If there is any abnormal situation in the production, it should be stopped immediately for inspection, and then used after the maintenance is normal

5 The machine is inspected every six months.

6 Special personnel should be set up for maintenance, and make records.

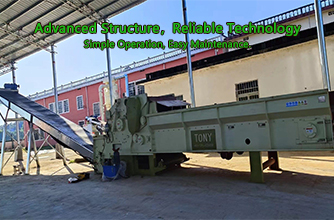

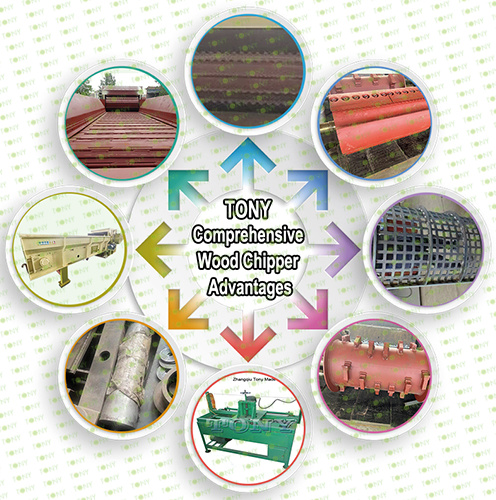

1. Advanced structure and reliable technology

2. High throughput capacity and high quality chips

3. Low-maintenance and environment-friendly

4.Cost-efficient and space-saving

5.Chipping of all kinds of wood

6.Guaranteed long running time

7.Hydraulic control, simple operation, easy maintenance.

8.High hardness hammer head adopts high temperature quenching heat treatment, uniform hardness, sharp wear-resistant mouth, suitable for a variety of materials.
