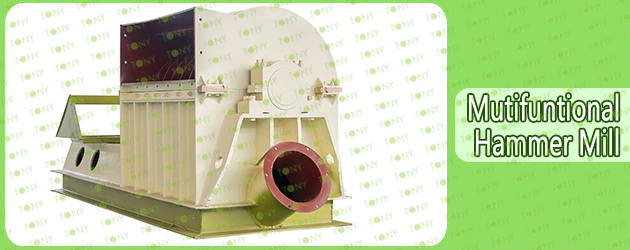

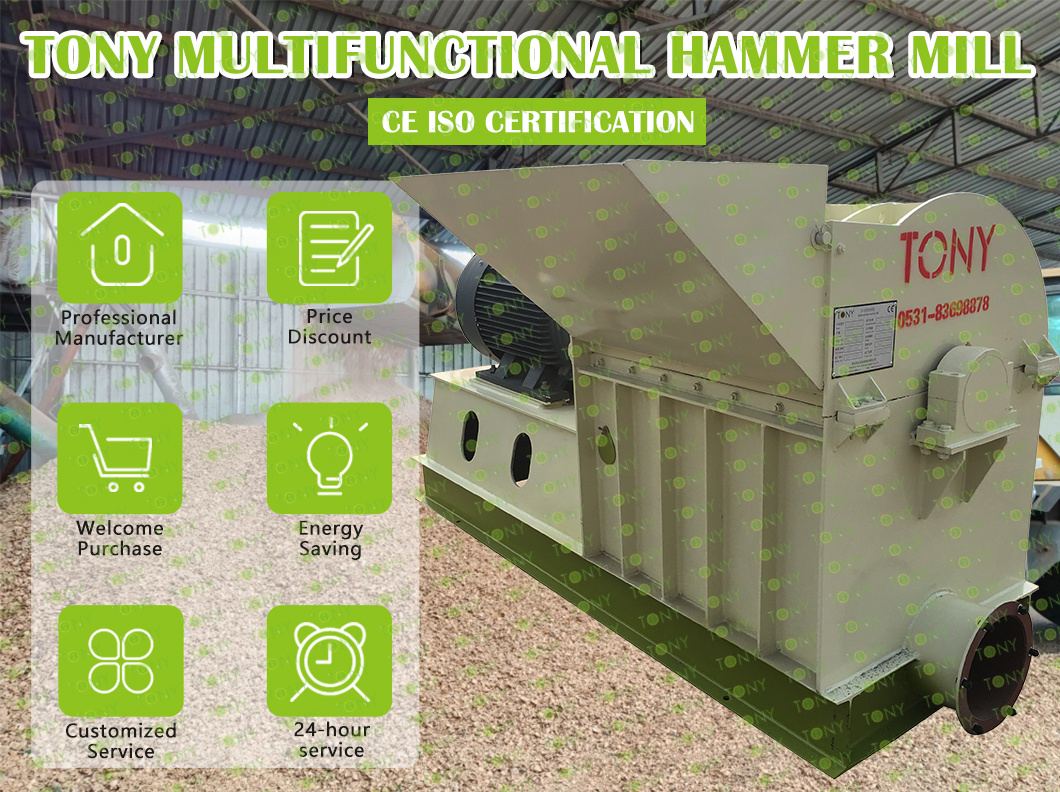

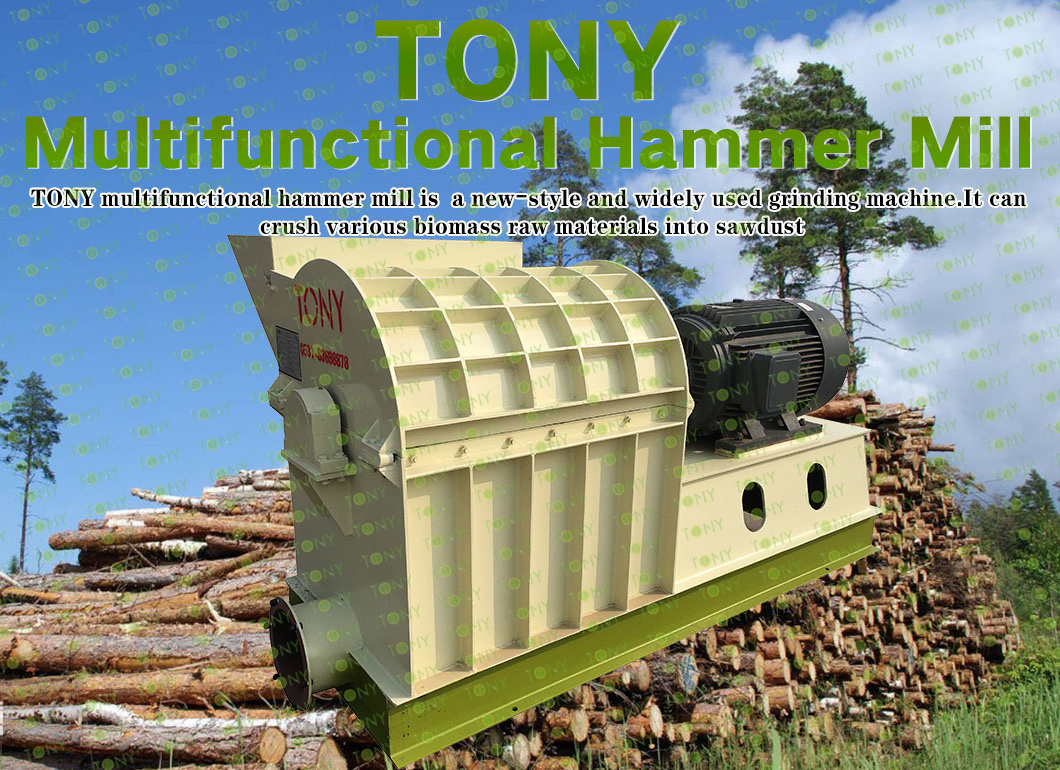

TONY Multifunctional Hammer Mill is a mechanical equipment specially used to crush waste wood, its internal structure design is very reasonable, the structure is also very compact, in the process of use with safety, durable, low energy consumption, high yield and other characteristics.After continuous improvement and innovation, TONY Multifunctional Hammer Mill is more in line with our current social needs and customer production needs

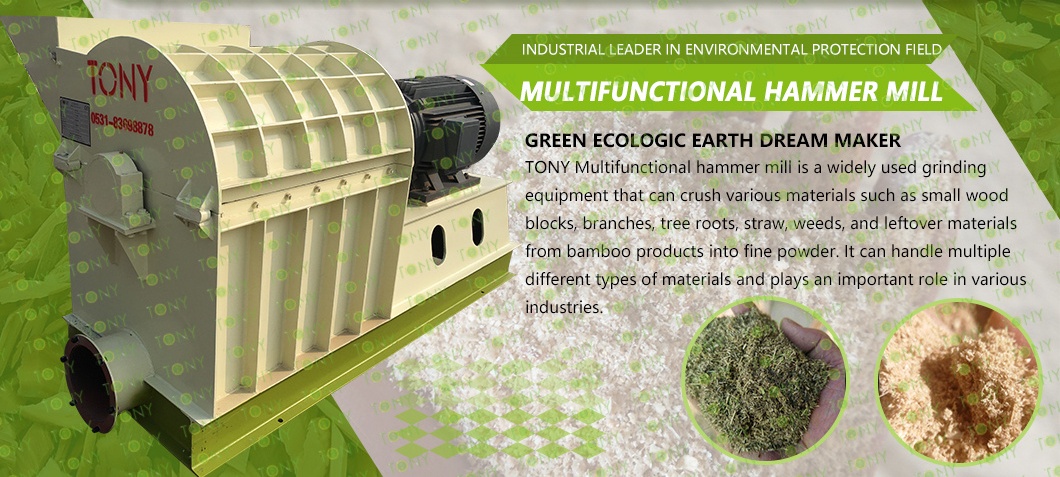

TONY Multifunctional Hammer Mill is widely used in crushing various biomass wood waste and straw material. It's the best choice to prepare milled material for pellet machine. All kinds of biological stalks, (such as corn stalk, wheat straw, cotton stalk), rice straw, rice shell, peanut shell, corn cob, small pieces of wood, sawdust, branches, weeds ,leaves, bamboo products and other waste. Which is mainly used in wood factory, feed factory, organic fertilizer factory, and so on.

TONY Multifunctional Hammer Mill have advantage of compact structure. It is strong and durable, safe and reliable, easy operation, lower noise and vibration, high efficiency and low energy consumption, etc.With double discharge to connect material and convenience to use, the spare part of the machine completely use quality steel material, and outsourcing parts using domestic optimal product.The whole machine's quality is reliable and longived.

The TONY Multifunctional Hammer Mill multi-functional crusher uses the high-speed relative motion of the movable tooth plate and the fixed tooth cross, so that the crushed material is crushed by the comprehensive effect of tooth impact, friction and impact between each other, simple structure, solid, smooth operation, good crushing effect, the crushed material can be directly discharged from the main machine grinding chamber, the size of the mesh obtained by replacing the different aperture.

The motor and the hammers are directly connected by the coupling. There is no dead angle during the crushing so the finished product is very fine. The corners of the hammers are welded with high hardness material like carbon tungsten alloy. Motor of Hammer crusher drives rotor to rotate in high speed in the crushing cavity. The materials are feeded into the machine through the upper feeding opening and are striked, impacted, sheared and grinded by high speed moving. Under the bottom of rotor, it is equipped with sieve plate. Among the crushed materials fractions that is less than mesh size are discharged through sieve plate, materials fractions that is bigger than mesh size are kept on the sieve plate to be striked and grinded by hammer and they are discharged out of machine finally. The main woriking parts of hammer crusher is the rotor with hammer. Rotor consists of main shaft, disc, pin roll and hammer. It's the best choice to prepare milled material for pellet machine.

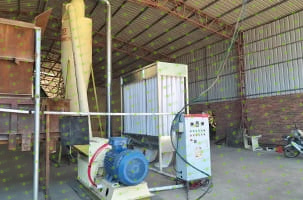

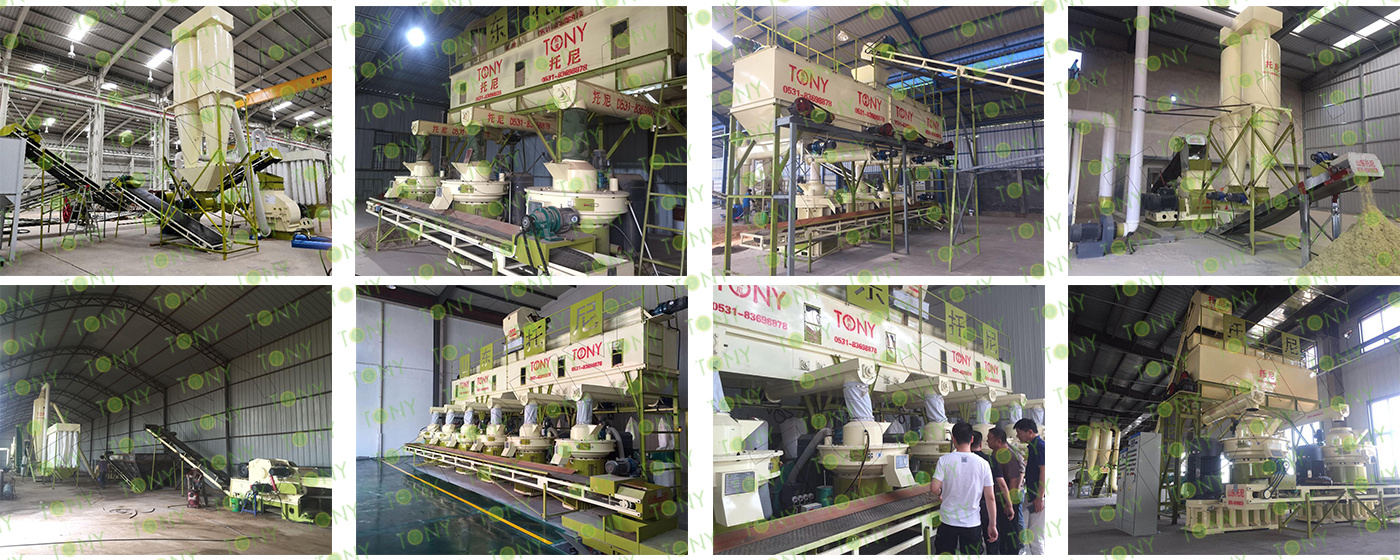

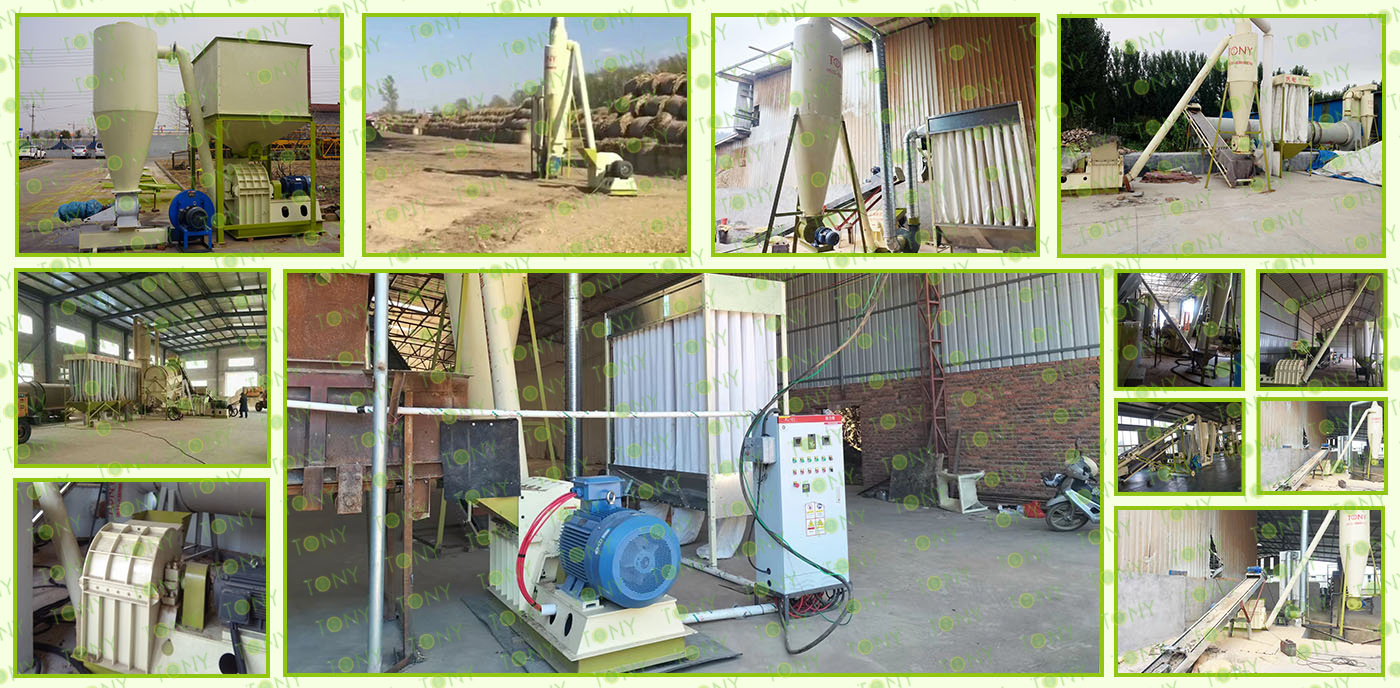

TONY Multifunctional Hammer Mill On Show	TONY Multifunctional Hammer Mill On Clinets Site

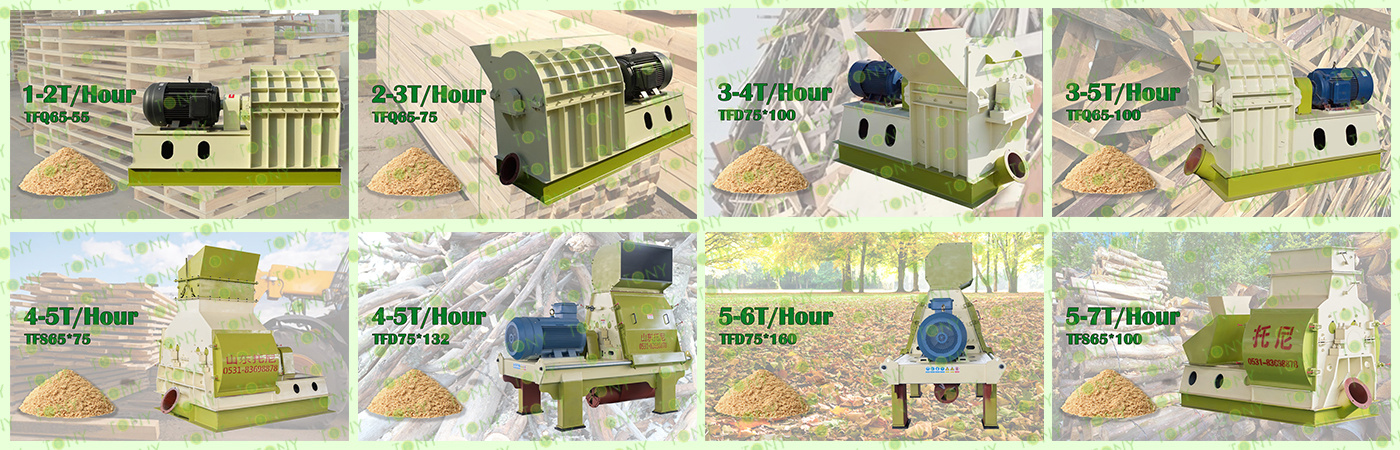

TONY Others Models For Multifunctional Hammer Mill
NO	Model	Power(KW)	Capacity(T/H)	Hammer QTY(PC)	Size:LWH(MM)	Weight(T)
1	TFQ65*27	22	0.5-0.8TPH	24	150010001100	1.1
2	TFQ65*55	37	1-1.5TPH	48	170010001100	1.5
3	TFQ65*55	45	1.5-2TPH	48	170010001100	1.5
4	TFQ65*75	55	2-2.5TPH	72	210010001100	1.9
5	TFQ65*75	75	2-3TPH	72	210010001100	1.9
6	TFQ65*100	90	3-3.5TPH	96	240010001100	2.3
7	TFQ65*100	110	3-4TPH	96	240010001100	2.3
8	TFQ75*132	132	4-5TPH	108	280016202100	5.3
9	TFQ75*160	160	5-6TPH	108	280016202100	5.3
10	TFQ130*100	200	6-7TPH	160	302016202170	6.8
11	TFQ130*100	220	7-8TPH	160	302016202170	6.8

TONY Multifunctional Hammer Mill has a variety of models, according to the customer production of different models, with different output.

To make a purchase decision after a comprehensive inspection of a number of comprehensive indicators such as product quality, manufacturer scale strength, pre-sales and after-sales service ability, research and development design ability, rather than just looking at the price!

Please note:if your purchase cost is very low, the later use cost will be very high! Because the purchase of very low cost equipment is likely to cause you to face endless maintenance later, continuous downtime and maintenance will delay your production and make you pay more money.

1.To ensure security, the feed inlet of this machine adopts self-suction design to avoid serious damage to operators.

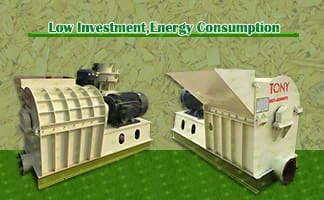

2.Low investment and energy consumption,

3.High output

4.High-quality finished products

5.Easy to operate and maintain

6.Druable, safe and reliable, low noise; Energy saving and safety

7.Wide variety of application for raw materials, high yield, suitable for installation in production line

8.It can be equipped with a separate dust discharge system, improving the workshop enviroment

9.CE approved.

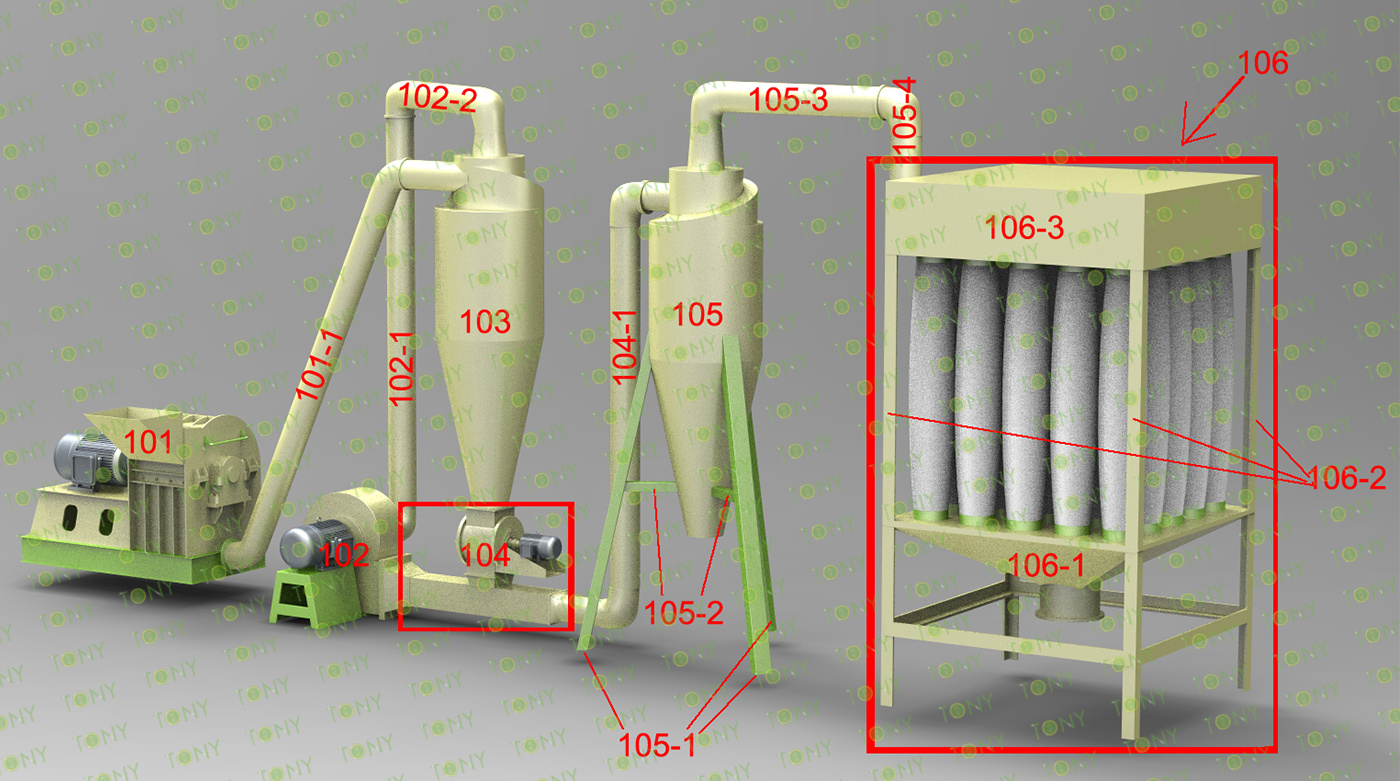

Multifunctional hammer mill works connect with air fan and cyclone,air lock ,dust filter ,after crushed ,the powder will outlet from cyclone bottom, which is very environmental protection and easy to collect.

Mulitfuntional Hammer Mill: To crush the materials into 4-12mm sawdust. 1. Energy saving and environmental protection. 2. Simple structure and convenient operation. 3. Able to meet the crushing needs of various materials 4. Low noise and meets environmental protection requirements

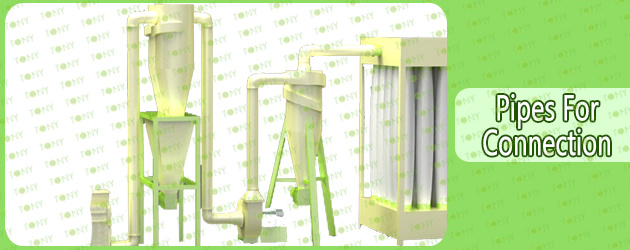

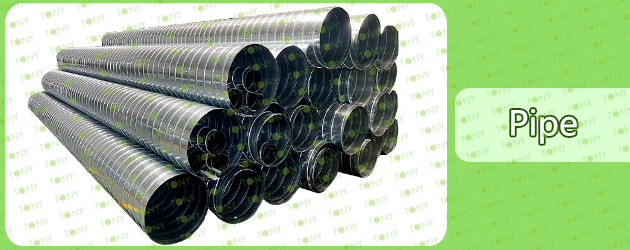

	Pipes For Connection 1. In order to ensure the quality, we are manufactured by the factory. 2. You can confirm the price of spare parts with ToNY 3. It can meet the crushing needs of various materials 4. Allow deviation, and the pipe with slight angular deviation can also be connected. 5. The effect of shock absorption and noise reduction is obvious 6. Good sealing performance, reusable.

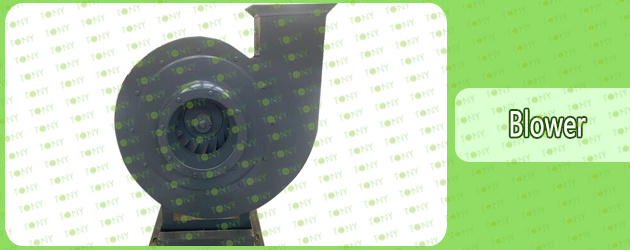

Blower: New Maerial Transport Blower, To help transport the sawdust into dryer 1.The fan on the Mulitfuntional Hammer mill is mainly used to discharge the dust generated during the pulverization process through strong suction, 2.TONY blower can reduce the concentration of dust in the air, and improve the working environment. 3.Tony manufacture it by factory to guarantee the quality.

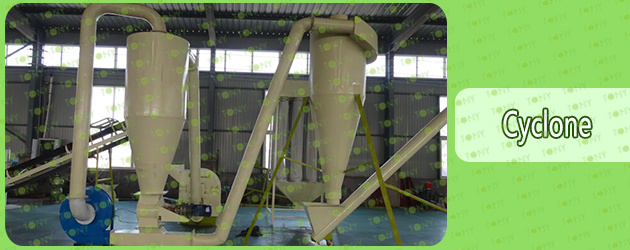

	Cyclone: Material go through cyclone and it helps to reduce dust,too; 1.The working principle of Tony Cyclone dust collector is based on the action of centrifugal force. 2.The dust-containing gas is introduced into the Cyclone. 3.The dust is separated under the action of centrifugal force and deposited at the bottom of the Cyclone, while the clean gas is discharged from the top.

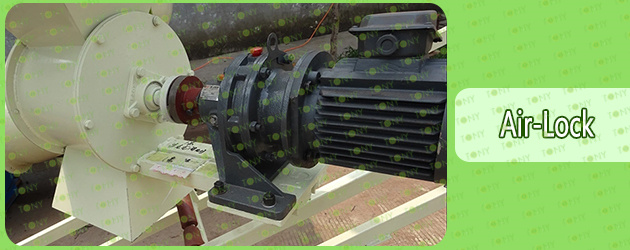

Air-lock:To prvent the outside air from entering inside 1.The main purpose of the air lock on the high-efficiency pulverizer is to reduce dust, improve the working environment, and provide a stable unloading function. ‌ 2.The air-lock is usually installed under the shackle at the rear end of the pulverizer to minimize dust during the working process.

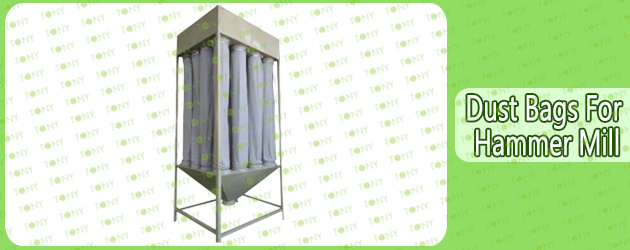

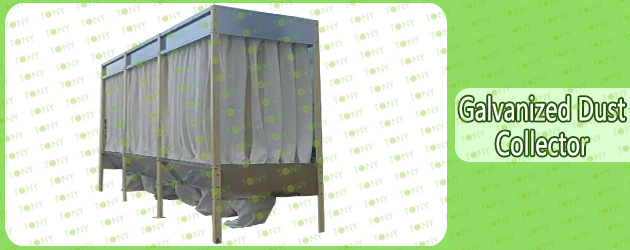

	Dust Bags For Hammer Mill: To collect the dust while in the production 1.Mulitfuntional Hammer mill: The dust bag uses high-efficiency filtration materials, which can effectively capture and filter various dust particles. Energy saving and environmental protection‌: 2. The dust collector avoids secondary dust pollution by regularly removing dust accumulation, while reducing energy consumption and operating costs, and has good energy-saving and environmental protection effects.

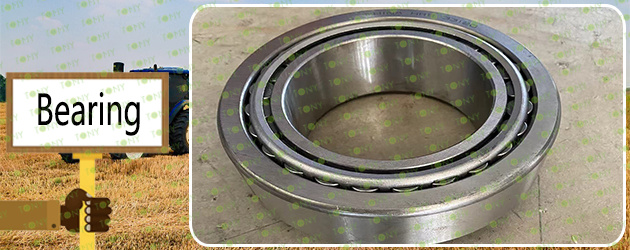

Bearing: 1.This kind of bearing can using for a long time, best quality.Bearing brands can be customized according to customer needs. 2.Standardized size, interchangeability, easy installation and disassembly, easy maintenance; 3.Only a small amount of lubricant is required for normal operation, and lubricant can be provided for a long time during operation

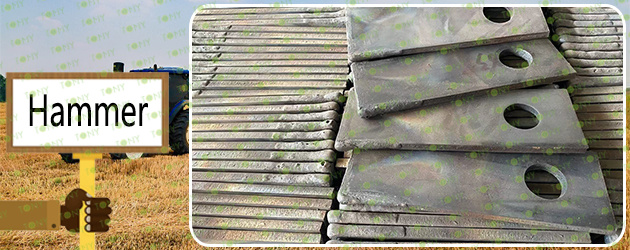

	Hammer: 1.The corners of the hammer are bead welded with high hardness material like carbon tungsten alloy. The welding layer thickness is 3mm. The lifetime is 7- 8 times by normal 65Mn overall quenching hammer. 2.The hammer is stirred in the material, like a number of cutting knives, the hammer is too thick, the efficiency is not high, but it is too thin and easy to wear. 3.The number of hammer pieces on the rotor has a great influence on the crushing ability, and the number of each hammer piece is obtained by orthogonal test. And measured by hammer density

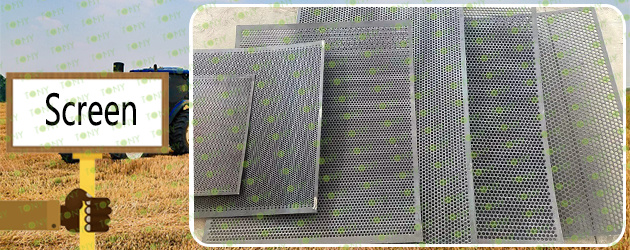

Screen: 1.The bottom diameter of screen is 4mm-12mm, thickness is greater than 4mm, the screen can be adjustedto suit the highly efficient Multifunctional Hammer Mill of different materials. The screen is an essential part of the mill, and the screen configured by TONY has long service life, good wear resistance and large bearing capacity. 3. Due to the high screening efficiency of the screen, the internal self-cleaning performance of the screen surface, no hole blocking, has significant economic benefits, and the total cost is low
	Rotor Group 1.The motor and the hammers are directly connected by the coupling. 2.There is no dead angle during the crushing so the finished product is very fine. 3.The rotor has made the balance test and can work backward.

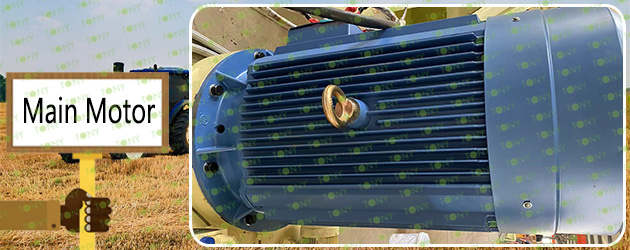

Main Motor：Using pure copper core national standard motor, 1. High efficiency and energy saving: The pure copper core motor has good electrical conductivity and little heat loss after the current passes through, which can significantly improve the efficiency of the motor, thereby reducing energy consumption and saving electricity bills. 2. Strong durability.

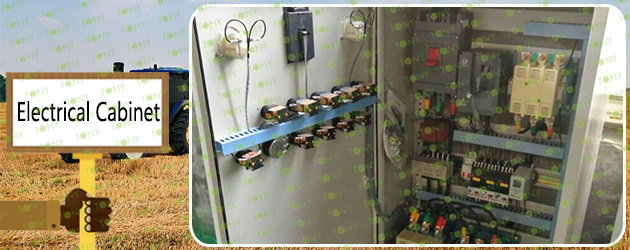

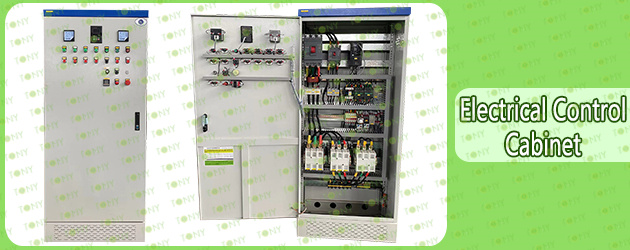

	Electrical Cabinet: 1.Automatic control for the full set mechanism including feeding system, discharging system, reverse system and etc. Highly protect the personal safety.Electrical components are used well-known brands Schneider, Delixi and so on. 2.Electronic control system has self-test; Common fault identification. Common fault memory. Common faults occur. Active start reserve pump and other functions 3.Easy to operate function: easy to operate, fast, easy to master.

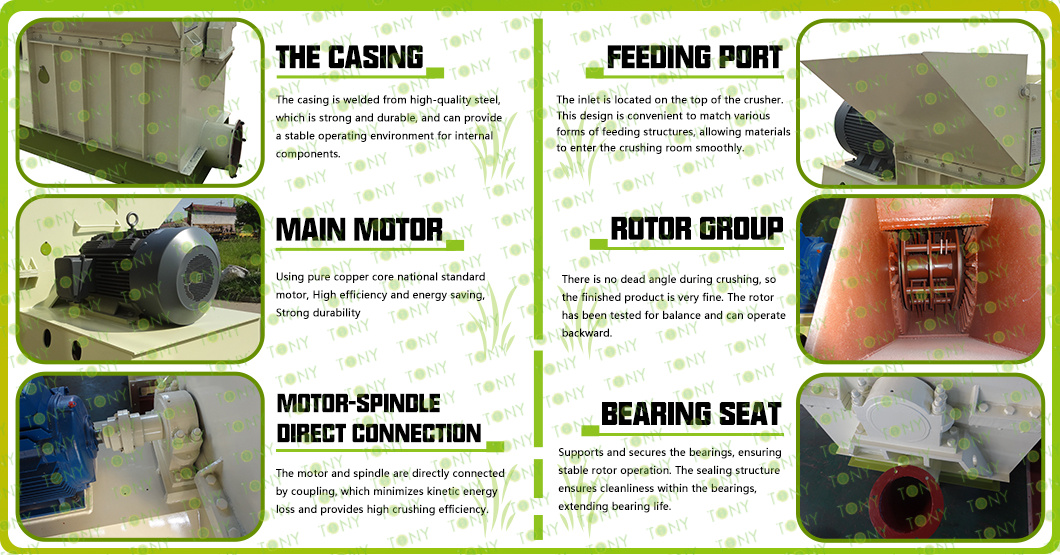

1.Case: Steel components, using high-power self-aliigning bearing, long service life

2.Feeding: Feeding automatically, easy to operate with high production rfficiency.

3.Working: Continuous grinding, and after balancing processing, stable and reliable.

4.Rotos: After balance calibration, totos can work reversely.

5.Hammers: Sided hammer,life up to 1000hours, and can be repeatedly re-grinding,low cost.

6.Usful: Be equipped with dust diacharge system, improve workshop environment.

7.Energy Consumption: Low noise, high efficiency, energy saving, safely, and protect environmental druing production process.

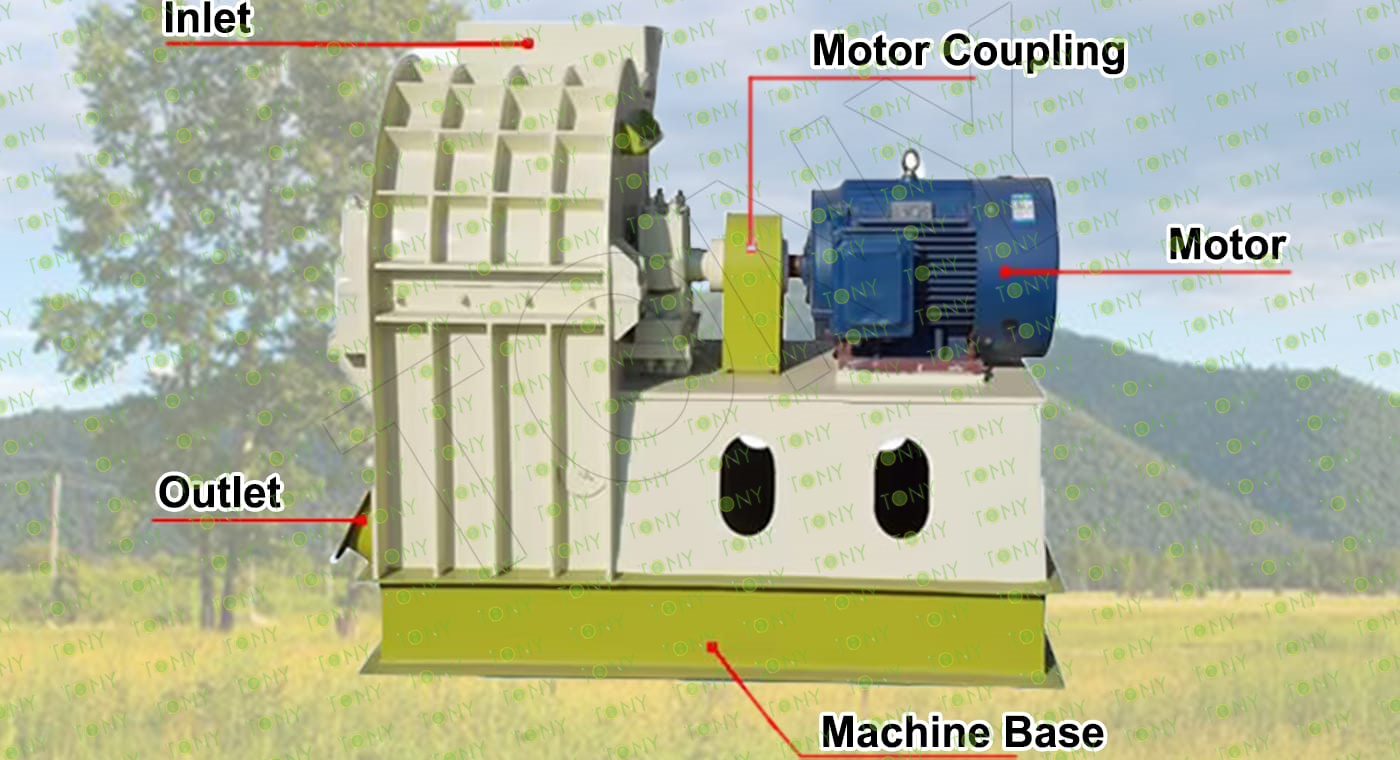

1.The motor and rotor are installed in the same heavy-duty base, using coupling direct drive, rotor passes accurate dynamic balancing test, the hammers are arranged symmetrically.

2.Unique Feeding Design, the feeding inlet is made at the side of the device to make feeding easily.

3.The shell is welded by steel plate, the site in the crush room which connects to the materials all use the wearable and commutative parts and double wear plate.

4.Hammers adopts special abrasion resistant treatment technology, extend its lifetime greatly.

5. The multi-functional crusher can achieve ultrafine crushing and meet the fineness requirements of users for different materials.

6. This crusher combines the advantages of mechanical crushing and air flow crushing, has a special structure of the knife type, greatly expands the crushing range, can adapt to a variety of materials crushing needs.

7. Compared with other types of shredders in the same class, the multifunctional crusher is smaller in size and lighter in weight, especially suitable for laboratory use and easy to place on the table.

8.The machine is continuous feeding type, easy to operate, only need to turn on the power to start work, one person can easily operate.

9. Multifunctional crusher can not only crush small wood blocks, branches, roots, waste rubber, PVC foam board, straw, weeds, bamboo products and other materials, but also can crush large diameter pine, miscellaneous wood, poplar, fir, bamboo, and bamboo, thatch, corn stalk, sorghum stalk and other fibrous stalk materials.

10. The design of the multifunctional mill enables efficient crushing operations with low energy consumption, helping to reduce operating costs.

11. The equipment is equipped with a variety of safety protection measures, such as preventing overload, preventing foreign bodies from entering, etc., to ensure the safety of the operator.

12. The structural design of the multi-functional crusher takes into account the convenience of daily maintenance, key components such as flat teeth, round teeth, etc., are easy to replace, and provide detailed maintenance guidelines.

1. Check the parts and fasteners before each use.

2. Replace the screen, wash the crusher should pay attention to avoid water rushing into the motor and control box and bearing, so as not to affect the service life, always pay attention to maintain the cleanliness of the crusher.

3. In order to extend the service life of the bearing, lubricating oil should be added regularly.

4. If there is any abnormal situation in the production, it should be stopped immediately for inspection, and then used after the maintenance is normal

5. The machine is inspected every six months

1. Advanced structure and reliable technology

2. High throughput capacity and high quality chips

3. Low-maintenance and environment-friendly

4. Cost-efficient and space-saving

5. Chipping of all kinds of wood

6. Guaranteed long running time

7. Hydraulic control, simple operation, easy maintenance.

8. High hardness hammer head adopts high temperature quenching heat treatment, uniform hardness, sharp wear-resistant mouth, suitable for a variety of materials.

1. A full range of design, construction, equipment supply, construction, installation supervision and commissioning, staff training;

2. License for the design, construction, installation, wiring, and other works;

3. Full certification of equipment;

4. Officially registered trade mark;

5. Full warranty, post warranty and service;

6. Warranty on all equipment - 13 months;

7. Ratio price-quality-assurance;

8. Vast project experience. we have established and put into operation so many of pellet plant productivity on the finished product from 0.5 to 20 t / h in Malaysia, Thailand, Vietnam, Germany, France, Bulgaria, Serbia, Romania, Korea, Australia etc;

9. Large stock of finished equipment and spare parts;

10. All equipment of our production, equipped with electric motors and gearboxes, that made in big company
