TONY TPX series Straw Cutter is mainly used to crush crop straw wheat stalk, peanut seedlings, sweet potato seedlings, tobacco stalk, cotton stalk, corn stalk, grass, seaweed and various branches and other bundles, piles of materials.TPX series Straw Cutter is composed of frame, rotary cutting, feeding device and overload protection device, the machine is reasonable and simple, and the body is welded with steel forging and cast steel, which is convenient and durable.

The feeding device adopts 40Cr sprocket chain drive rotation, long life is not easy to damage, high efficiency torque, uniform work. The blade of the rotary cutting rotor is sharp, the blade pairing is diversified, and the crushing efficiency is high.It can handle all kinds of bales and branches of different thickness, different length and different moisture content, and has a wide range of water adaptation. The body has four layers, convenient disassembly and transportation.

Components of the straw cutter have a fixed knife and a knife, which can immediately chop the fresh or dry materials in the shape of segments. When the motor rotor of the straw crusher is running at high speed, the material can be disconnected through the gap between the moving knife and the fixed knife, and then the crushed material can be spun out according to the centripetal force.

The machine structure is simple, the body is made of steel plate material, long life is not easy to damage, the rate and torque are large, and the work is uniform. The machine is convenient to move, the feeding part adopts the gear outer chain rotary cutting mode, no dead Angle, the rotary cutting rotor blade is sharp, the blade is diversified, can be rotary cutting a variety of different diameters, different thickness, different length, different water content of straw bales and branches, high breaking rate, wide range of water and adaptation, the body is four layers, disassembly and transportation is convenient. Throw 10 meters away, to avoid injury and other incidents, can be the personal safety of the operator.

Suitable for wheat stalk, peanut seedling, sweet potato seedling, cotton stalk, corn stalk, grass, seaweed and other branches.

TONY TPX series Straw Cutter is mainly used to crush crop straw wheat stalk, peanut seedlings, sweet potato seedlings, tobacco stalk, cotton stalk, corn stalk, grass, seaweed and various branches and other bundles, piles of materials.

1. Turntable can store a large amount of materials to achieve intermittent feeding.

2. The damping plate is provided on the rotating disc, so that the bundle can grip and rotate, and the cutting efficiency is high.

3. High shredding strength, uniform material effect after crushing.

4. Broken in bundles to reduce human labor.

5. The body has four layers, convenient disassembly and transportation.

6. One-button electric control operation, simple and safe, one person can operate.

7. Can install tires and traction devices, walk freely, the work site is not restricted, and the use is more flexible.

8. Two discharging methods, higher and lower discharging, higher discharging is easy to accumulate, lower discharging reduces dust, can be customized according to demand.

9. The whole machine is made of thickened plate, solid and reliable, low maintenance rate and long service life.

10.Automatic lubrication system, automatic time refueling, stable performance.

TONY Straw Cutter Type Model

Model

Power
(Kw)

Capacity
（T/H）

The Number of Blade
(Piece)

The Number of Hammers
(Piece)

Size:L*W*H
(MM)

Weight
(T)

Remarks:
Binding is less than(MM)

TPX2000

55-90

1-5

2

24

2000*2000*2200

4

1800

TPX2500

55-110

1-7

2

24

2500*2500*2200

5

2200

TPX3000

90-160

6-12

2

24

3000*3000*2500

6

2500

As we all know, banning the burning of crop straw is the most effective measure to reduce resource waste and reduce air pollution, and the state also vigorously supports the comprehensive utilization of crop waste, so how should we conduct comprehensive utilization of a large number of stalks? This is the use of TONY rotary cutting machine, after the rotary cutting machine after the straw has many uses, such as ploughing into the soil, decomposition to improve the soil structure; Feed processing, as an important source of roughage for herbivorous livestock; As the carbon source of edible fungi, as the base material to cultivate edible fungi; Processed with adhesive mixture to produce wood-based panels, furniture, packaging materials, etc. In addition, agricultural straw is still a good clean renewable energy, crushed and processed into biomass particles, replacing traditional coal, reducing harmful gas emissions to protect the environment, link energy supply shortage situation, improve the quality of life.

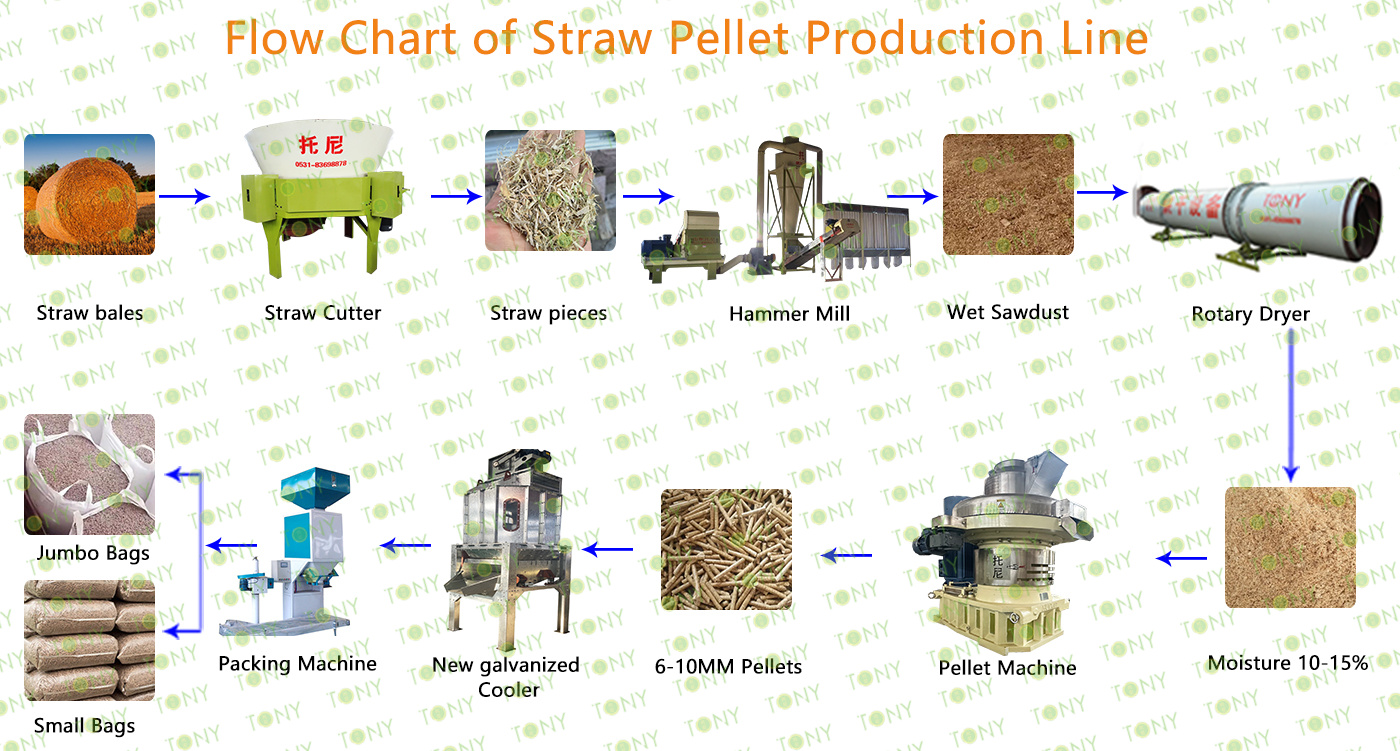

TONY have a full line of biomass pellet processing equipment, including crushing equipment, crushing equipment, drying equipment, granulation equipment and cooling packaging and other auxiliary equipment,TONY Straw Cutter is a very important crushing equipment in the granulation process, if you are interested, you can contact us at any time to consult.
